FRONT AXLE (4X2)
11
FRONT AXLE
(4X2)

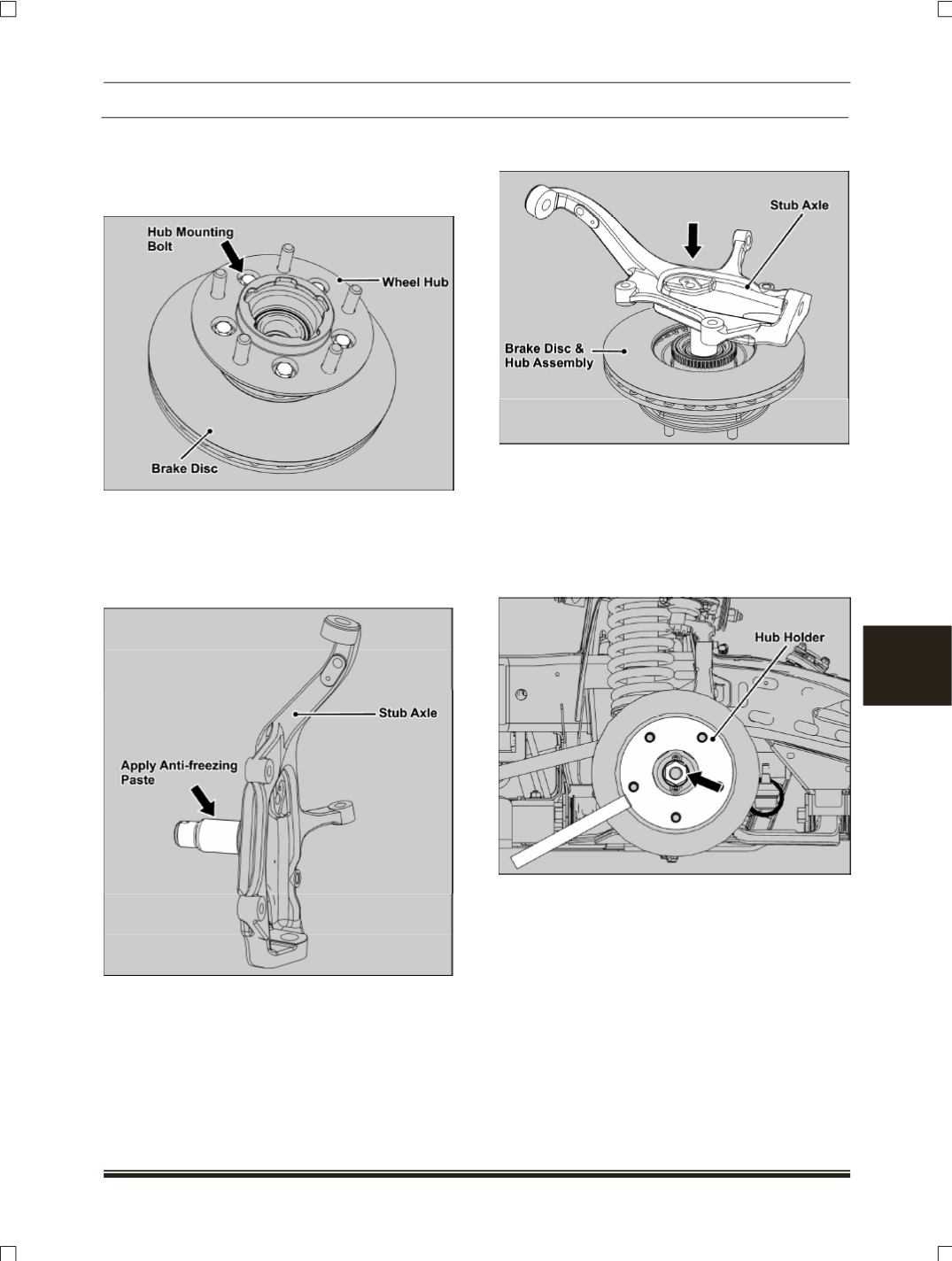

INSTALLATION OF WHEEL HUB ON STUB AXLE
1. Mount brake disc on wheel hub and tighten brake
disc mounting bolts to specified torque
(6.5 ± 1
Kg-m).
NOTE
Before assembly of wheel hub and brake disc on
stub axle, antifreeting paste LGAF 3E SKF (Part no.
5511 0869532) to be applied over the stub axle shaft
at bearing seating surface using brush.
2. Assemble brake disc and wheel hub assembly on
stub axle with the help of press
.
3. Install stub axle with wheel hub and brake disc
assembly on vehicle
(For procedure refer stub
axle installation).
4. Hold the wheel hub assembly using hub holder
(Part No 2870 5890 33 16)
and tighten the hex
nut to 40 Kgm torque. Lock the nut by punching
the collar of the nut into the groove.
NOTE
Do not reuse the hex nut, use new one at the time of
assembly.
