FRONT AXLE (4X2)

5

FRONT AXLE

(4X2)

4.5.1.2 MAINTENANCE

4.5.1.2.1 ON VEHICLE PROCEUDRE

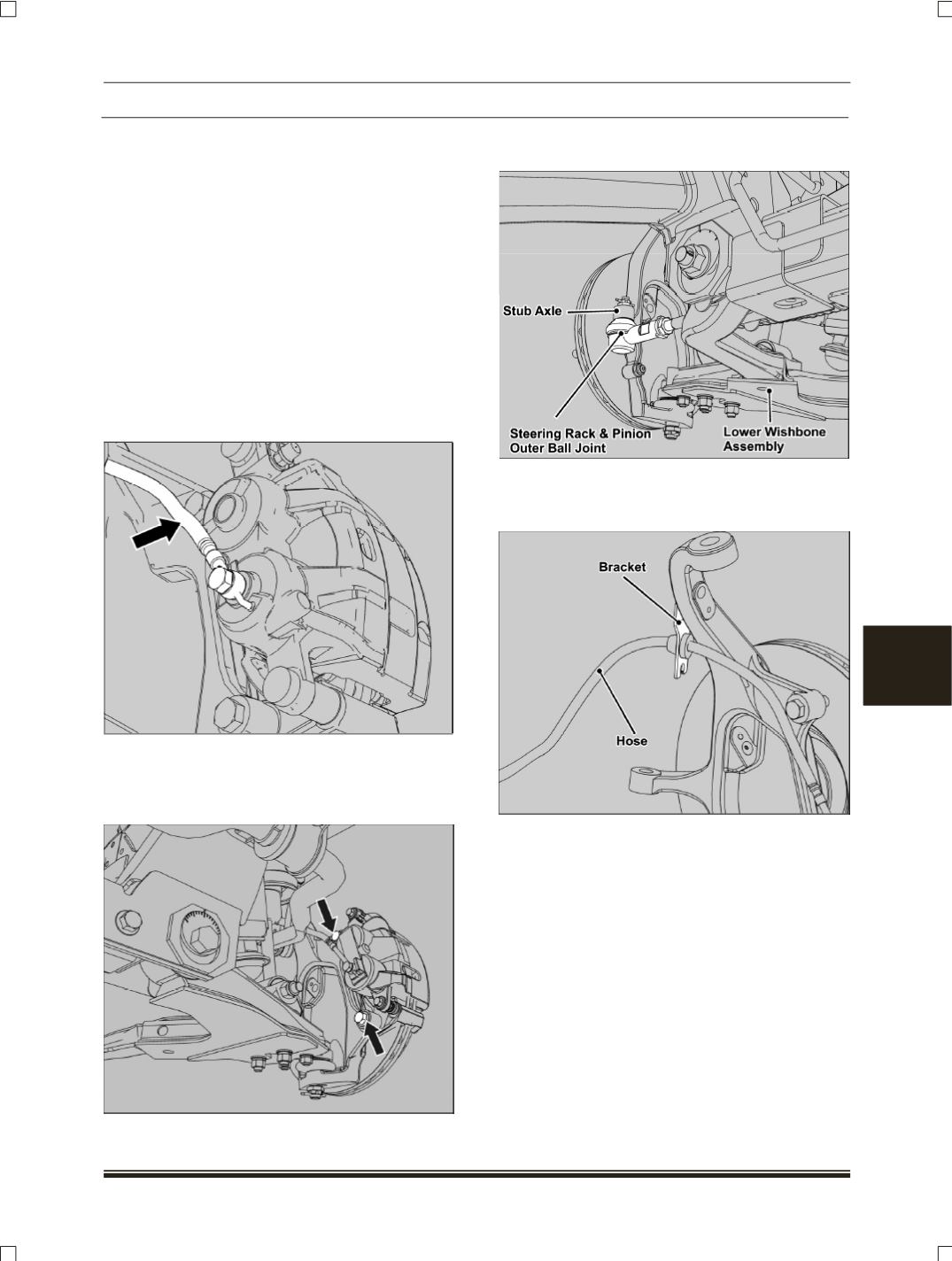

A. FRONT STUB AXLE ASSEMBLY

REMOVAL

1. Hoist the vehicle on two post lift and remove the

front wheel.

2. Remove the stone guard (

For procedure refer

Body section

)

3. Remove front wheel speed sensor.(

For procedure

refer ABS section

)

NOTE

Don’t remove hydraulic brake line connected to

Brake caliper assembly.

4. Loosen & remove mounting bolts of front brake

caliper assembly with carrier & remove the brake

caliper assembly and hang it suitably.(

For

procedure refer Brakes section

)

5. Disconnect steering rack & pinion OBJ end from

stub axle. (

For procedure refer Steering section

)

6. Remove the bracket of brake hose mounting

along with the brake hose from the stub axle

assembly.
