FRONT AXLE (4X4)
41
FRONT AXLE
(4X4)

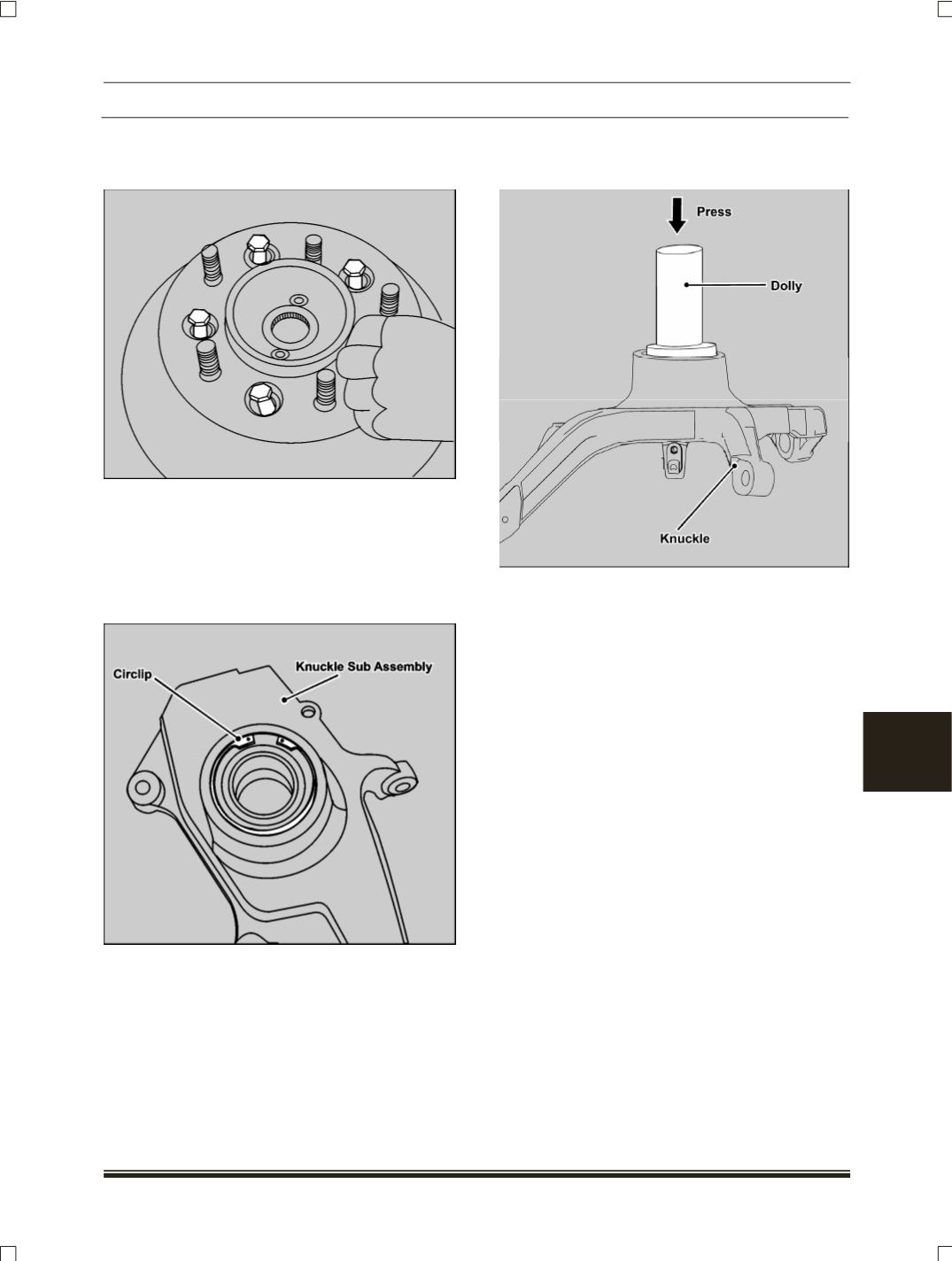

6. Lock the wheel bolts on the spindle suitably with-
out damaging the threads and remove the bolts
connecting brake disc and spindle.
7. Tap the brake disc with nylon mallet and separate
the spindle and brake disc.
8. Strike with the mallet and remove the wheel bolts
from spindle.
9. Take the Knuckle sub assembly and remove the
circlip with the help of circlip plier.
10.Mount the knuckle on the press machine and re-
move the bearing from knuckle using bearing
pressing dolly.
(Part No.287058903313)
NOTE
Ensure that bearing is not damaged while remov-
ing from the knuckle.
Ensure Circlip is removed prior to remove the
bearing as bearing comes out from circlip side of
knuckle.
