FRONT AXLE (4X4)
23
FRONT AXLE
(4X4)

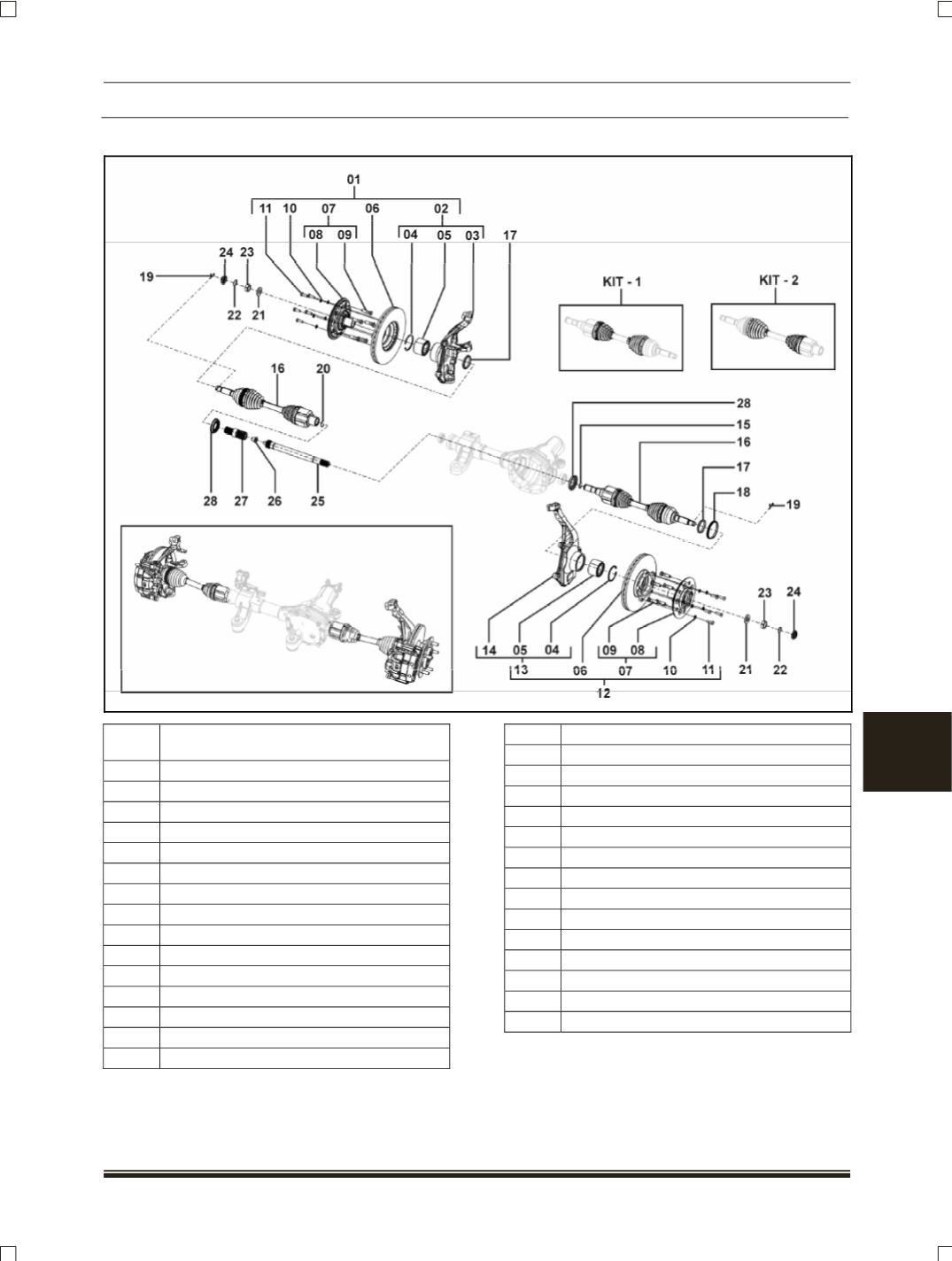

C. WHEEL END / STUB AXLE
SR
NO. DESCRIPTION
01
Knuckle assembly
02
Knuckle sub assembly
03
Knuckle - steering
04
Ring – snap
05
Bearing and seal assembly
06
Brake disc
(Ventilated)
07
Spindle assembly
08
Spindle - wheel bearing fin
09
Wheel bolt
10
Lock washer
11
Screw - drive gear
12
Knuckle assembly
13
Knuckle sub assembly
14
Knuckle - steering
15
Ring snap
16
Shaft and joint assembly
17
Slinger – dust
18
Toner ring
19
Chart pin
(Roll or cotter)
20
Ring snap
21
Washer – flat
22
Spring - wave washer
23
Nut hex pinion
24
Retainer nut
25
Shaft - intermediate fin
26
Bushing – synthetic
27
Shaft - axle fin
28
Seal oil tube
Kit-1 Kit - boot and clamp LH
Kit-2 Kit - boot and clamp RH
