REAR SUSPENSION
40

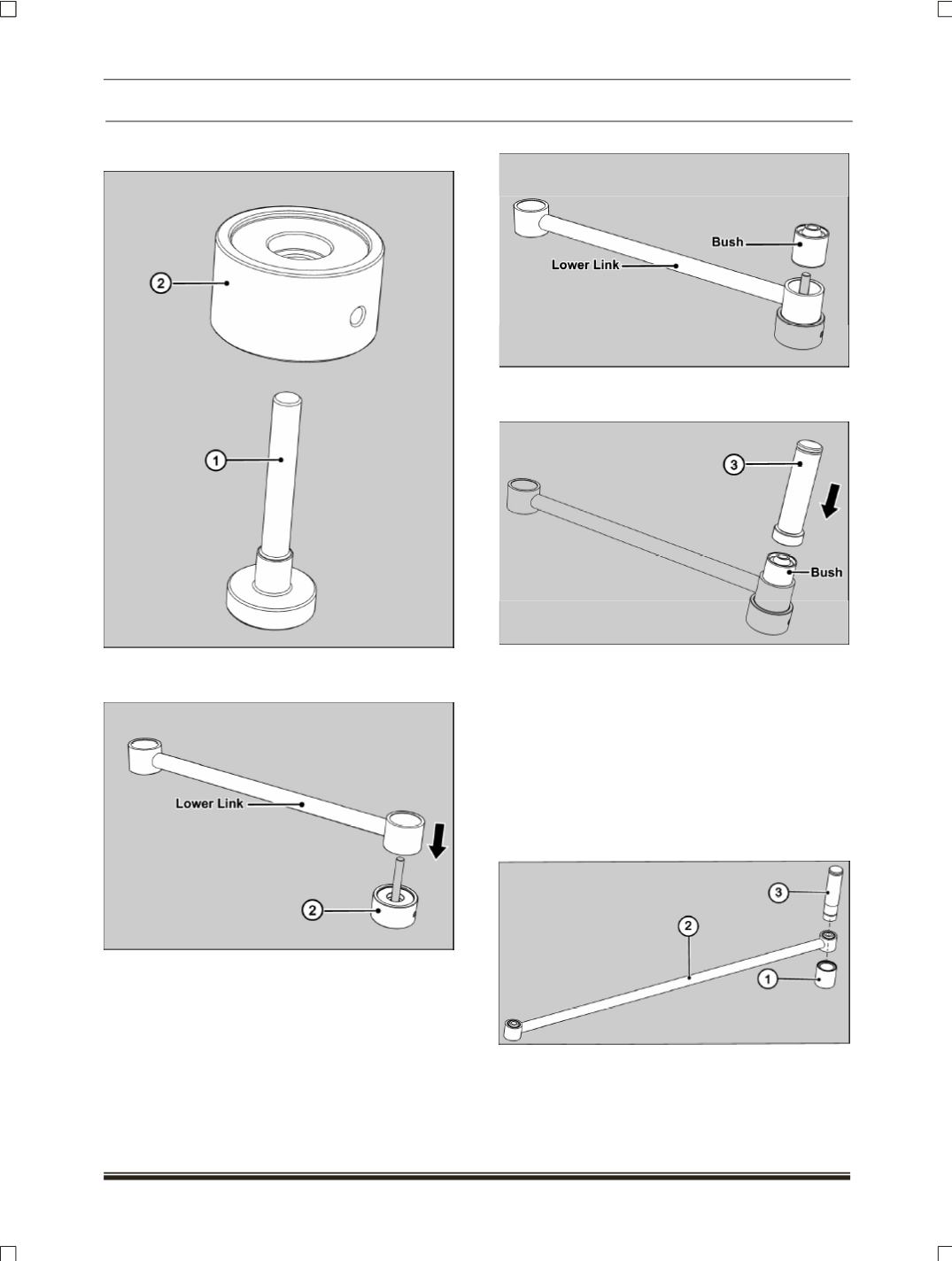

2. Place the guide bush
(1
) and mount the bush
support
(2)
on the guide bush
(1
).
3. Place the lower link guide bush housing onto the
support
(2)
and mount the bush over the housing.
4. Mount the bush over the housing.
5. Place the drift
(3)
above the bush and press it
using press machine.
NOTE
Apply soap and water to the bush, the inner surface
of the tool and the bore of assembly lower link before
installation
.
C. PAN HARD ROD BUSH
REMOVAL
1. Remove the Pan Hard Rod bush using special
tool assembly
(Part No.2870 5890 01 10)
as
shown in below arrangement.
2.
Mount the Pan Hard Rod
(2)
bush housing on to
the support
(1)
