FRONT SUSPENSION
19
FRONT
SUSPENSION

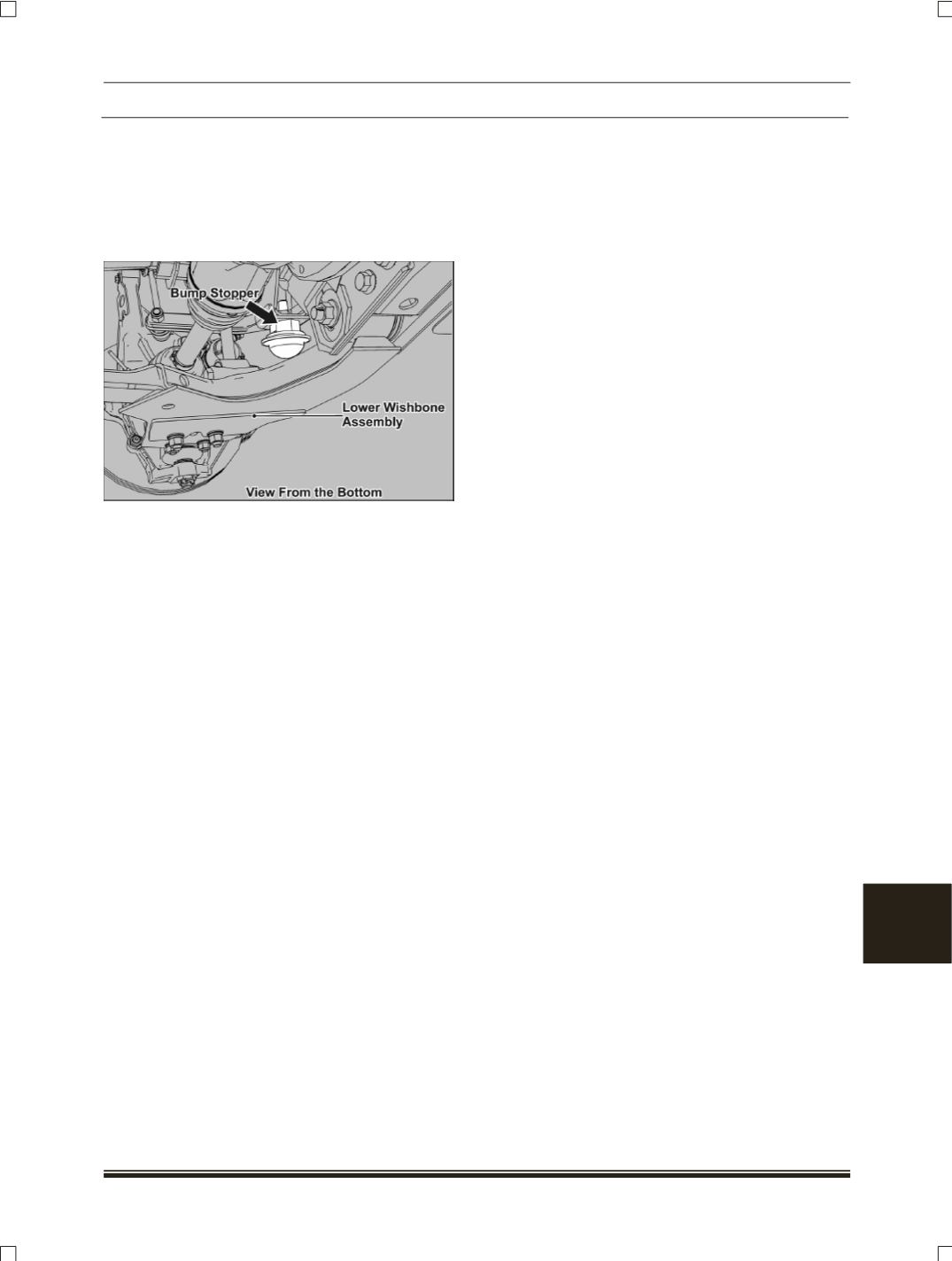

E. BUMP STOPPER
REMOVAL
Bump stopper is mounted on the frame. Loosen
and remove the bump stopper and separate the
same from the frame.
Follow the same
procedure for other stopper also.
FITMENT
For fitment tighten the stopper assembly on the
frame.
NOTE
Make sure that the specified torque is always
maintained. Refer tightening torque table.
Check condition of bump stopper for any cracks
chipping, wear and tear before fitment.
5.1.3 OVERHAULING
5.1.3.1 PRECAUTIONS
1. Since all suspension fasteners are critical in
suspension attachments with regard to
performance and safety of vehicle, these must
be replaced with one of the same part number
in case of replacement.
2. Torque values must be maintained as specified
during reassembly for proper retention of the
parts. The replacement parts should be of the
same quality as of the designed parts.
3. Damaged parts should be replaced only with
new parts. Welding, straightening or any other
form of repairing should not be attempted.
4. Lower arm bushes are to be aligned properly
while fitment.
5. Care should be taken while handling spring
loaded suspension components.
