GEAR BOX

40

C. REVERSE IDLER SHAFT

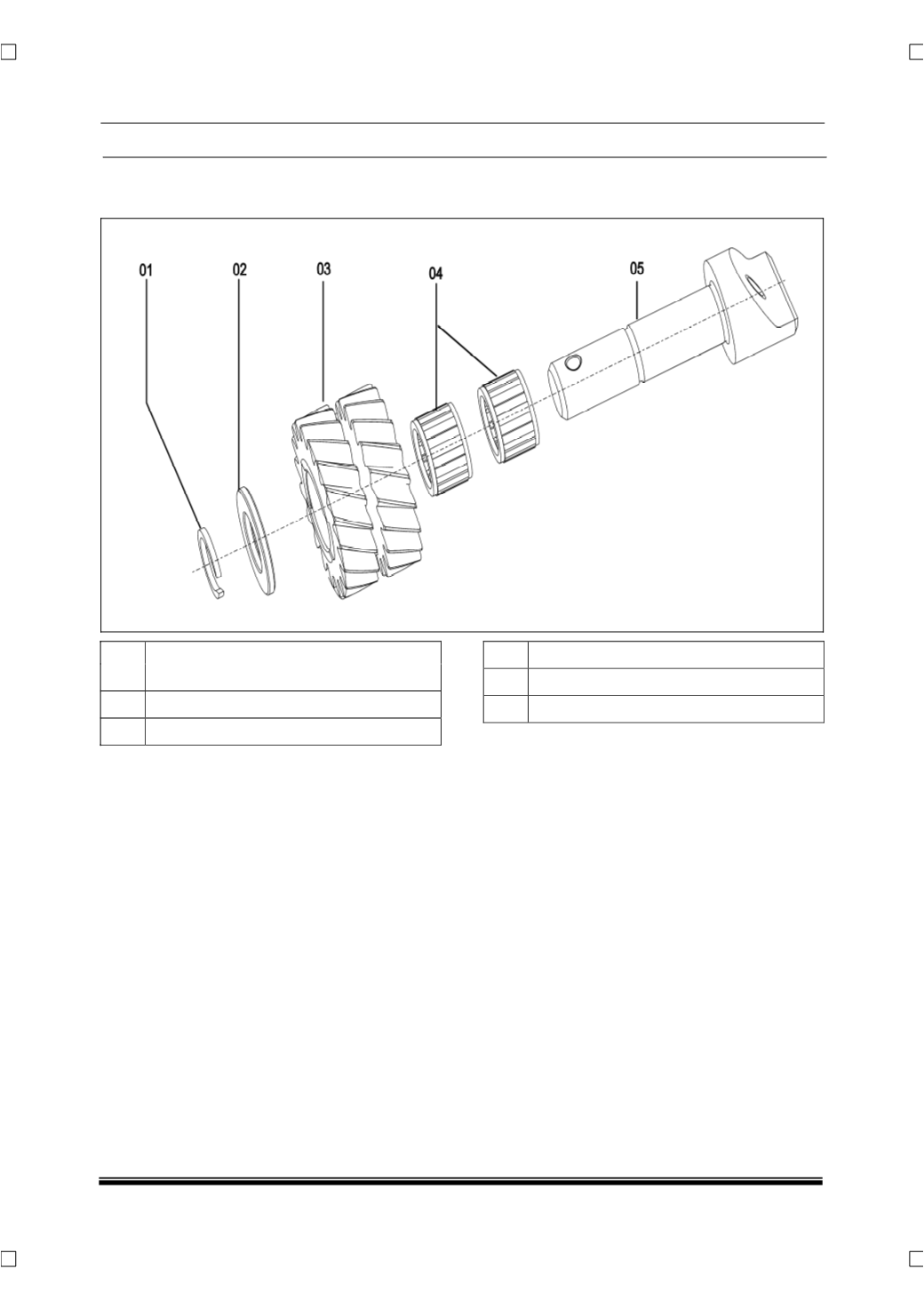

CONSTRUCTIONAL DETAILS

SR.

NO

DESCRIPTION

01

Snap ring

02

Spacer

03

Reverse idler gear

04

Needle cage

05

Reverse idler gear shaft
