SAFARI STORME MY14

CLUTCH

CONCENTRIC SLAVE CYLINDER

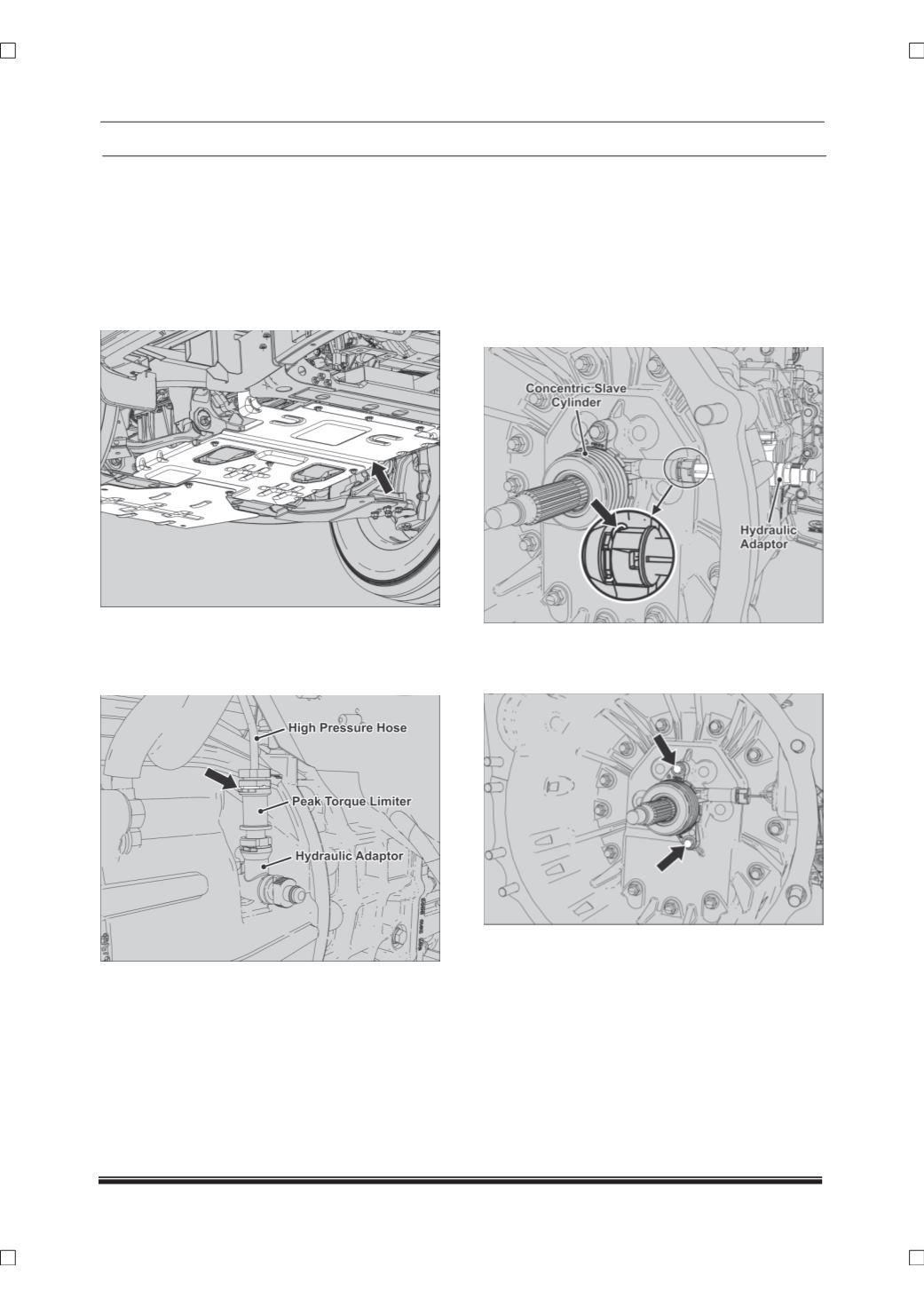

REMOVAL

1. Disconnect battery connection.

2. Remove the stone guard and drain the clutch

fluid from the hydraulic adapter.

(For

procedure refer clutch fluid draining procedure

in this section.)

3. Pull out the clip using a screw driver and

disconnect the high pressure line from peak

torque limiter

by pulling it out. Also remove the

peak torque limiter in similar way.

4. Lower the gearbox from the vehicle.

(For

procedure refer gearbox removal in Gearbox

section.)

5. Pull out the clip using a screw driver and

disconnect the hydraulic adapter from the

concentric slave cylinder

(CSC)

by pulling it

out.

!! WARNING

Small quantity of fluid will be present in the

concentric salve cylinder and hydraulic adapter;

therefore care should be taken that fluid does not

fall in the housing.

6. Loosen and remove concentric slave cylinder

(CSC)

mounting bolts

(2 Nos.)

from the clutch

housing.

! CAUTION

Plug the opening with suitable cap to avoid

entrance of any contaminations and dirt in the

concentric slave cylinder.

Flush the connecting parts/hose with clean

clutch fluid before assembly to prevent

contamination of the new cylinder.
