CLUTCH
18

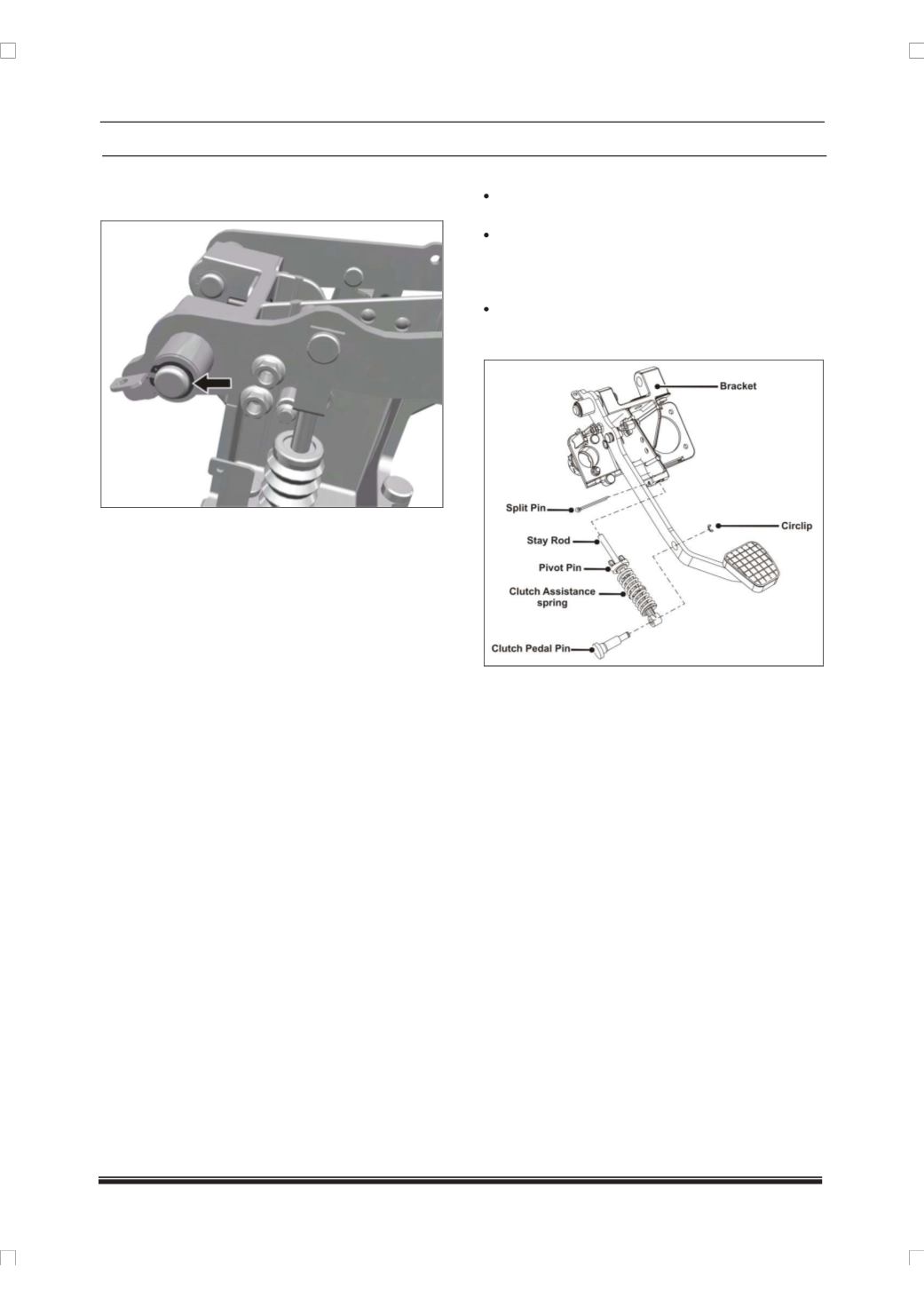

7. Remove the external circlip and slide the clutch
pedal lever with its bushes to remove the clutch
pedal from the control bracket pin.
FITMENT
For fitment follow the reverse procedure of
removal.
STAY ROD ASSEMBLY PROCEDURE
Assemble the clutch assistance spring followed
by pivot pin on the stay rod.
Insert the stay rod assembly in the control
bracket, press the clutch pedal downwards and
apply sufficient pressure to compress the
spring.
Keeping the spring compressed, insert the stay
rod assembly into the clutch pedal pin and
press the circlip to lock the stay rod assembly.
CAUTION:
1. The pin should be free of any rust or paint or
dent marks. If found the same need to be
cleaned.
2. The pin needs to be properly lubricated with
Grease (Grease 3%MoS2, SS: 6820-320, TS:
25205PI) before mounting the stay rod on
pedal again.
3. The stay rod should have free rotational /
swiveling movement about pin axis during
pedal movement.
4. Before fitment of stay rod insure that pivot pin
is properly lubricated with grease (Grease
3%MoS2, SS: 6820-320, TS: 25205PI).
