3.1.2.3 REPAIRS

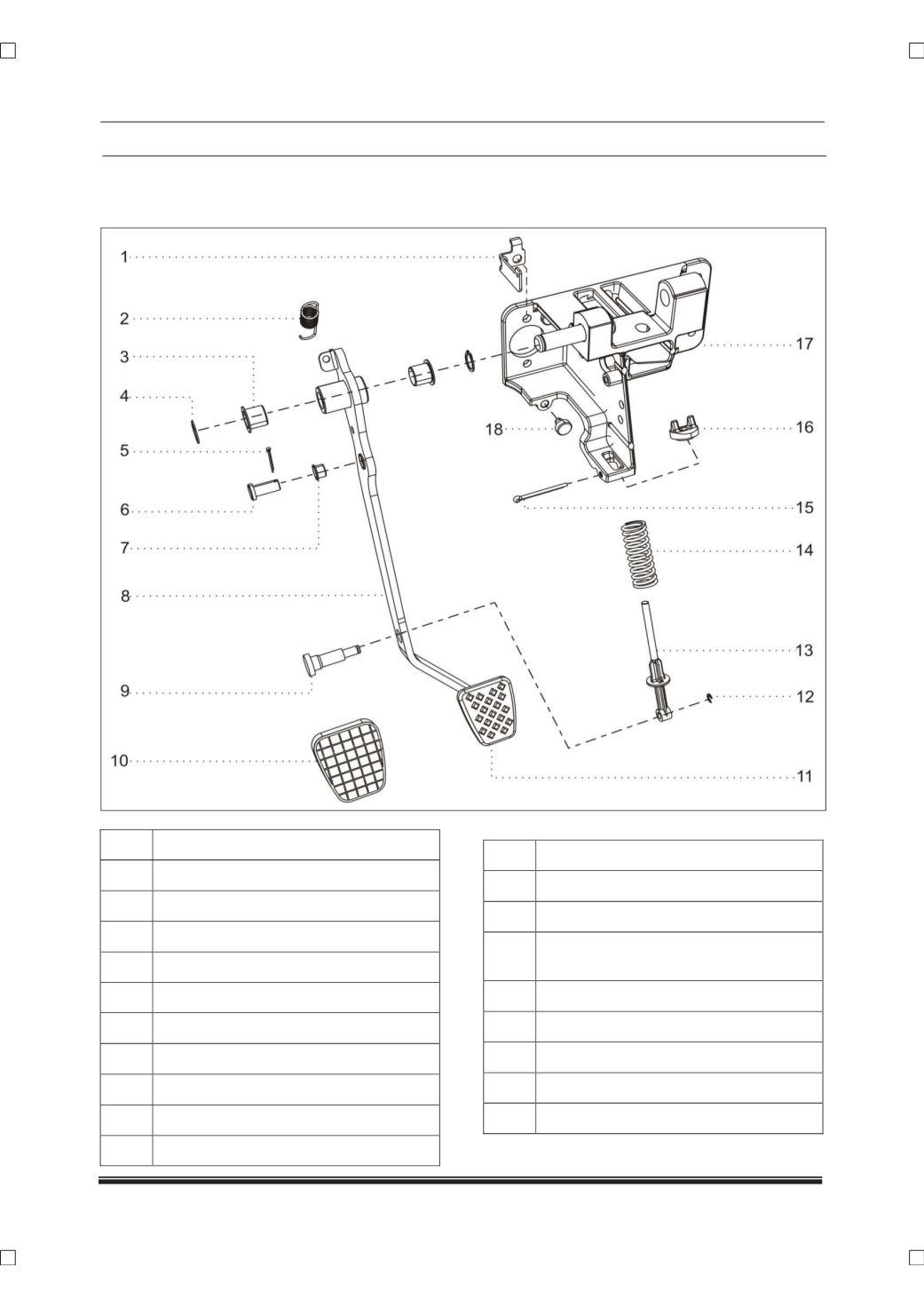

3.1.2.3.1 CLUTCH PEDAL ASSEMBLY
ITEM
DESCRIPTION
01
Clutch Return Spring Bracket
02
Clutch Return Spring
03
Pivot Bush
04
External Circlip
05
Split Pin
06
Pin
07
Bush - Clutch Control
08
Assy. Clutch Pedal
09
Pin - For Clutch Asst Spring
10
Rubber Cover - Pedal Plate
ITEM
DESCRIPTION
11
Pedal Plate
12
Circlip
13
Stay Rod For Clutch Assistance
(White Color)
14
Assistance Spring
15
Split Pin 4X45
16
Pivot Pin
17
Assy. Control Mounting Bracket
18
Stopper Pin
