1120 / 1236
BODY
60

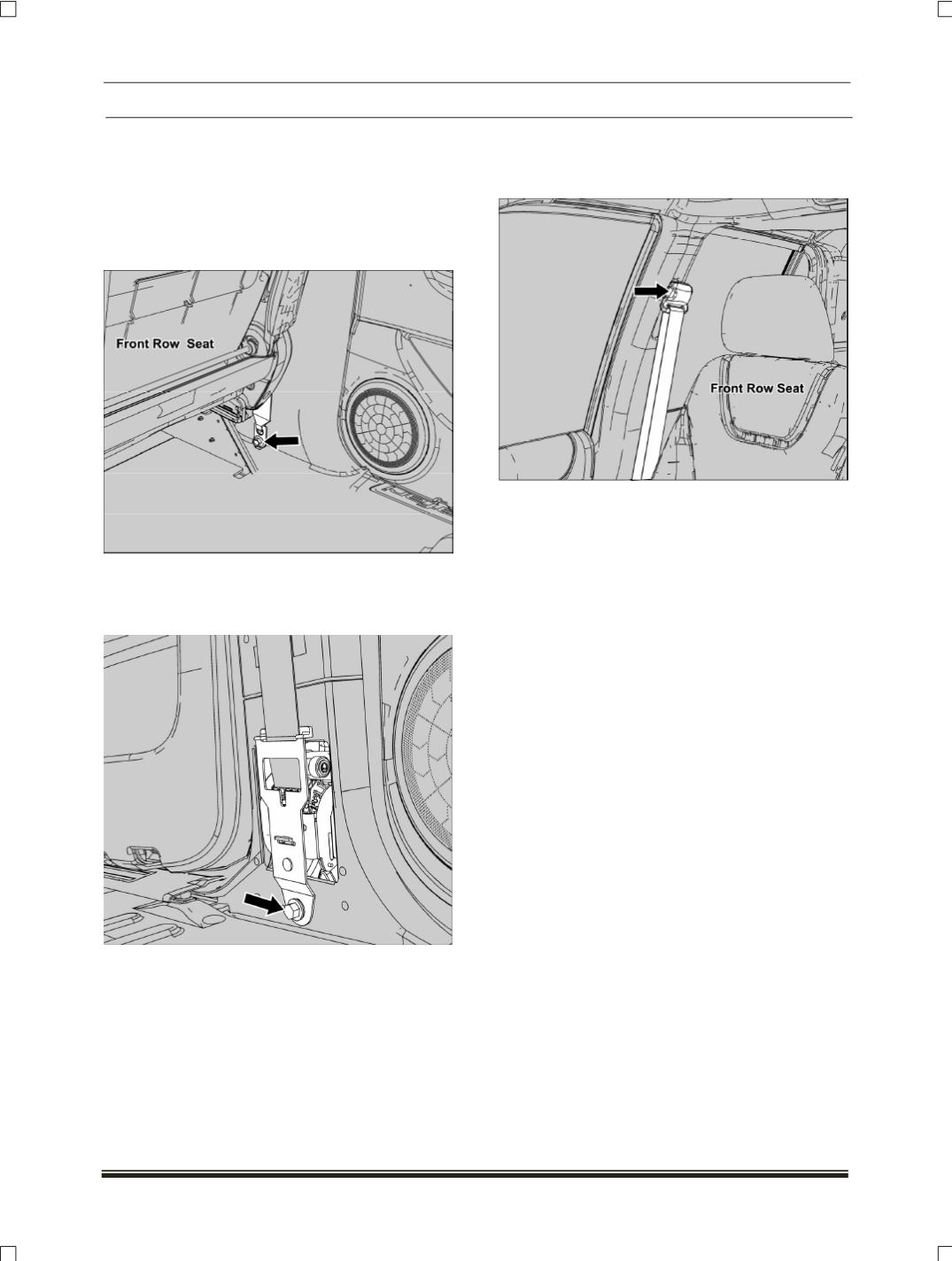

FRONT ROW SEAT BELT
REMOVAL
1. Fold the front seat to have easy access for the
belt removal.
2. Loosen and remove the lower mounting bolt of
seat belt.
3. Remove “B” pillar trim.
(For procedure refer “B”
pillar trim removal procedure in this section.)
4. Remove the RPLL mounting bolt
5. Disconnect the electrical connector of RPLL.
6. Remove the top cover and loosen and remove
the mounting bolt below it and take out the belt
assembly.
FITMENT
For fitment follow reverse procedure of removal.
