SUPPLEMENTARY RESTRAINT SYSTEM (SRS)
23
SRS

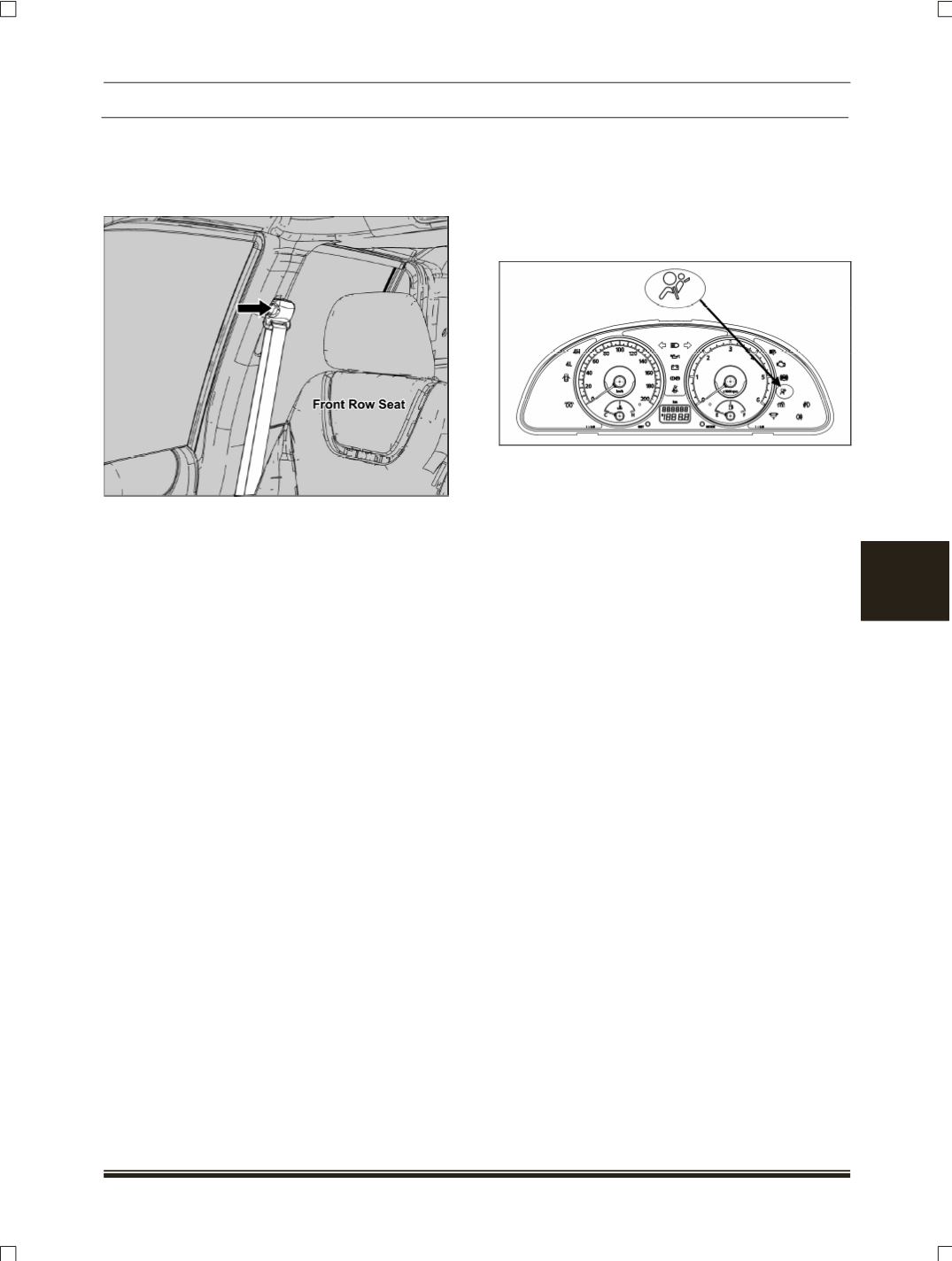

7. Remove the top cover. Loosen and remove the
upper mounting bolt of seat belt assembly and
take out the seat belt assembly along with the
RPLL.
FITMENT
For fitment follow reverse procedure of removal.
11.1.6.2.6 SRS WARNING LAMP
It warns the vehicle driver when the air bag electrical
system malfunctions which could potentially affect
the operation of the air bag system. These malfunc-
tions could result in unintended performance of the
system.
A warning light should never come
ON
unless there
is a fault in vehicle's air bag system
(Supplementary
restraint system or SRS).
The air bag control module
(ECU)
runs a self-check every ignition cycle. If it
finds a fault in a crash sensor, in one of the restraint
components, the wiring or itself, it will set a code,
turn on the warning light. In such cases restraints
components and system performance could be com-
promised.
NOTE
For warning light disable conditions refer DTC codes.
LOCATION
The “AIR BAG” warning lamp is located in the in-
strument cluster and controlled by SRS ECU
