SUPPLEMENTARY RESTRAINT SYSTEM (SRS)
19
SRS

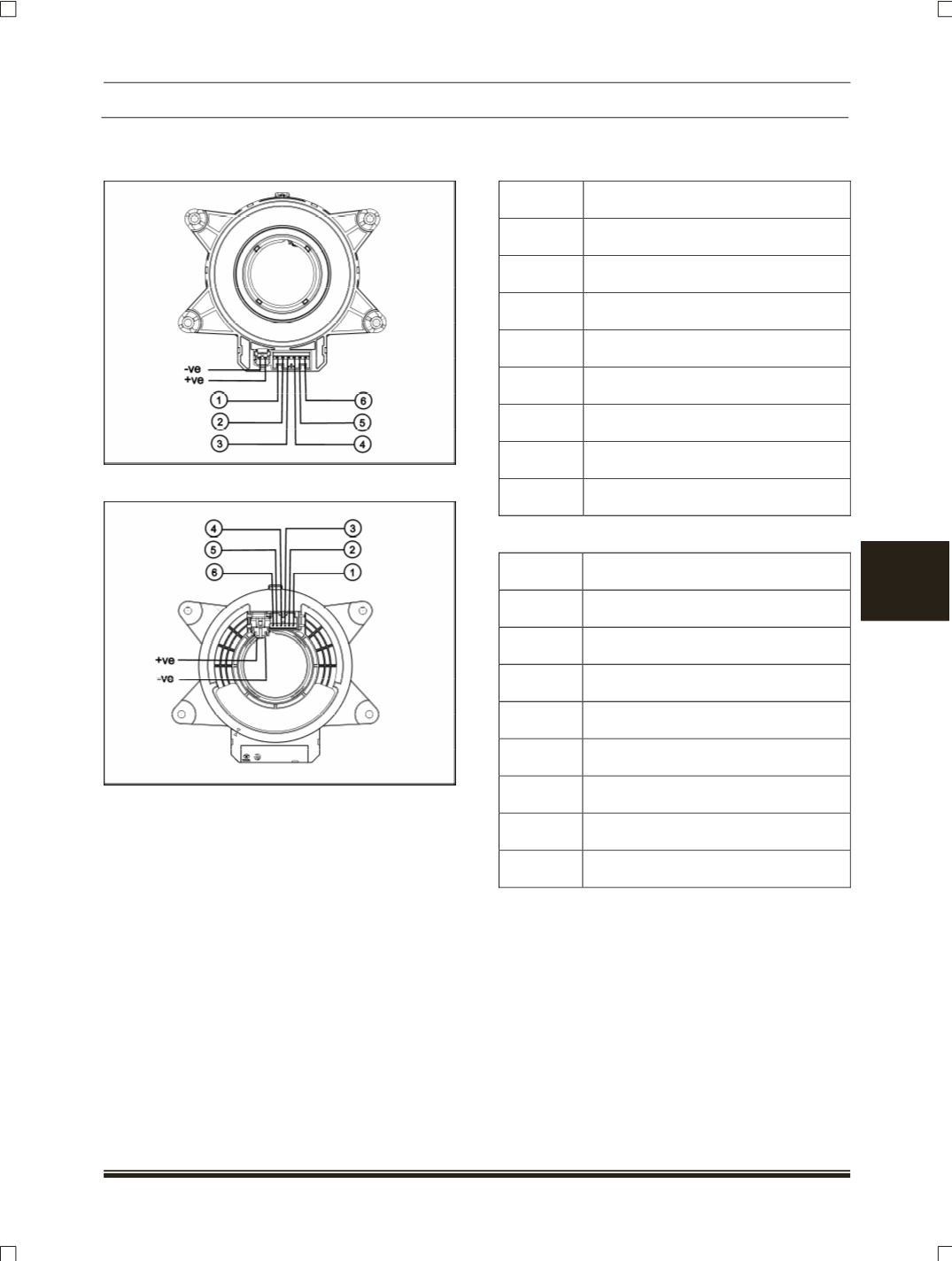

CONNECTOR
A.
BOTTOM SIDE CONNECTOR
B. TOP SIDE CONNECTOR
PINOUT
A. BOTTOM SIDE CONNECTOR
TRACK
FUNCTION
– VE
Air Bag
+ VE
Air Bag
1
Horn Switch (Ground)
2
Horn Switch (+Ve)
3
Not used
4
Not used
5
Not used
6
Not used
B. TOP SIDE CONNECTOR
TRACK
FUNCTION
– VE
Air Bag
+ VE
Air Bag
1
Horn Switch (Ground)
2
Horn Switch (+Ve)
3
Not used
4
Not used
5
Not used
6
Not used
