SAFARI

142

ENGINE2.2LDICOR

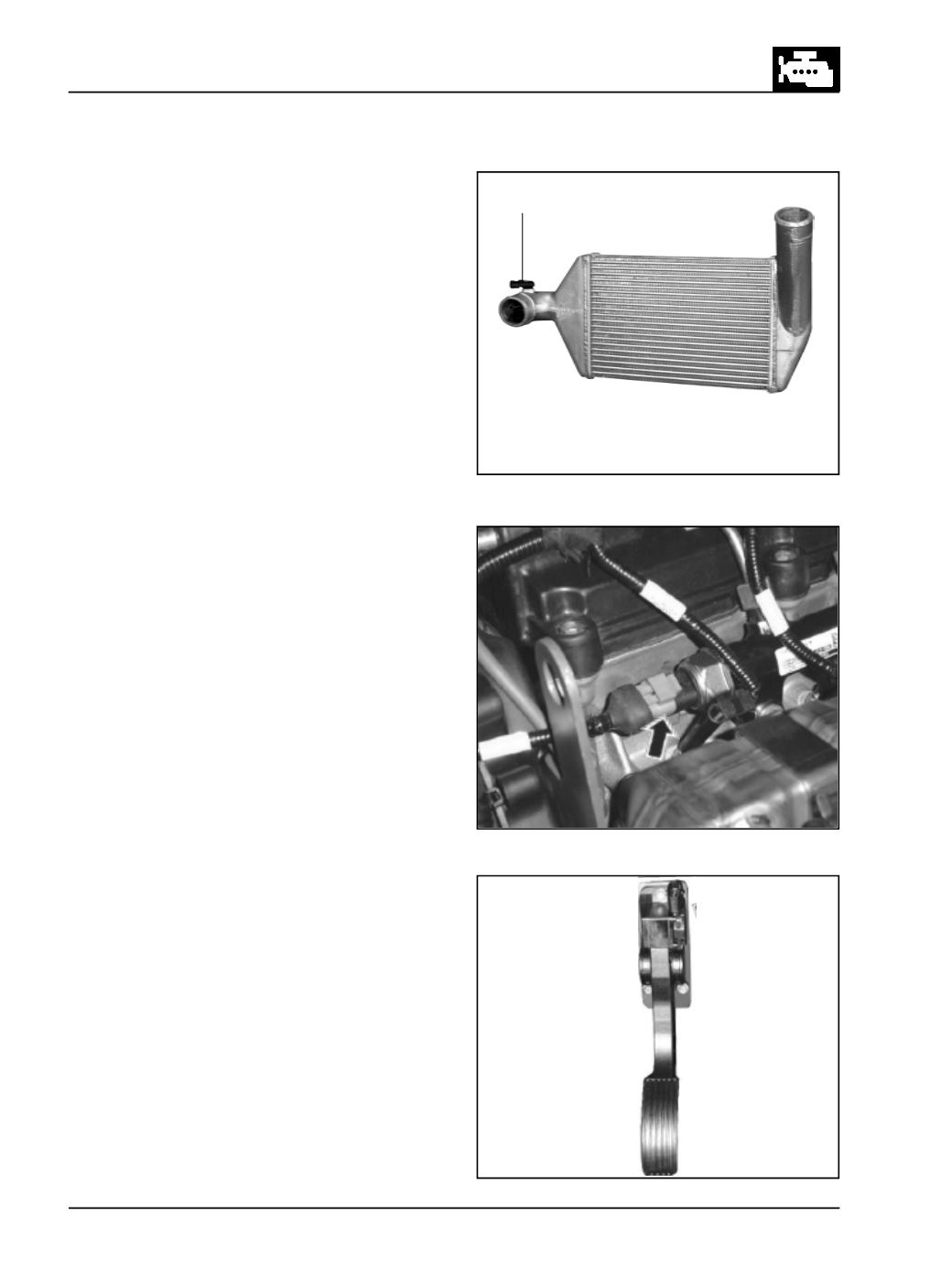

Fig. 232

Fig. 233

Fig. 234

Boost pressure sensor

10. Boost pressureSensor

(Fig. 232)

This sensor provides accurate air pressure value

to ECU. This is located on the inter cooler unit.

11. Rail PressureSensor

(Fig.233)

This sensor is fitted on the fuel rail and gives a

close loop control of the rail pressure. Fuel is

maintained at a high pressure in the fuel rail

depending on requirement of the engine.

12. Throttle Pedal sensor

(Fig. 234)

This sensor tells the ECU about the position of the

accelerator pedal. This input is used to determine

the torque required to drive the vehicle which in

turn determines the requirement of fuel quantity.

This is a dual potentiometer sensor for the safety

& correct inputs (Driver's request/Throttle

position) to ECU.

ThrottlePedal sensor checkingvalues

1.25K ohm +/- 20% between terminals 1 & 5

0.9K ohm +/- 20% between terminals 2 & 4
