ENGINE2.2LDICOR

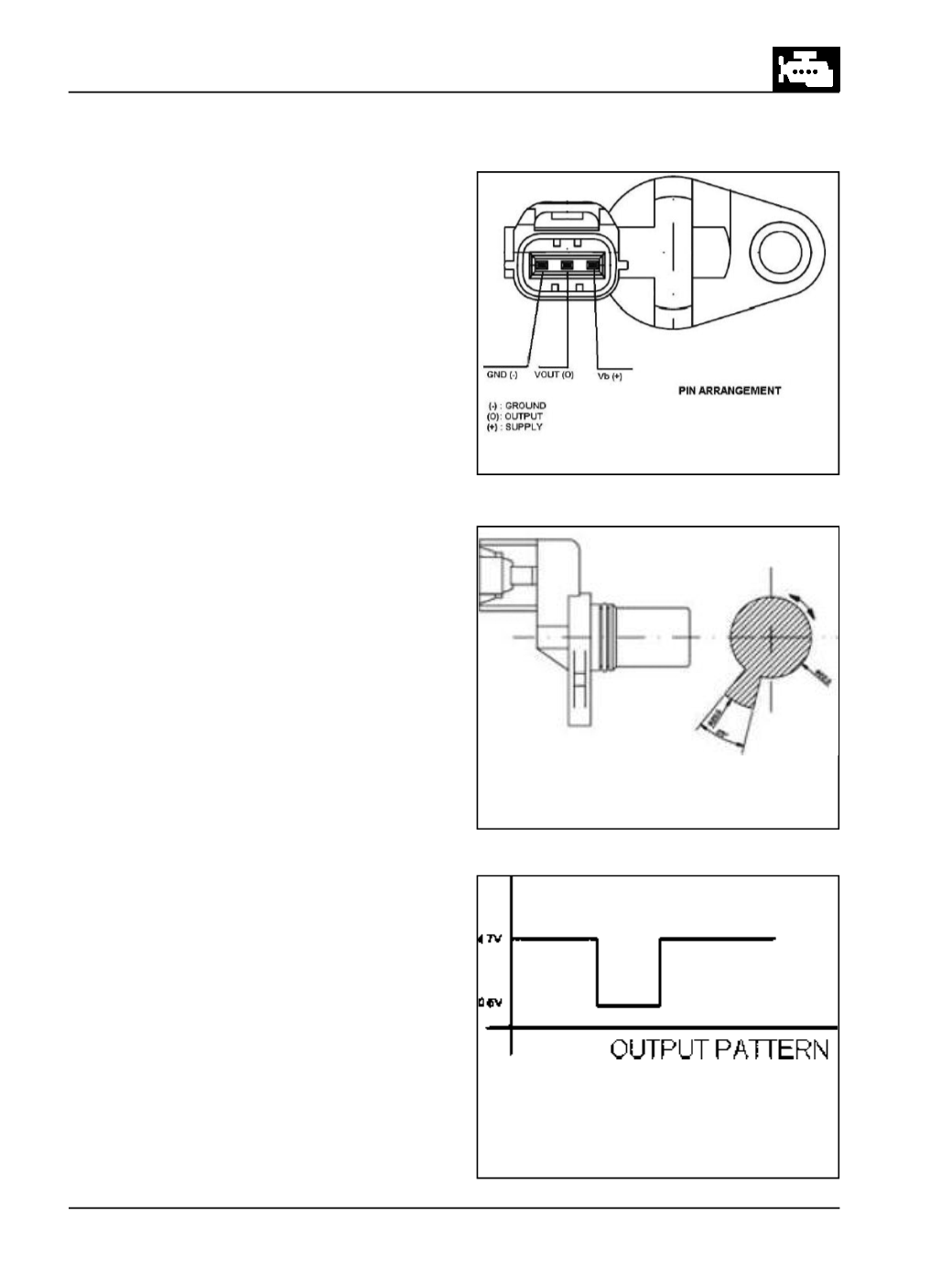

Cam phase sensor
(Fig. 238, 239, 240)
PinAssignment
Equipment
: Use Multimeter
Power Supply
: 5V
Checking
: With Ingnition 'ON',
Condition
Voltage between GND and
Vout
Signal Voltage
: 4.7V
(When the Flag is not in front
of the sensor)
: 0.6V
(When the Flag is in front of
the sensor)
StandAloneDiagnosis /Sensorcheckingprocedure
Fig. 238
Fig. 239
Fig. 240
