ENGINE2.2LDICOR
Fig. 142
Fig. 143
Fig. 144
Fig. 145

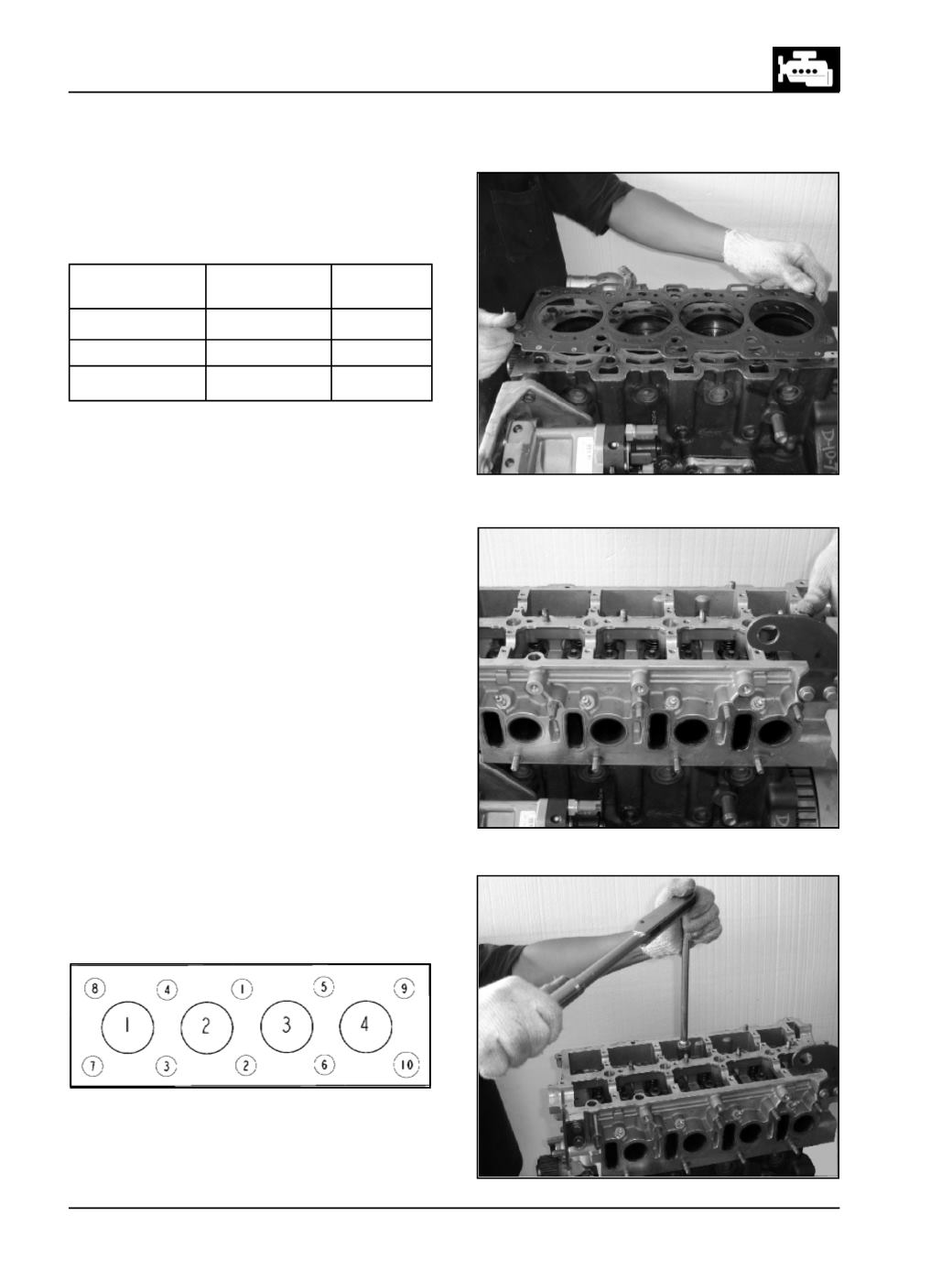

AssemblyofCylinderHeadonCylinderBlock
l
Based on the piston projection / protrusion values
above crank case, select correct thickness of
cylinder head gasket. Refer the table (Fig. 142)
l
Install cylinder head on cylinder block, by locating
the dowels properly (Fig. 143)
l
Tighten the cylinder head mounting screw's (Fig.
144) to specified torque in the proper sequence
as shown below (Fig. 145)
Cylinder headmounting bolt tightening sequence:
Pistion projection gasket thickness Identification
(mm)
(mm)
0.56 to 0.64
1.3
1 Notch
0.65 to 0.73
1.4
2 Notches
0.74 to 0.82
1.5
3 Notches
