ENGINE2.2LDICOR
l

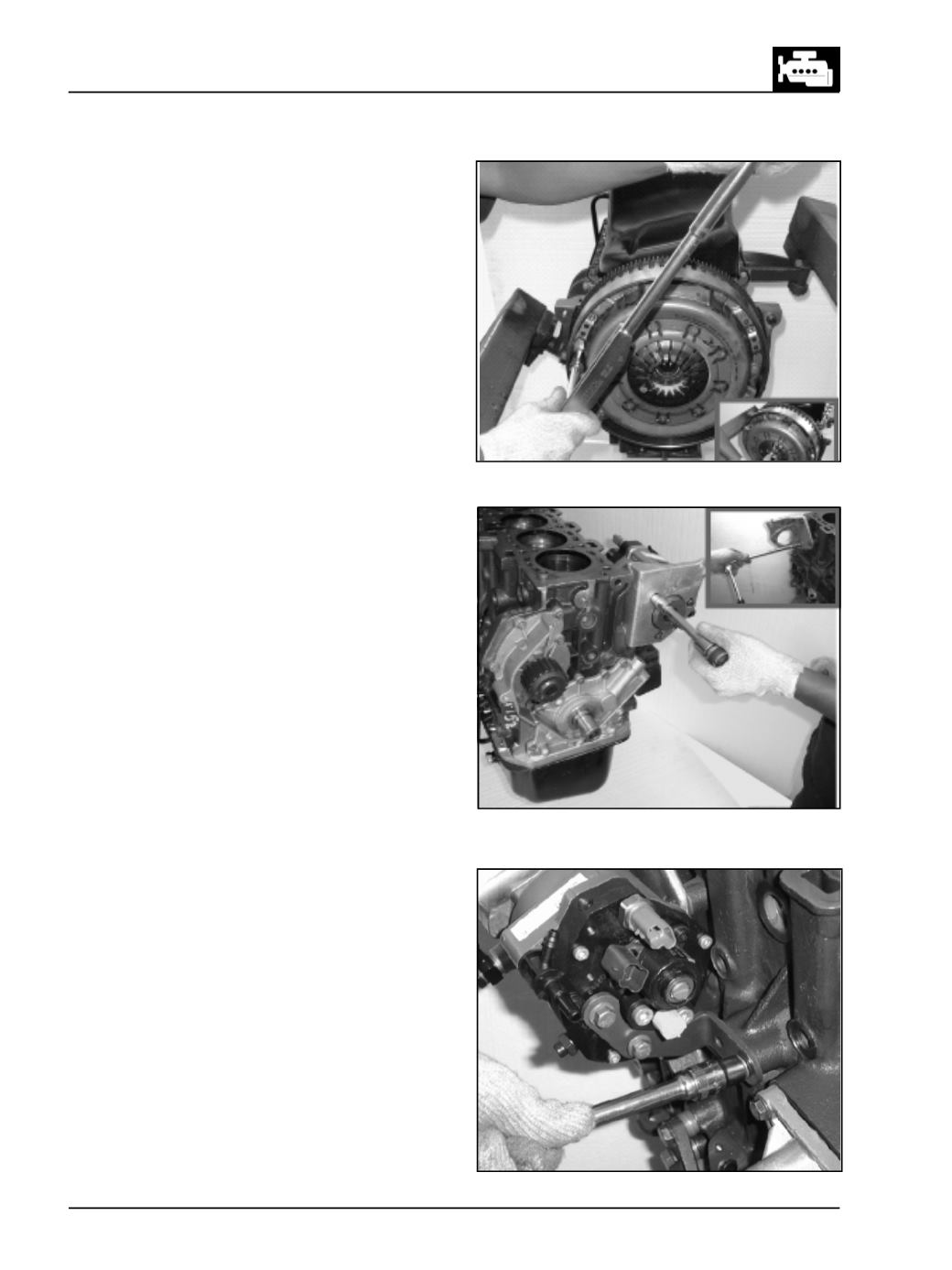

Assemble clutch plate pressure plate assembly &
align the clutch plate using mandrel.
l
Tighten the clutch pressure plate assembly
mounting bolts to specified torque. (Fig. 137)
Fig. 137
l
Fit the HP pump mounting bracket & assemble
the HP pump (With the rear mounting bracket
fitted). (Fig. 138)
l
Tighten the HP Pump mounting bolts to the
specified torque. (Fig. 139)
Fig. 138
Fig. 139
