SAFARI

AIR BAGS

SRS

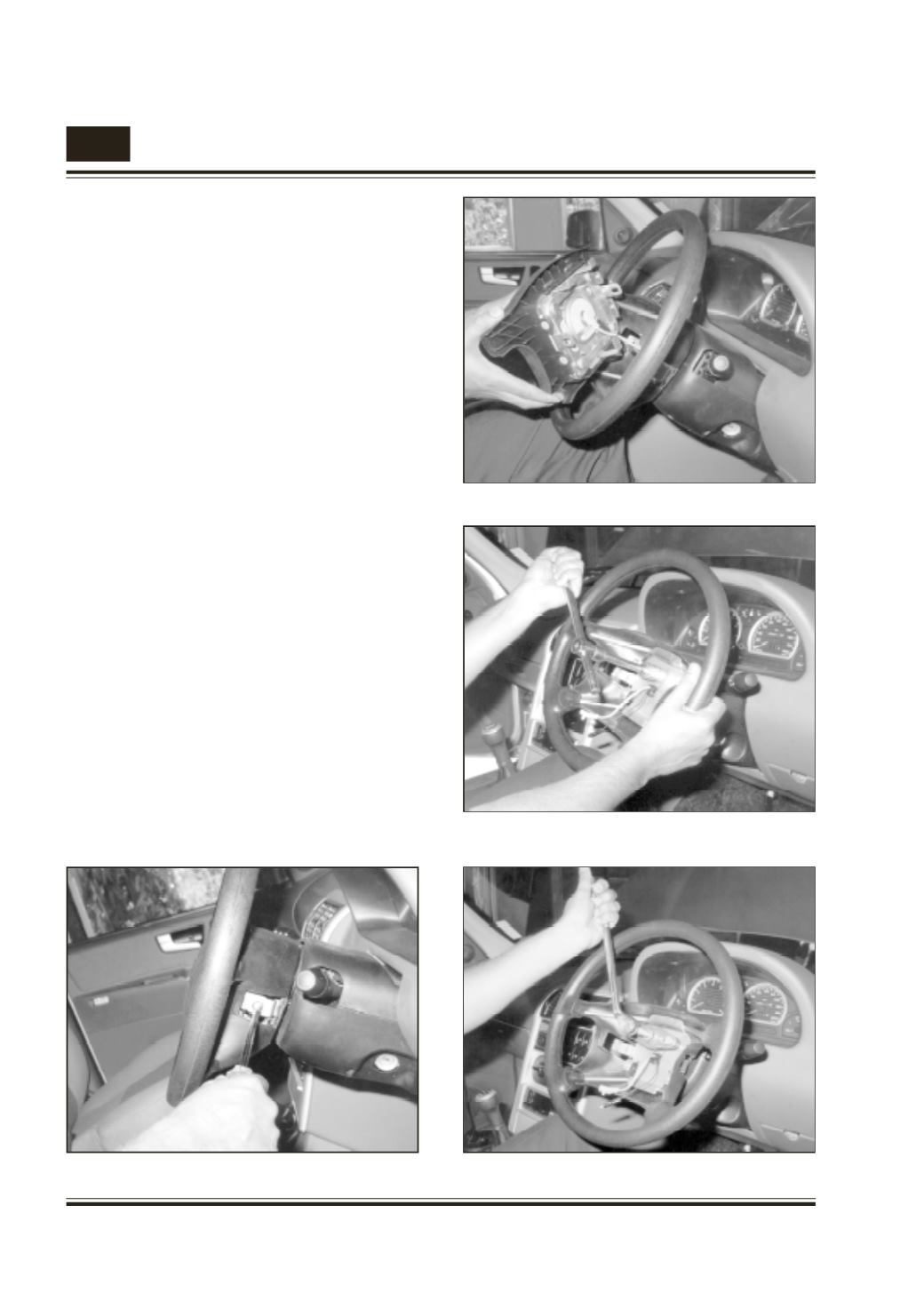

6. PROCEDURE FOR REMOVAL OF STEERING

WHEEL, DRIVER AND CO-DRIVER AIR BAG

MODULE

(Ensure that the battery is disconnected while

working with the air bag/belt pretensioners).

A. DRIVER AIR BAG

1. Disconnect battery ground cable and wait for one

minute.

2. Remove side caps on steering wheel bottom

cover.

3. Remove the two screws to detach air bag module

from steering wheel. Fig.5.

4. Disconnect clock spring and horn connectors after

removal of the plastic clamp provided for the

inflator connector. Fig.6.

B. STEERINGWHEEL

1. Orient the vehicle in Straight Ahead Position

(SAP).

2. Remove the steering wheel mounting nut. Fig. 7

3. Remove the steering wheel using puller. Fig. 8

Mark or fix a sticking tape on top & bottom

part of the clock spring to ensure its center

position.

Fig. 6

Fig. 7

Fig. 8

Fig. 5
