32

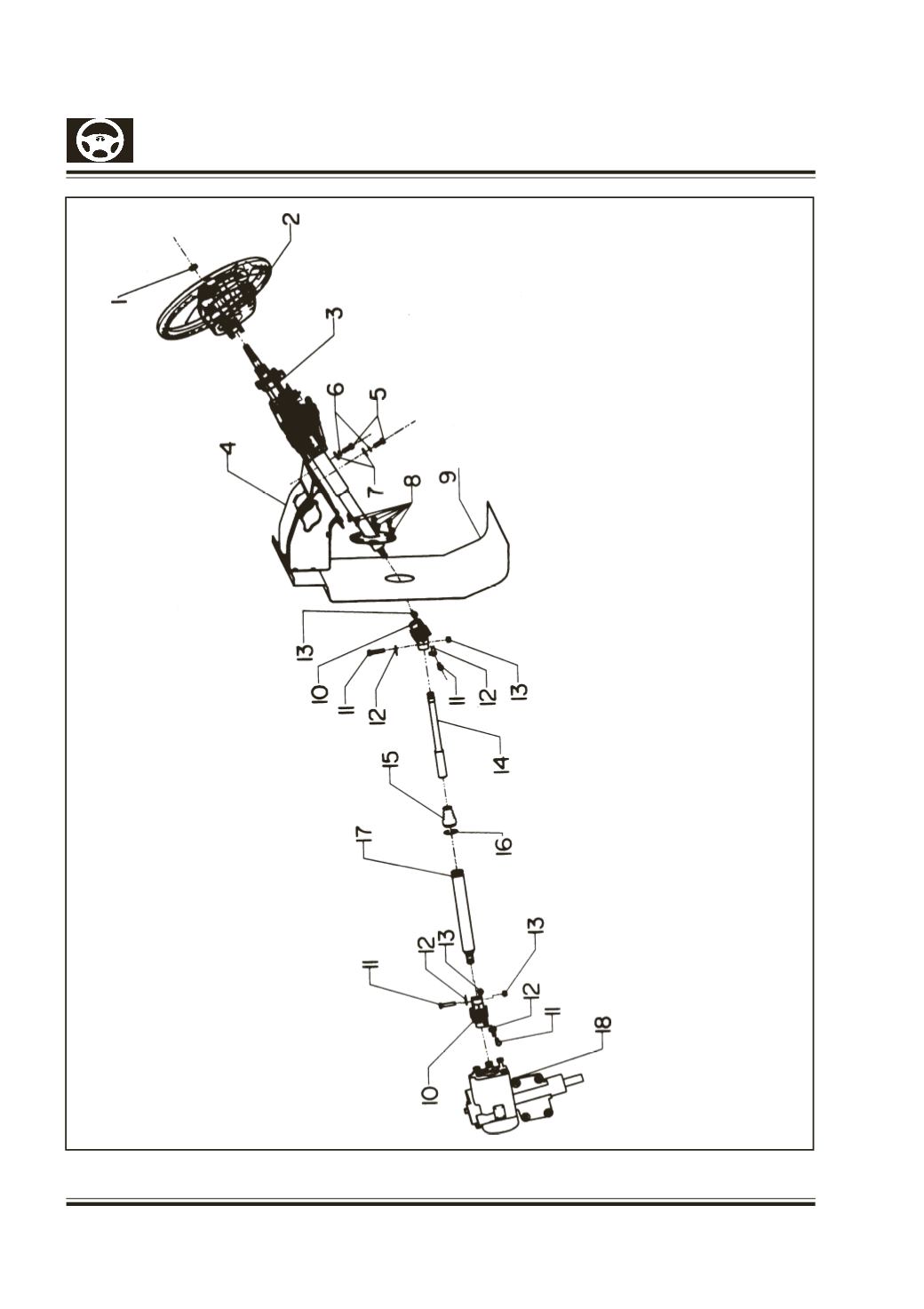

POWER STEERING

STEERING COLUMN STD

1. HEX. LOCK NUT M14

2. STEERINGWHEEL

3. ASSY. STEERING COLUMN

4. COLUMNMTG. BRACKET

5. HEX. SCREWM8X30

6. WASHER A-8, 4

7. SPRING WASHER -B8

8. HEX. FLANGE SCREWM6X12

Fig. 15

9. FIREWALL

10. ASSY. UNIVERSAL JOINT

11. BOLT M8

12. TABWASHER

13. NYLOC NUT M10

14. STEERING SPINDLE (BOTTOM)

15. RUBBER BELLOW

16. SPRING RING

17. SLEEVE

18. STEERING GEARBOX
