POWER STEERING

PLASTIC OIL TANK - SAFARI :

QTY DESCRIPTION /

REMARK

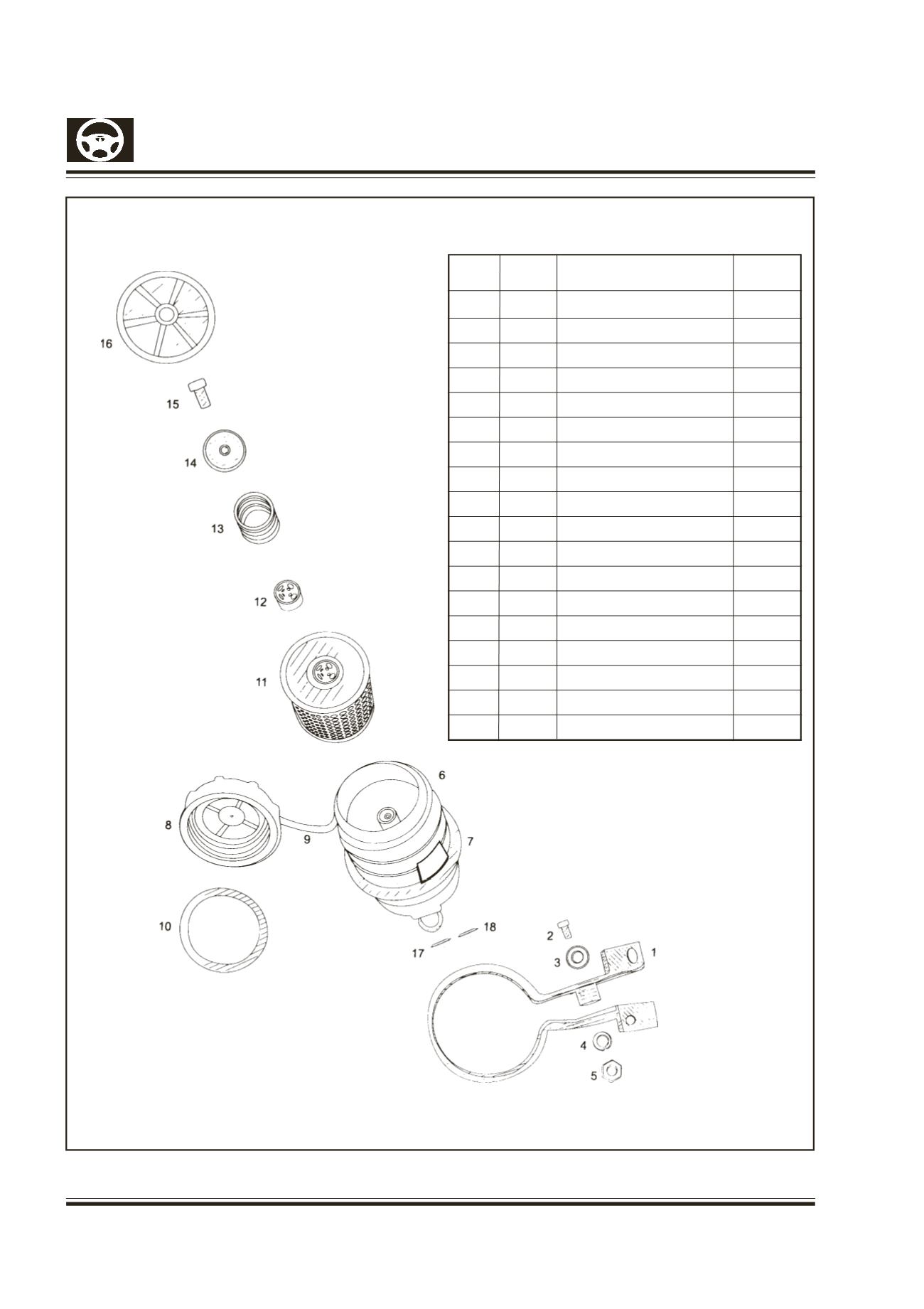

EXPLODED VIEW NO.

1

1

Bracket Assy. (1,2,3,4,5 )

2

1

Hex. Bolt. (2)

3

1

Punched Washer (3)

4

1

Spring Washer (4)

5

1

Hex. Nut. (5)

6

1

Bowl Assy.(6,7)

7

1

Cover Assy. (8,9)

8

1

Sealing Ring (10)

9

1

Filter Element (11)

10

1

Spring Cap (12)

11

1

Spring (13)

12

1

Spacer (14)

13

1

Cheese Head Screw (15)

14

1

Strainer (16)

15

1

Protective Cap (17)

16

1

Protective Cap (18)

17

1

Oil-Tank Assy. Complete

Safari-D

18

1

Oil-Tank Assy. Complete

Safari-P
