FOR 4X2

ASSEMBLY OF CENTRE BEARING ON FRONT

PROPELLER SHAFT

Pack cavities between dust seals and centre bearing

with lithium base grease (bearing grease)

Smear grease on the seating surface of centre bearing

on front propeller shaft.

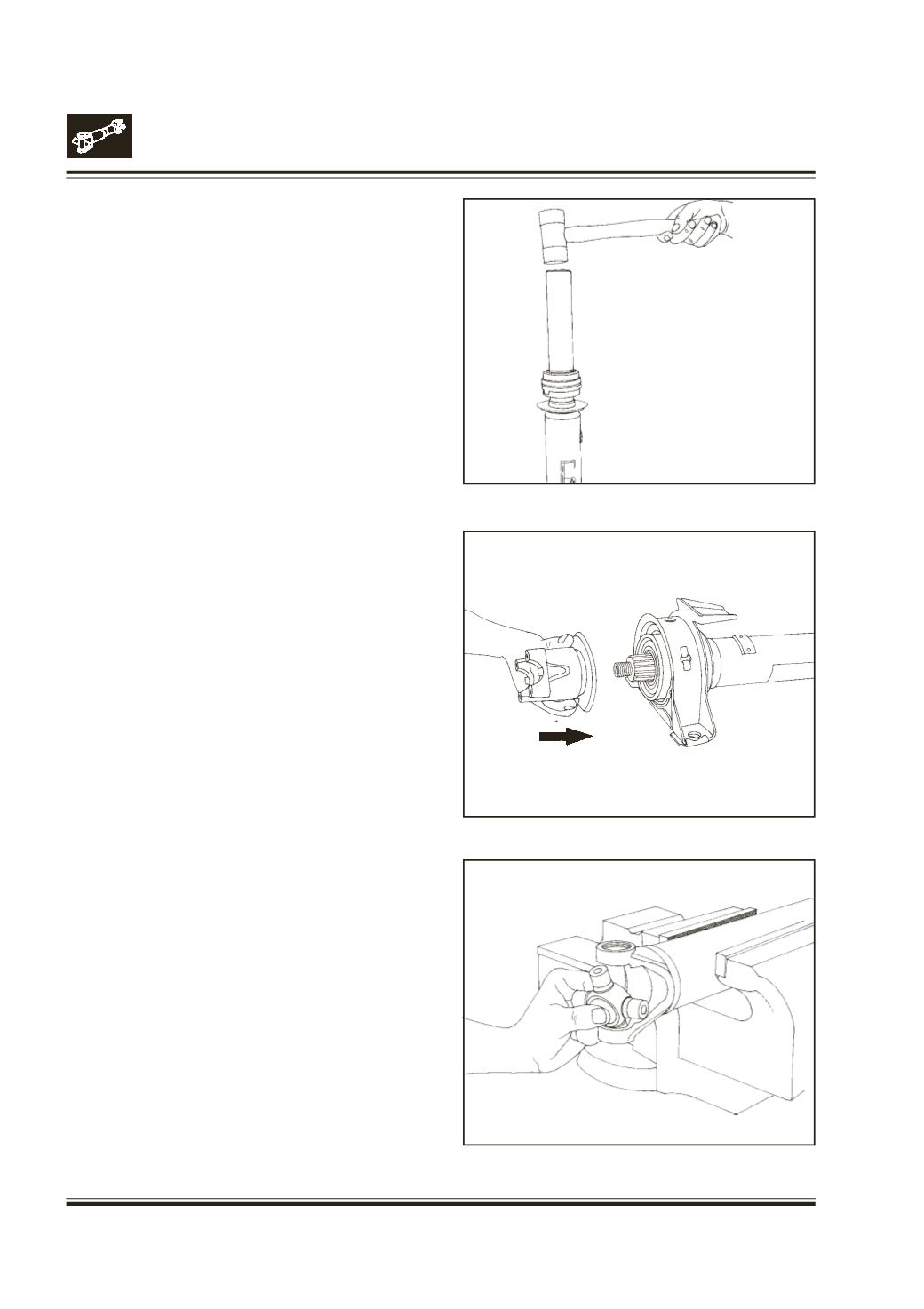

Install centre bearing assembly on front propeller shaft

rear end.

Fig.21

Install other spacer ring of centre bearing on propeller

shaft bearing, using a suitable drift.

Apply glycerin on inner periphery of rubber housing

and slide it on to the centre bearing assembly.

Apply grease on the splines of front propeller shaft

and coupling flange. Insert end yoke on front propeller

shaft.

Fig.22

Screw inNEWend yokemounting nut on front propeller

shaft.

Mount holder Pt. no. 2698 5890 3505 or Pt. no. 2698

5890 4102 on end yoke. Clamp holder in vice and

tighten coupling flange nut.

Assemble centre bearing bracket and clamping strap

on rubber housing. Clamp strap on to the bracket at

both ends. Ensure that there are no cracks at crimping.

ASSEMBLY OF UNIVERSAL JOINT

Position the cross in the yoke.

Fig.23
