SAFARI

486 PL ENGINE

Fig. 183

Fig. 182

Fig. 181

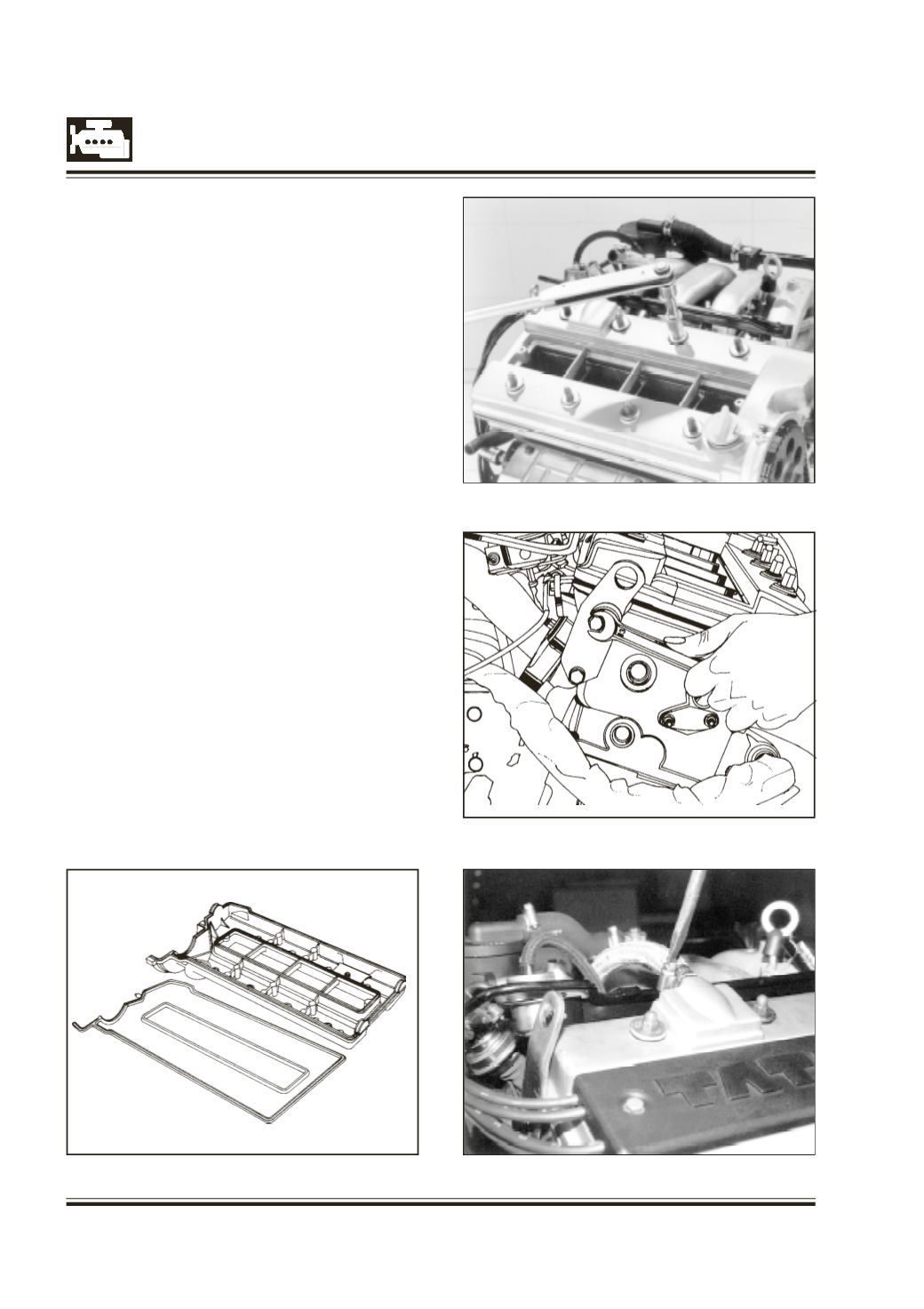

Apply anabond and fit cylinder head cover with

rubber gasket and D-seals. Fig. 180

Install pillar bolts, rubber washer, washer and

dommed nuts, tighten uniformly. Fig. 181

Fit rear engine lifting hook / bracket. Fig. 182

Fit high voltage cables on spark plugs, the cords

are numbered.

Fit top cover (spark plug cover) and install the high

voltage cables at ignition coil.

The ignition coil is also numbered for specific cables.

Fit vapour return (blow-by) line from cylinder head

cover to inlet connection pipe. Fig. 183

Fig. 180
