35

BODY

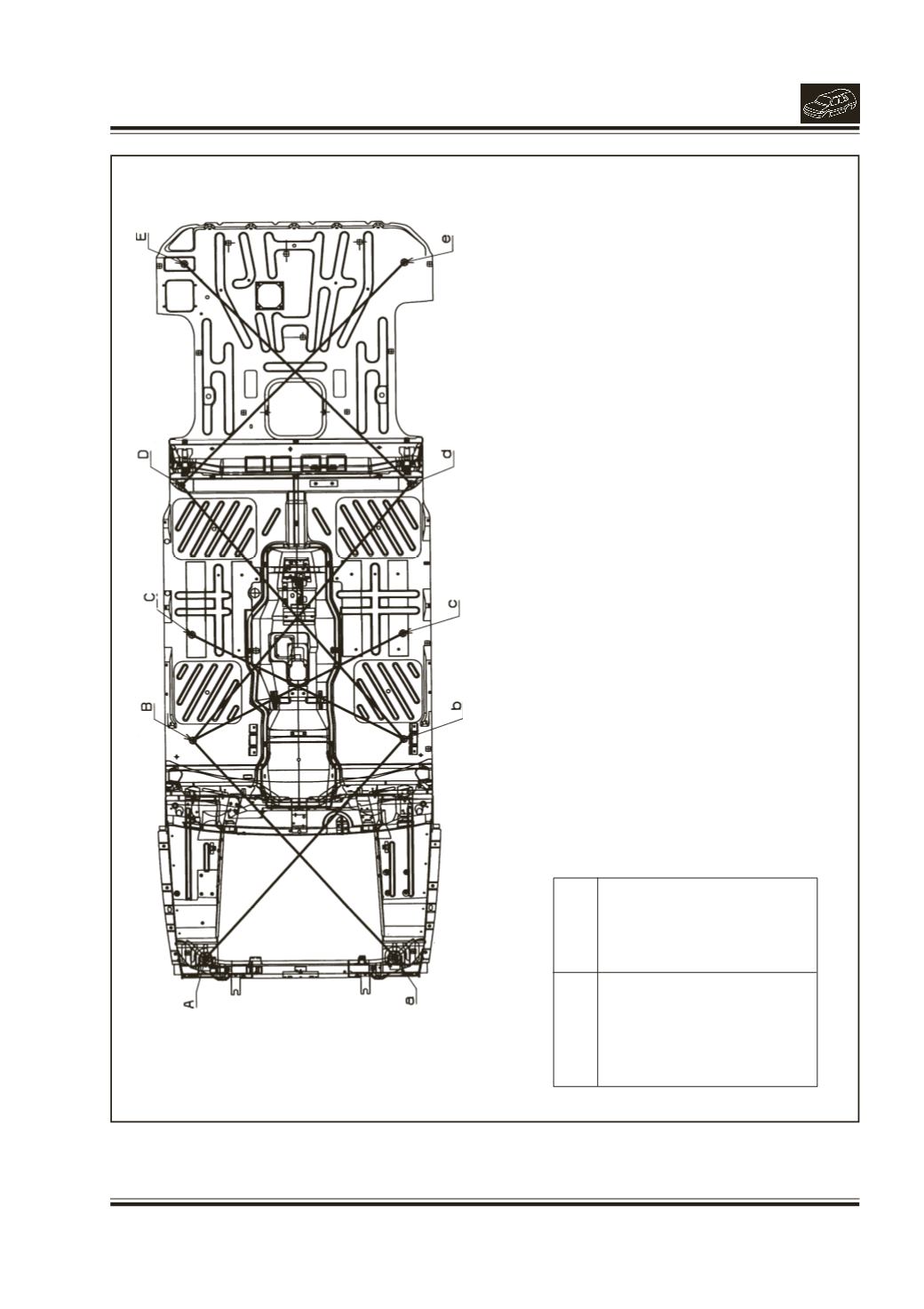

30. IMPORTANT BODY DIMENSIONS

DIMENSIONS IN PLAN VIEW

Measurement

Length

Position

in mm

A-b

1598

a-B

1598

B-c

1278

b-C

1278

B-d

1834

b-D

1834

D-e

1707

d-E

1707
