ELECTRICALS

15

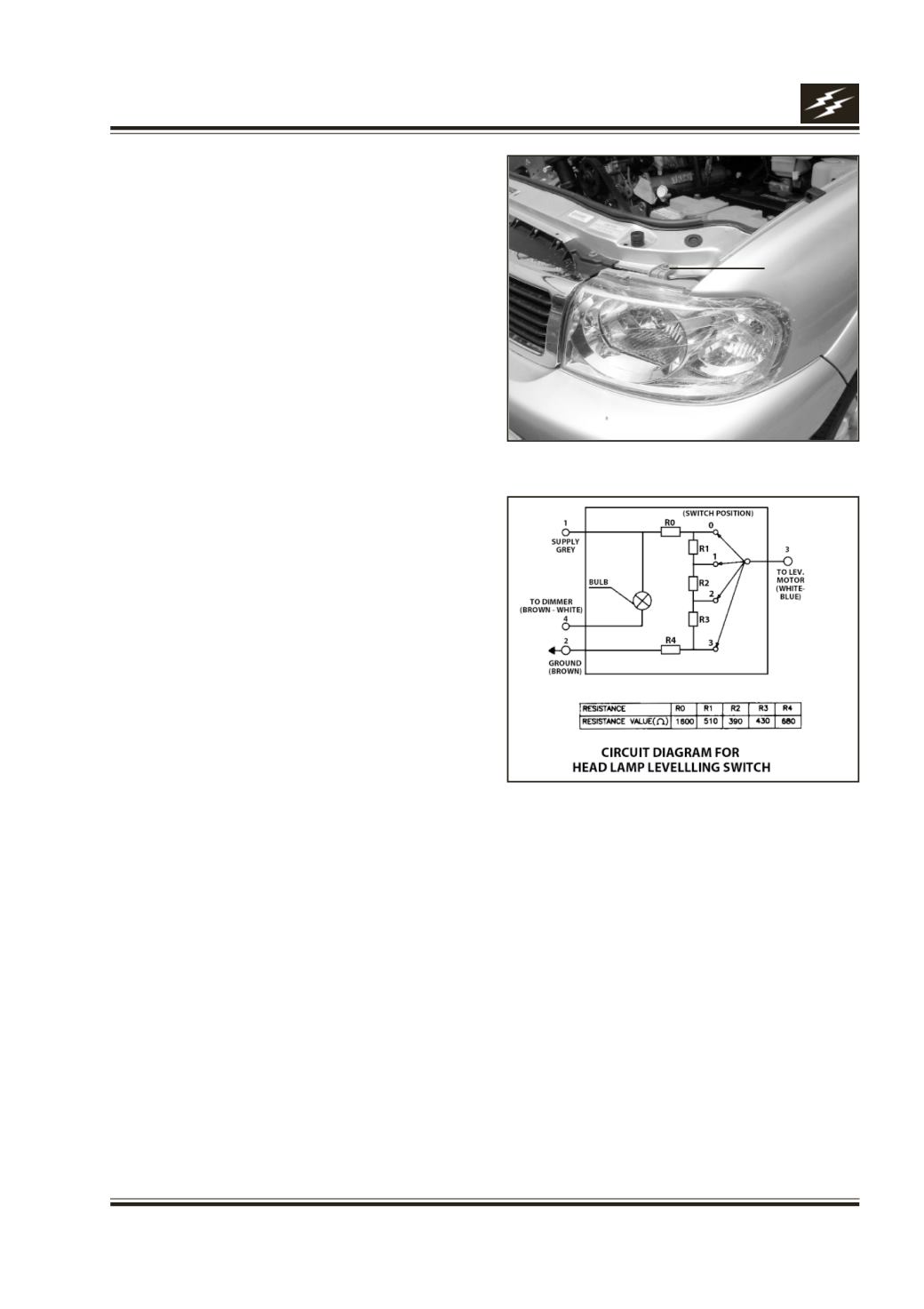

Fig. 13

Head Lamp

Mounting

Screws

Fig. 14

10. Head Lamp / Tail Lamp Assy. :

Fitment

(Head Lamp) Fig. 13

l

Insert the Head Lamp into the cutout for the Head

Lamp and align the three mounting locations.

l

Tighten the lamp with the fasteners.

l

Connect the respective connectors for the Head

Lamp.

Remove

(Head Lamp)

Please follow reverse procedure for fitment.
