ELECTRICALS
14

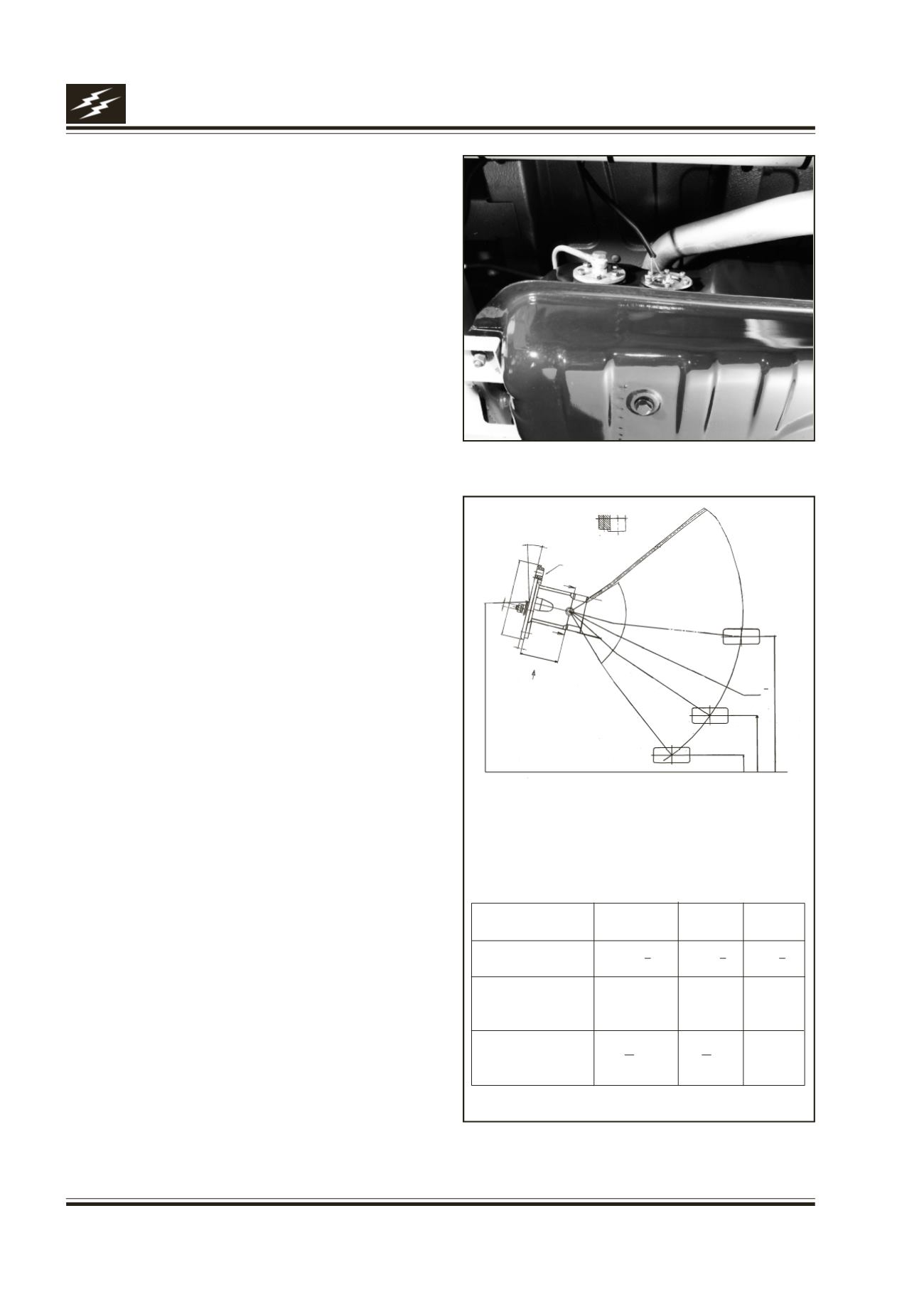

Fig. 11
Fig. 12
Calibration Details :
Float Position Empty Half
Full
Float Height
16.5
+2
133
+2
262
+2
Resistance
10
104 180
1N OHMS
Tolerance
+ 4
+ 6 + 12
in OHMS
- 2
15.00
DETAIL ‘A’
SCALE N
S
B
75.00
M4.00
X0.7
B
T
(90.00)
37.50
4.00
169.00
Fuel Tank Unit
R176.00+2
HALF
EMPTY
RESERVE
9. Fuel Gauge Tank Unit
Removal :
l
Remove Fuel Tank assembly. Fig. 11
l
Release clip & disconnect fuel feed hose.
l
Release clip & disconnect fuel return hose.
l
Remove electrical connections.
l
Remove 6 nuts securing Float Unit from the fuel
tank.
l
Remove seal from the Float Unit.
Fitment :
Please follow reverse procedure
Testing / Checking : Fig. 12
The sender is a float operated rotary potentiometer
which provides a variable resistance to ground for the
output from the gauge. When the sender float is at its
lowest point, indicating an empty fuel tank, the
resistance to earth is at its lowest. The resistance is
sensed by the gauge which positions the needle
accordingly.
Use ohm-meter to confirm that the resistance of the
fuel level sensor (Fuel Tank Unit) changes with the level
of float position.
