FUEL SYSTEM

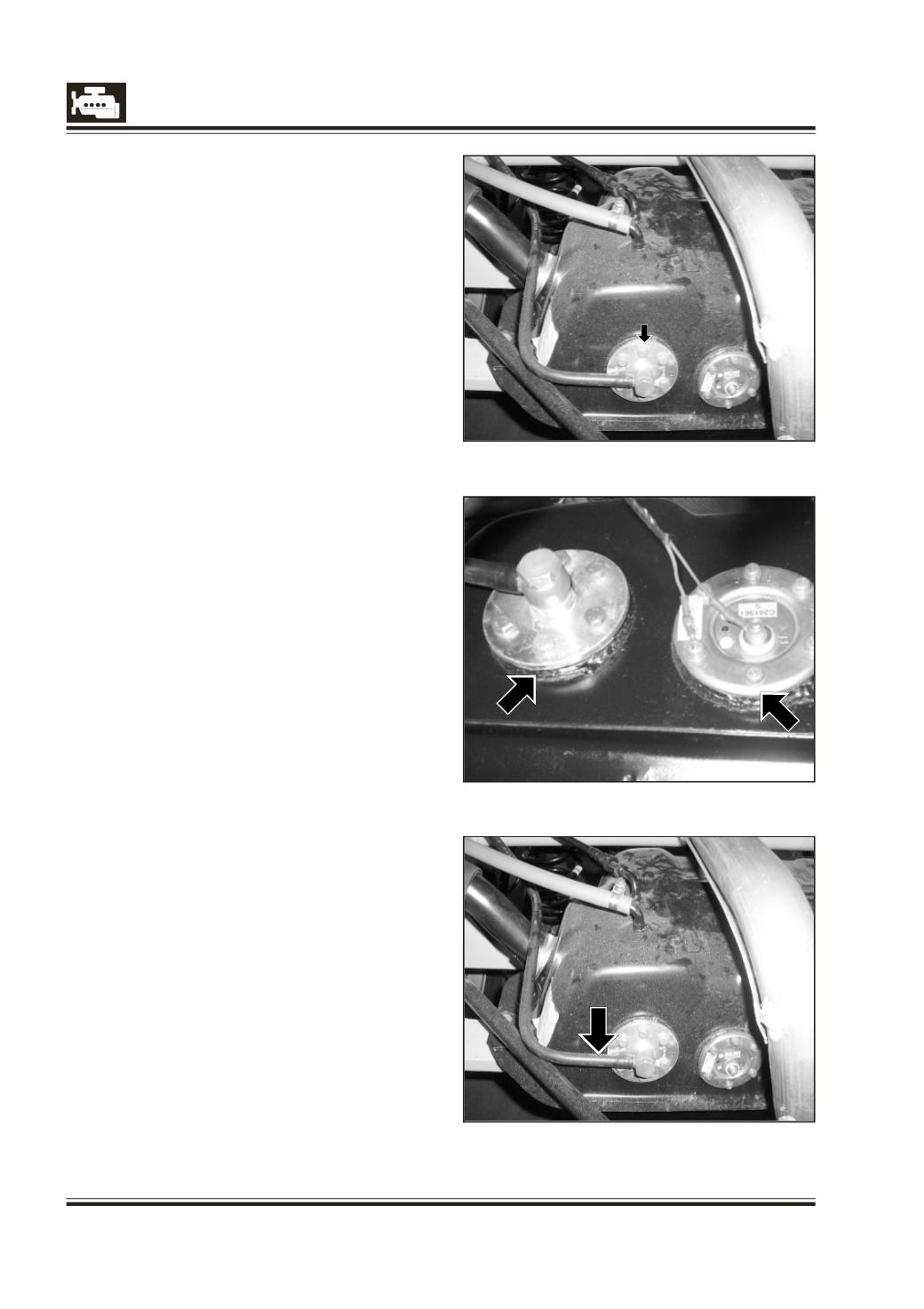

Fig. 3b

Fig.3c

Fuel level gauge

Fuel strainer

Fig. 3d

FUEL STRAINER

SUCTION LINE

PURGING OF FUEL TANK

Procedure

1. Remove fuel tank from the vehicle 'Refer

procedure as mentioned above.

2. Remove fuel strainer and fuel level gauge from

fuel tank.

3. Shift the tank to flushing area.

4. Fill tank with warm water or normal tap water and

agitate vigorously and drain water.

Repeat the procedure until inside of tank is clean.

5. Replace the fuel tank if it is rusty from inside.

6. Completely flush out remaining water after

washing.

Warning :

Do not allow water to remain inside fuel tank after

washing. This will cause corrosion inside fuel tank.

Assembly

1. Assemble fuel strainer and fuel level gauge to fuel

tank. Assemble fuel strainer with new 'O' ring.

Connect suction line to fuel tank strainer and

tighten banjo bolt to specified torque

Always use new sealing washers.

2. Connect return line to fuel tank by simply pushing

Q.C.

3. Install fuel filler hose after fuel tank has been

mounted in place. Failure to follow this caution

could result in leakage from around hose

connections.

4. Fill the tank with fuel.
