GENERAL

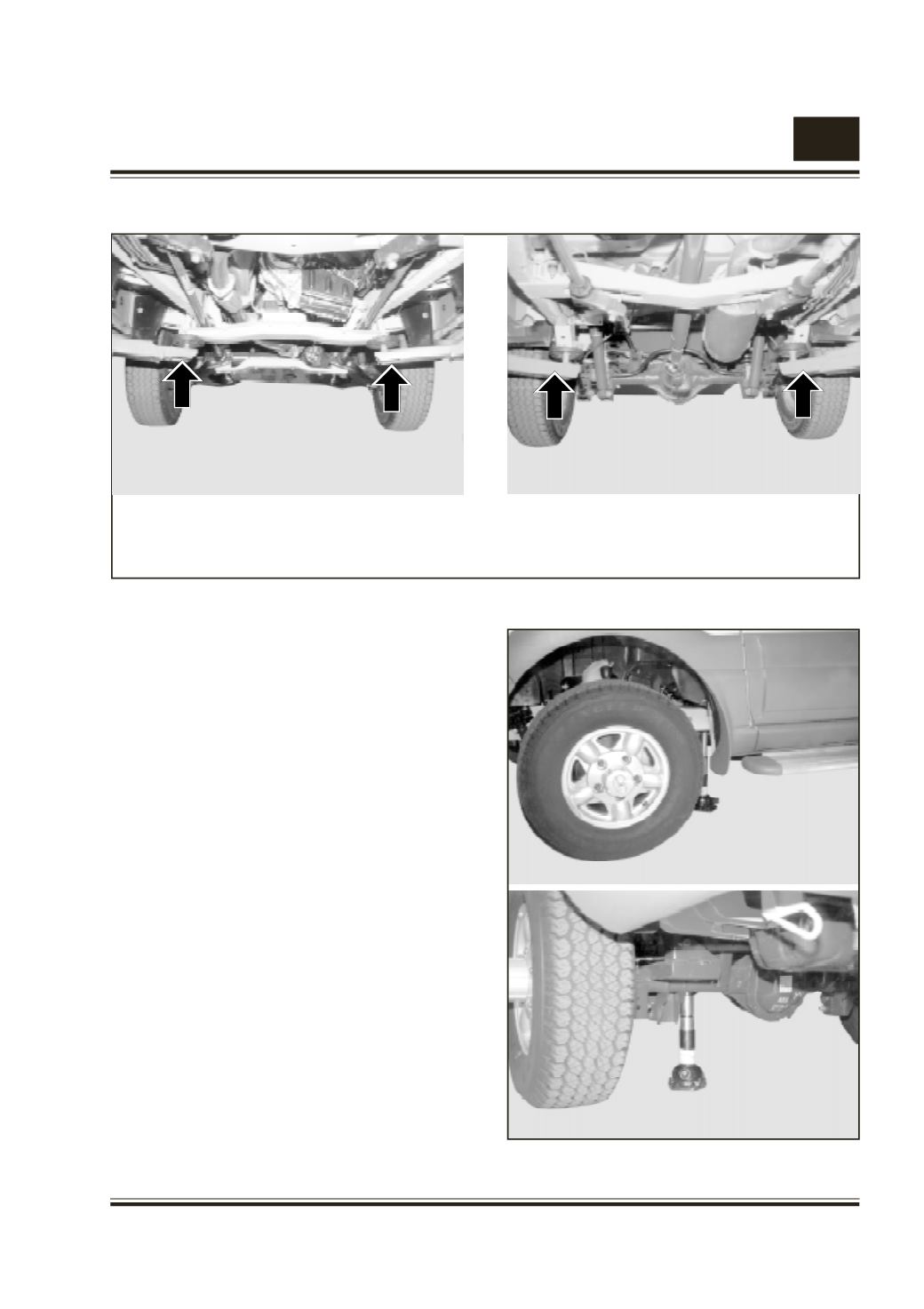

2. LIFTING AND JACKING POINTS
Fig. 12
USING THE HOIST
Make sure you follow the hoist manufacturers
instructions while lifting the vehicle on two pole hoist
Fig. 12.
Always ensure vehicle balance in service while
applying hoist to under body.
Care should be taken that the hoist arm is not in
contact with the bracket, brake or fuel pipes etc.
Before servicing, make sure to lock the hoist after
the vehicle is lifted up.
When using the floor jack :
Use the jacks at the locations indicated Fig 13.
Do not apply the jack against any part which may
get deformed.
If front end or rear end of the vehicle is to be jacked
ensure the wheels on ground are blocked with wheel
chokes for safety.
Fig. 13
Front Jacking Point
Rear Jacking Point
Front Lifting Points
Rear Lifting Points
