3 CYL PETROL ENGINE

134

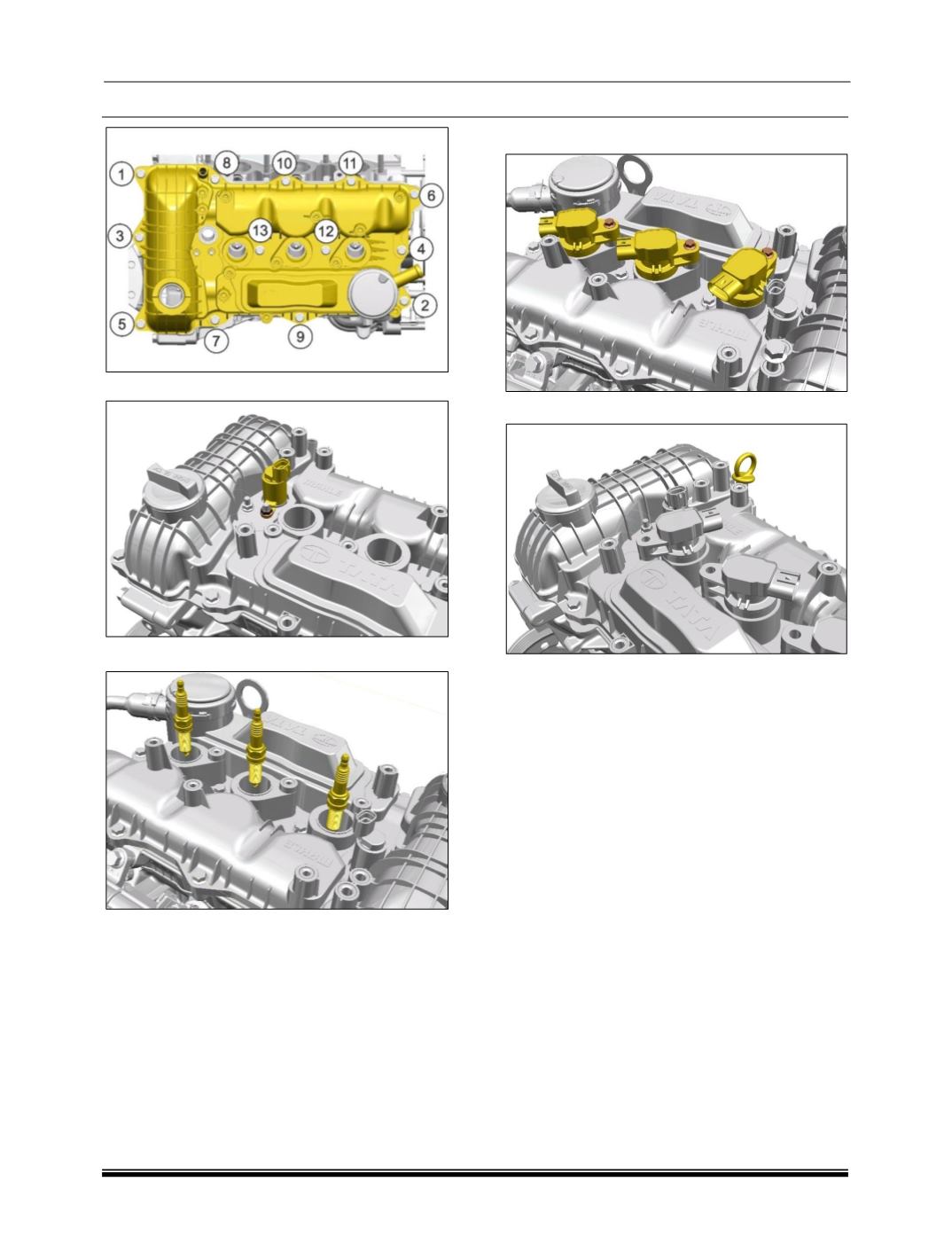

4. Assemble the Solenoid valve of VCT.

5. Assemble the spark plugs.

6. Assemble ignition coil to head cover.

7. Assemble dipstick to head cover.
