SAFARI

AIR CONDITIONING

AIR CONDITIONING CONTROLS

This system has full heating, ventilation and Air

Conditioning.

The system controls can be adjusted to mix these

into various combinations.

The air flows into the interior through different

locations. This is controlled by the switch fitted on

RH side of A/c control panel.

The air flow control switch has five positions for air

flow direction.

Air to face vents

Air to face vents and for feet

Air to feet

Air to feet and windscreen

recommended for clearing mild mist

on windscreen

Air to windscreen recommended for

clearing heavy fog or snow

Rotating the air mix control switch clockwise

(towards red segment) the air temperature

increases. Rotate air mix control switch anti

clockwise (towards blue segment) to reduce the air

temperature.

The switch on the top centre is for controlling the

blower speeds. Blower has four speeds. The blower

speed could be selected as per requirements.

For operation of aircondition three switches have been

provided (See sketch).

Switch a -

Press (switch lamp "ON") for fresh air

mode, Release (switch lamp "OFF") for

air recirculation mode.

Switch b -

For switching 'ON' or 'OFF' front A/c. It

is marked by ‘F’

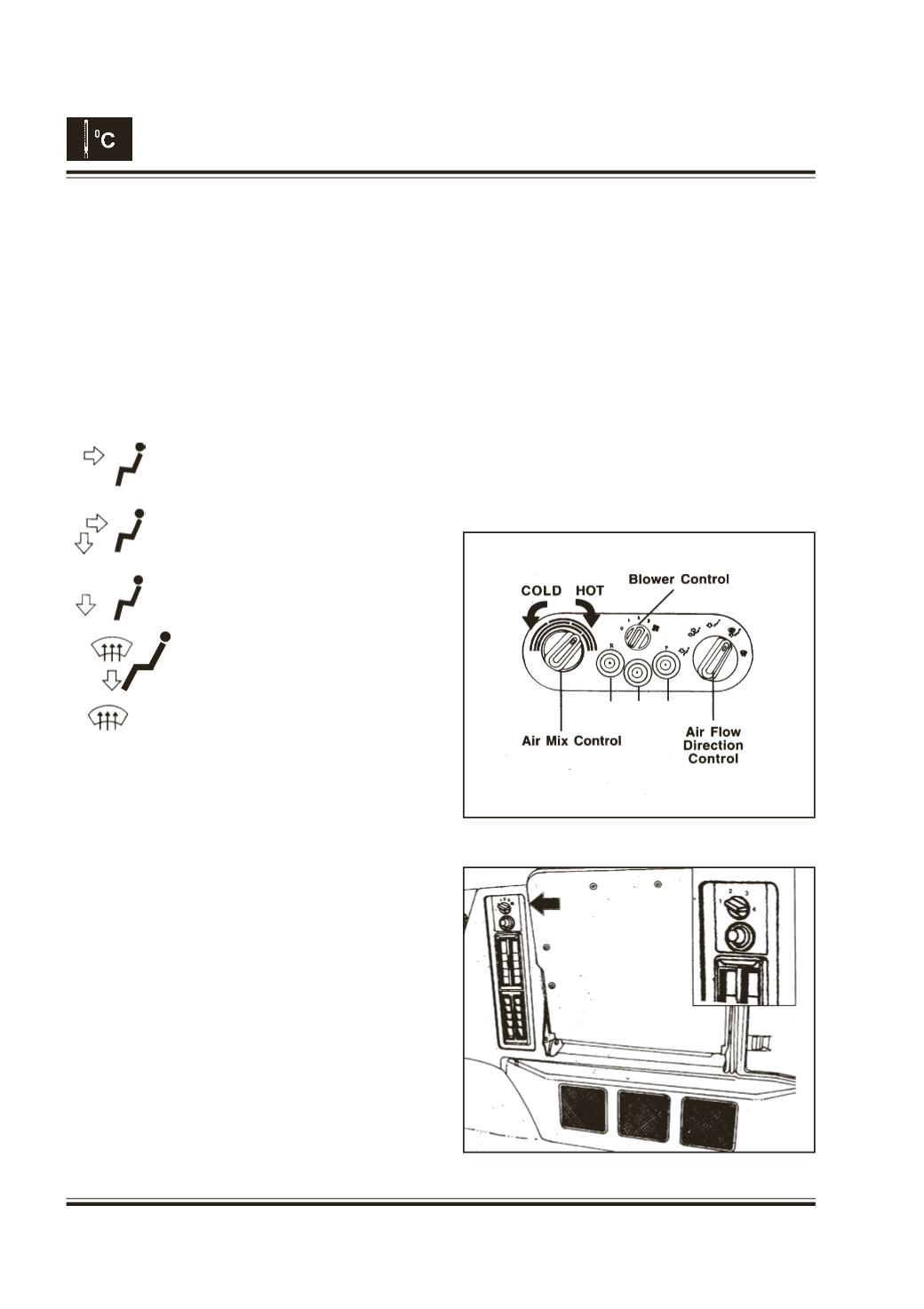

Fig. 13 - Air conditioning controls

Fig. 14 - Air conditioning controls rear

Switch c

- For switching 'ON' or 'OFF' rear A/c. It is

marked by ‘R’. (If fitted)

By switching on switch F and blower the Front A/c.

becomes operative.

Note:

When the A/C. is switched ON the engine RPM

increases and when the thermostat cuts off A/C.,

engine RPM decreases.

Rear A/C (If fitted)

The rear A/C. control panel is situated at rear as

shown in the sketch. The switch at the top is for

rear blower speed selection. The rear A/C. can be

switched ON or OFF by a switch on rear control

panel provided the front A/C. is already in operation

and switch marked R on front control is ‘ON’.

c a b
