SAFARI

ELECTRICALS

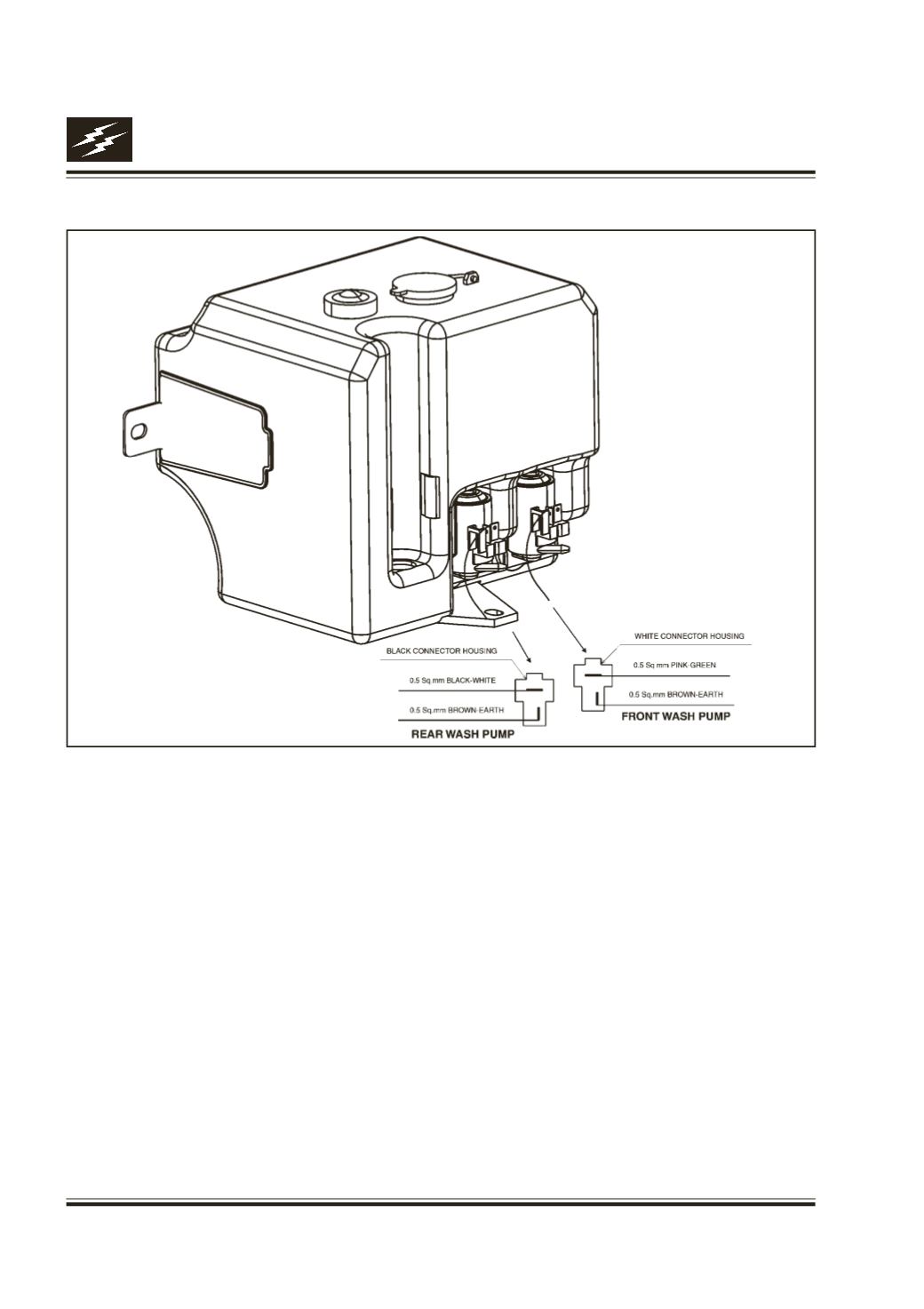

Windscreen Wash Bottle Fig. 59

Removal

Disconnect the battery negative cable

Disconnect the windscreen washer tube from

the bottle.

Disconnect the connectors from windscreen washer

pumps and take out the front & rear wash pumps

from the wash bottle.

Unscrew the bolts holding the washer bottle and

take out the bottle. Fig. 59

Installation

Follow the above steps in the reverse sequence.

Inspection

Connect the battery positive and negative terminals

to washer motor positive and negative terminals and

check if it is working properly.

Check the bottle for cracks and leakages if any.

Refer circuit diagram section for Windscreen washer.

Fig. 59
