POWER STEERING

STEERING PUMP ASSEMBLY

QTY DESCRIPTION /

REMARK

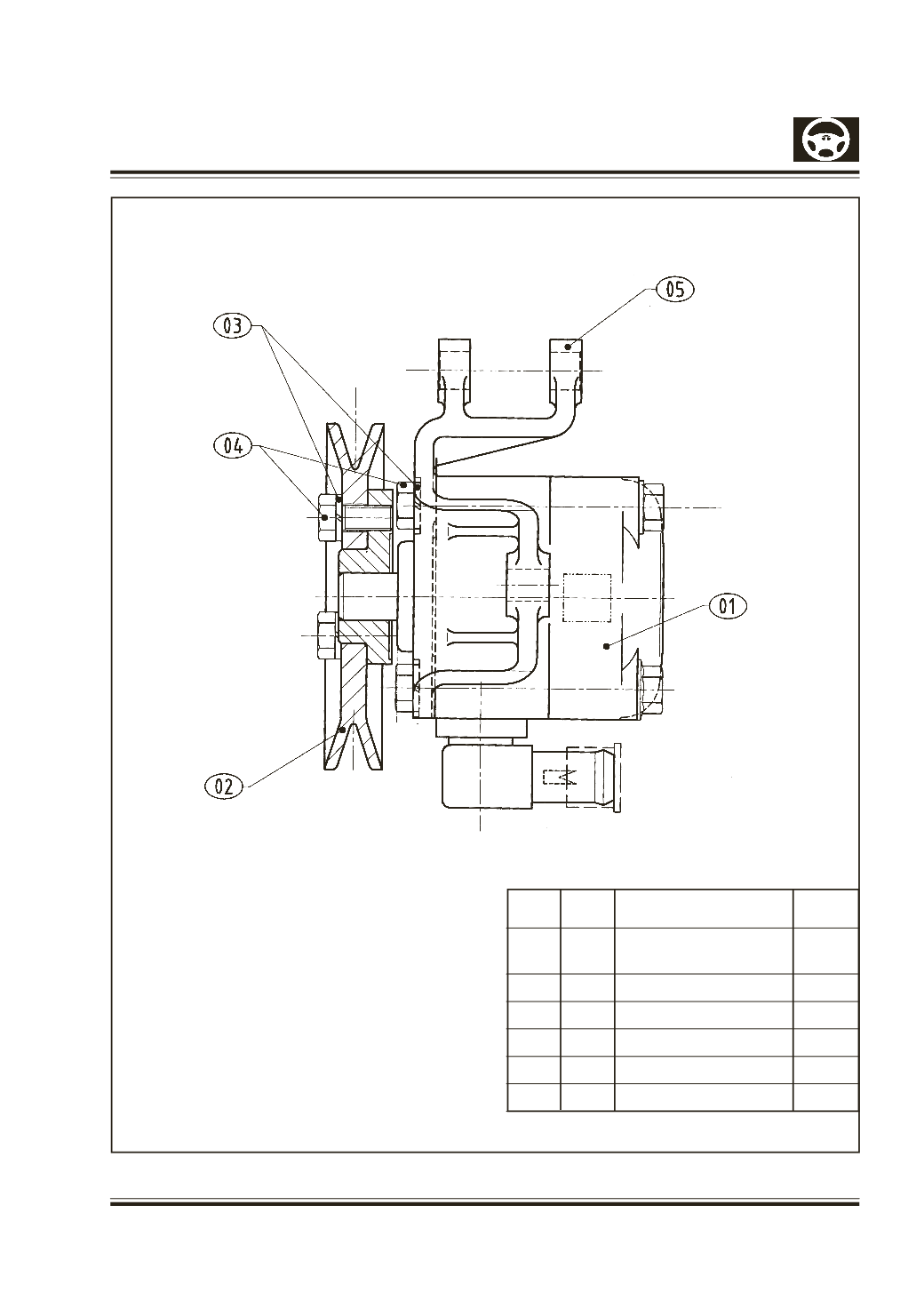

EXPLODED VIEW NO.

1.

Vane Pump Assy.

(1,2,3,4,5)

2.

Pump (1)

3.

Bracket (5)

4.

Pulley (2)

5.

Hex Bolt (4)

6.

SpringWasher (3)
