SAFARI

FRONT AXLE - 4

REMOVAL & INSTALLATION OF FREE RUNNING

HUB ON VEHICLE (IF FITTED)

Removal :

Set the knob to "Lock"

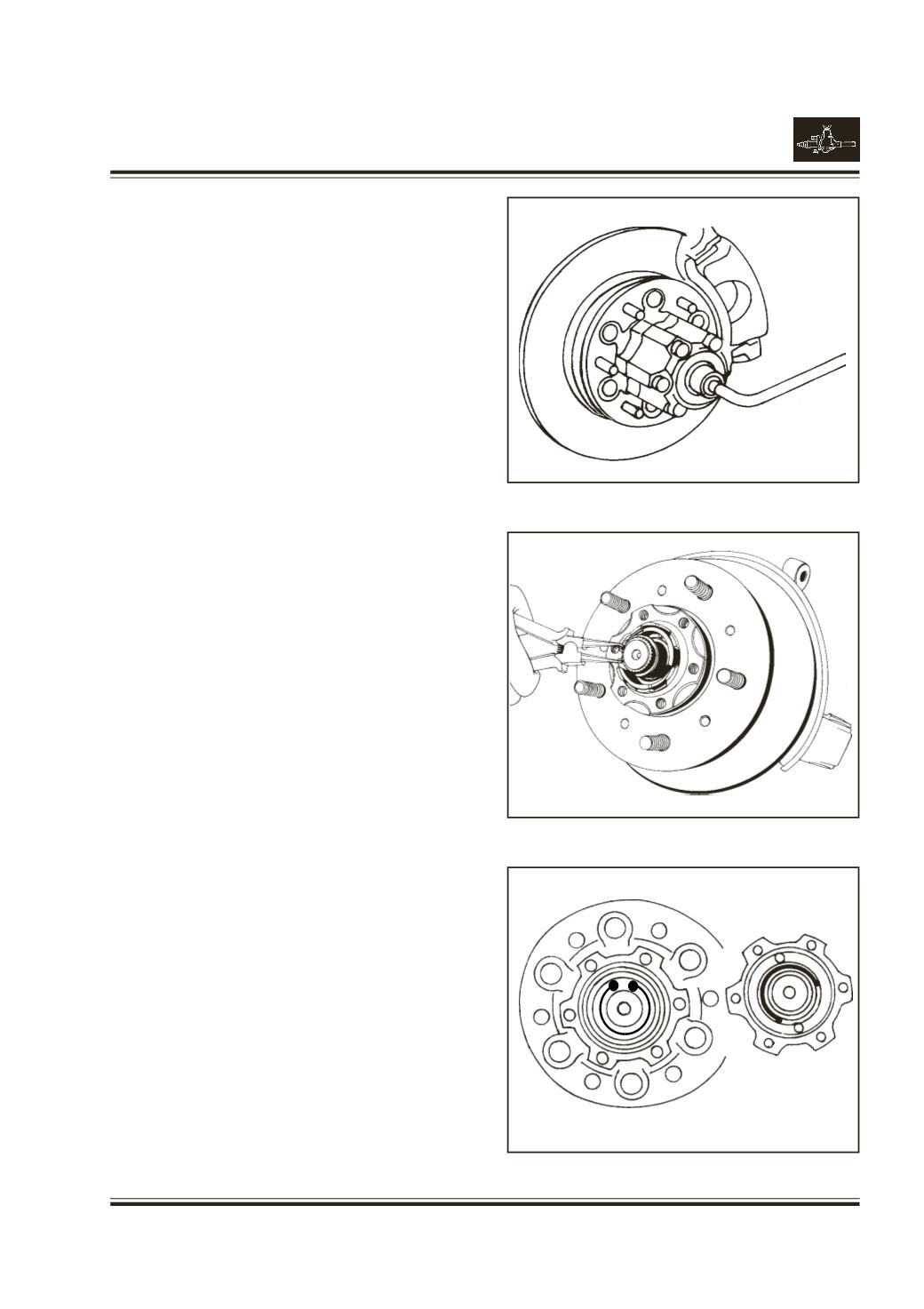

Fig. 3

Remove free - running hub main body assembly

after removing fixing bolts.

Remove spindle washer and brake set after

removing snap ring from drive shaft.

Fig. 4

Note :

The drive shaft will become free after

removing the snap ring. Take care to support

it suitably.

Fig. 3

Fig. 4

Fig. 5

Installation :

Install brake set to spindle. Install snap ring to

minimize drive shaft axial end play.

Fig. 4

Note :

Allowable drive shaft axial end play to 0.2 mm

or less.

Confirm the knob to lock position.

Install free - running hub main body assembly after

aligning position of release plate and wire brake so

that the end portion of wire brake does not overlap

protruded portion of release plate.

Fig. 5

LOCK

AUTO

LOCK
