321 / 1525
19

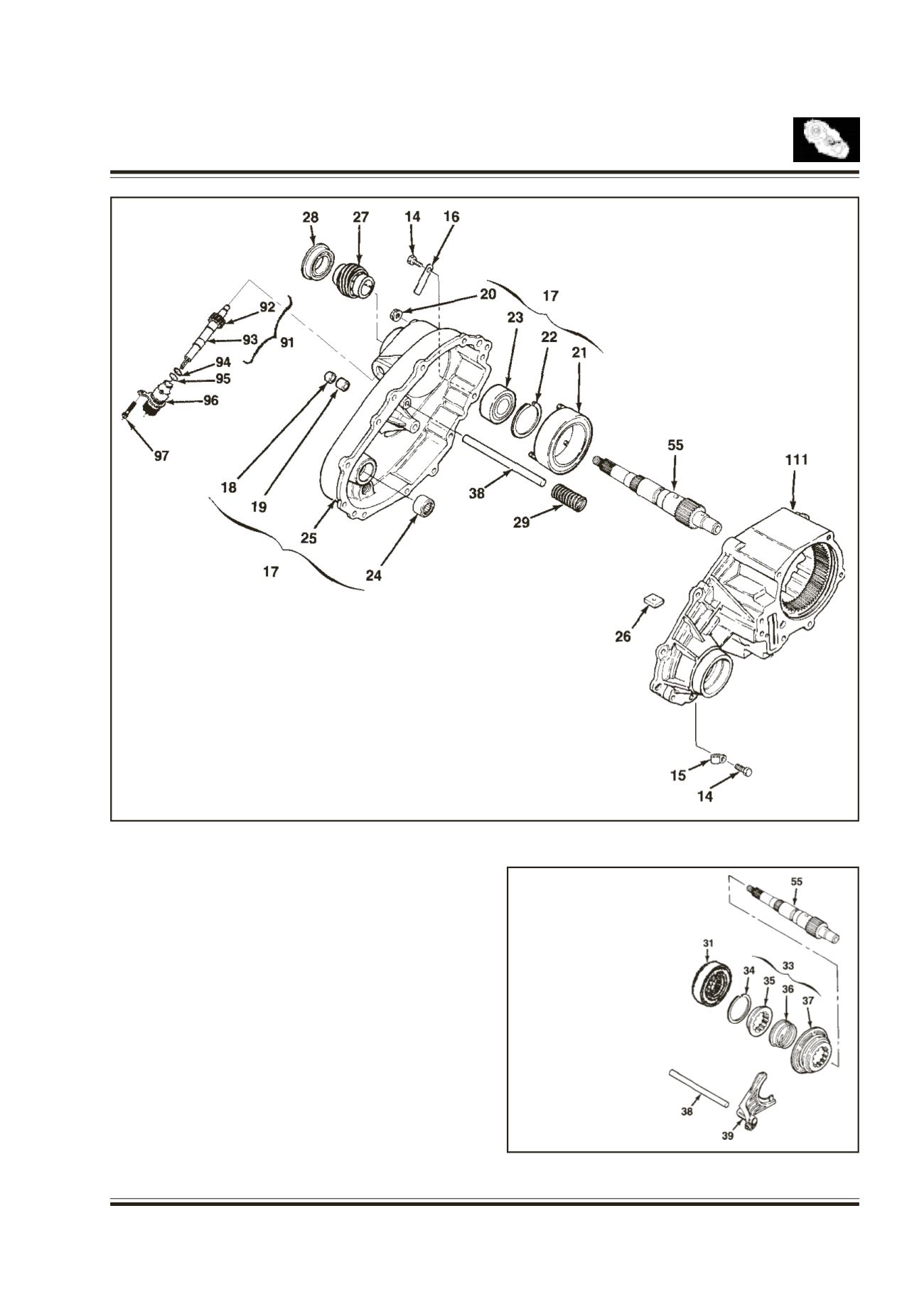

TRANSFER CASE
14. BOLT
15. WIRING CLIP
16. IDENTIFICATIONTAG
17. COVER ASSY
18. OIL SEAL
19. BEARING
20. NUT
21. CLUTCH COIL ASSY
22. SNAP RING
23. BALL BEARING
24. NEEDLE BEARING
25. COVER
26. MAGNET
27. SPEEDO GEAR
28. OIL SEAL
29. RETURN SPRING
38. RAIL SHAFT
55. OUTPUT SHAFT
91. SPEEDO ASSY
92. GEAR, SPEEDO
93. SHAFT, SPEEDO
94. SEAL
95. O RING
96. BODY SPEEDO
97. BOLT
111. TRANSFER CASE
Lock up shift parts
Fig. 9
Remove the snap ring and clutch housing assembly.
Separate the 2WD and 4WD lock up assembly and
lockup fork from the rail shaft.
To remove the 2WD and 4WD lock up assembly,
remove snap ring, lock up hub and return spring
from lock up collar.
Fig. 8
Fig. 9
31. CLUTCHHOUSING
33. 2W-4W LOCKUP ASSY
34. SNAP RING
35. LOCKUP HUB
36. RETURN SPRING
37. LOCKUPCOLLAR
38. RAIL SHAFT
39. LOCKUP FORK
55. OUTPUT SHAFT
