SAFARI

TRANSFER CASE

Caution :

Do not engage 4H/4L on TARMAC Roads /Hard

Surfaces like concrete roads or floors.

Note :

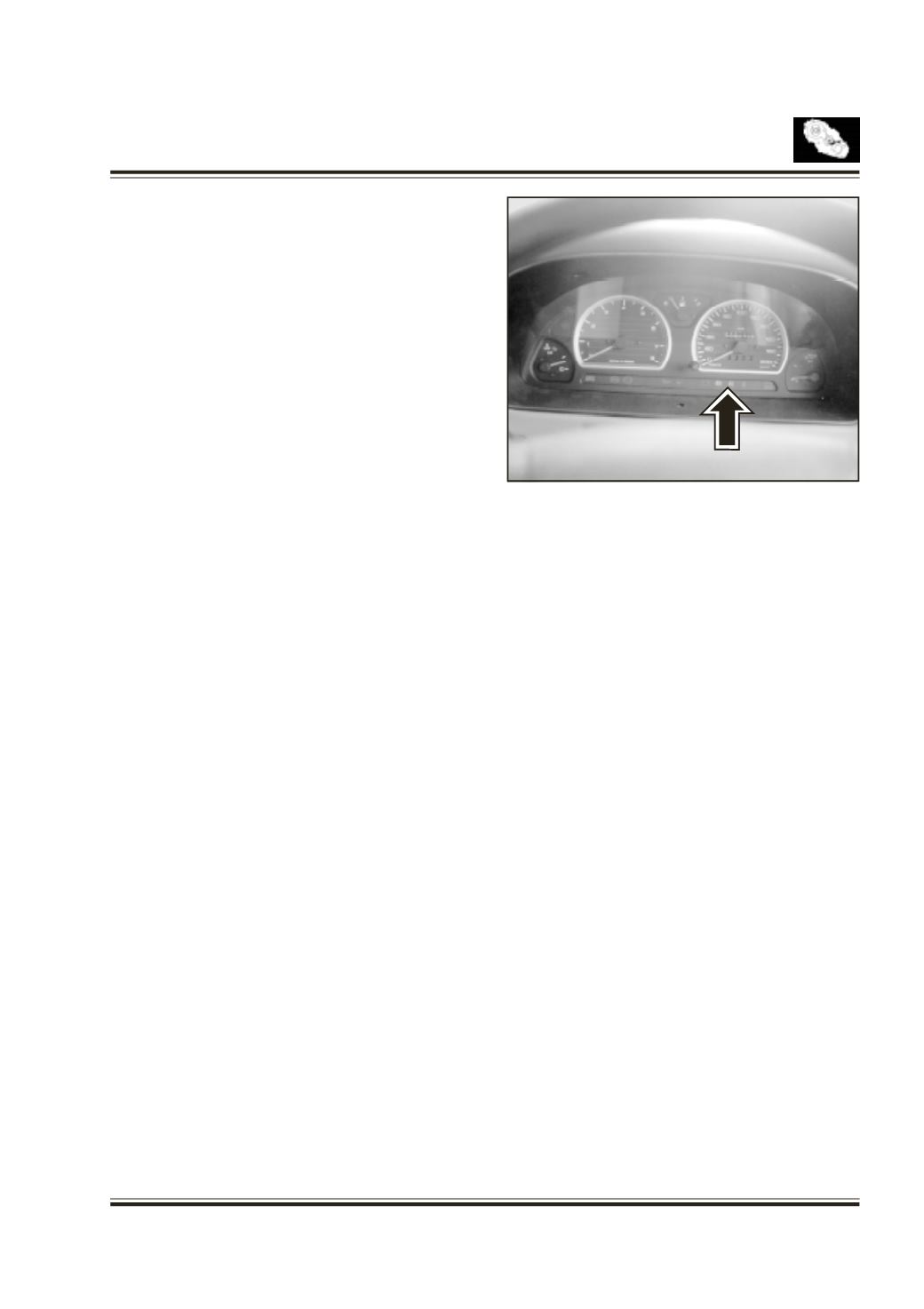

In case of malfunctioning in shifting, the 4WD HI

and 4WD LO indicator lights will flash

continuously. Fig. 3

ELECTRIC SHIFT ASSEMBLY

consists of :

1. Activating motor

2. Sensor

3. Speed Sensor

4. ECU

5. Selector switch

6. Magnetic

Synchronizer Clutch

Functioning :

Activating Motor is a step motor, used to turn the

shift shaft. Position sensor senses the position of

the shaft and thus the operating mode of the transfer

case.

Speed sensor senses the speed of the output shaft

and give signal to the ECU.

Fig. 3
