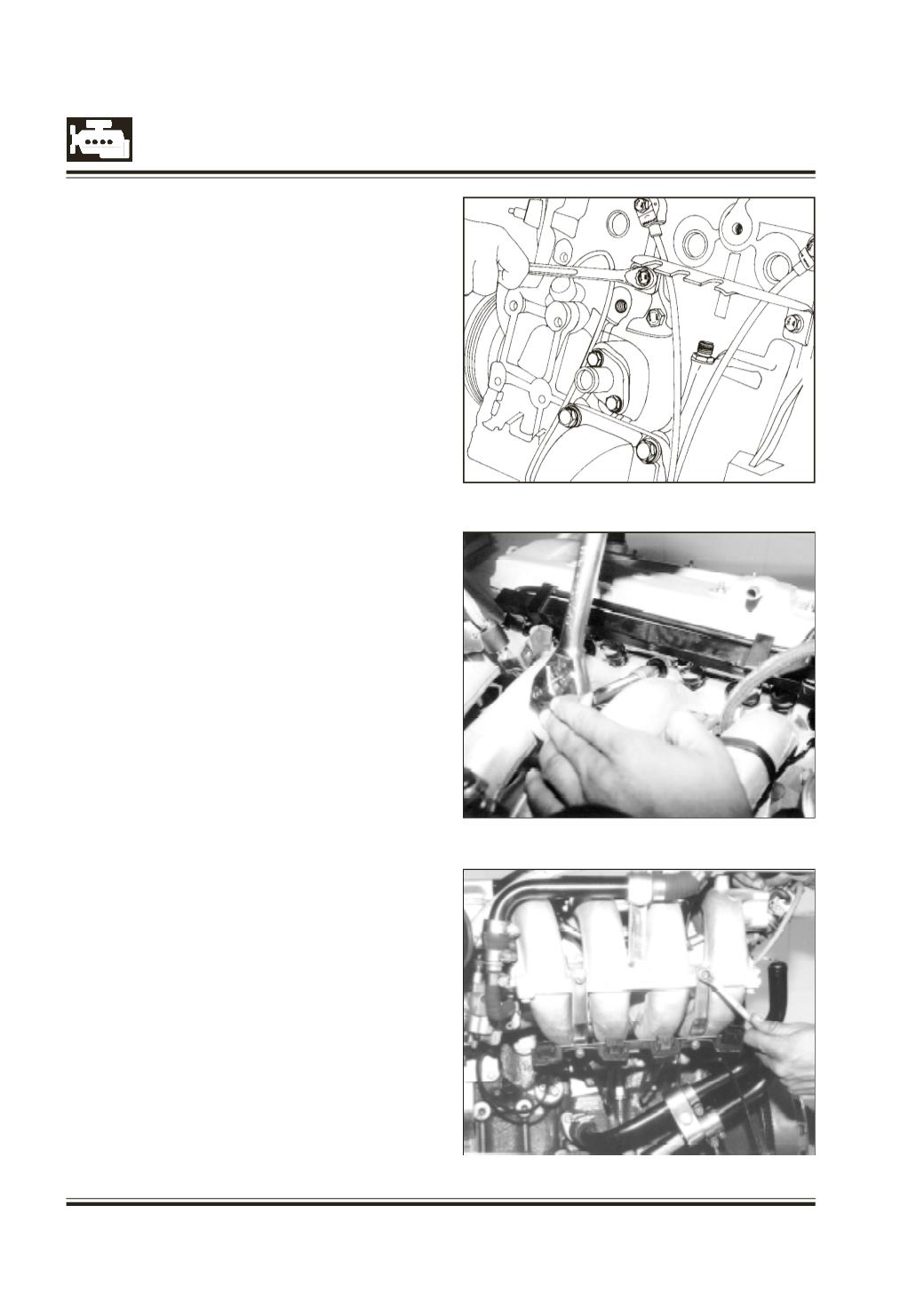

68

486 PL ENGINE

P

Fig. 166

Fig. 165

Install timing gear train cover.

Tighten cover mounting bolts.

Install inlet manifold bottom suppor t bracket.

Fig. 165

Fig. 167

Install the inlet manifold sub assy. on cylinder head

along with gasket. Fig. 166

Fit the bracket, which holds knock sensor pin

connector, speed sensor pin connector & phase

sensor pin connector, on intake manifold. Fig. 167
