PROPELLER SHAFT

2

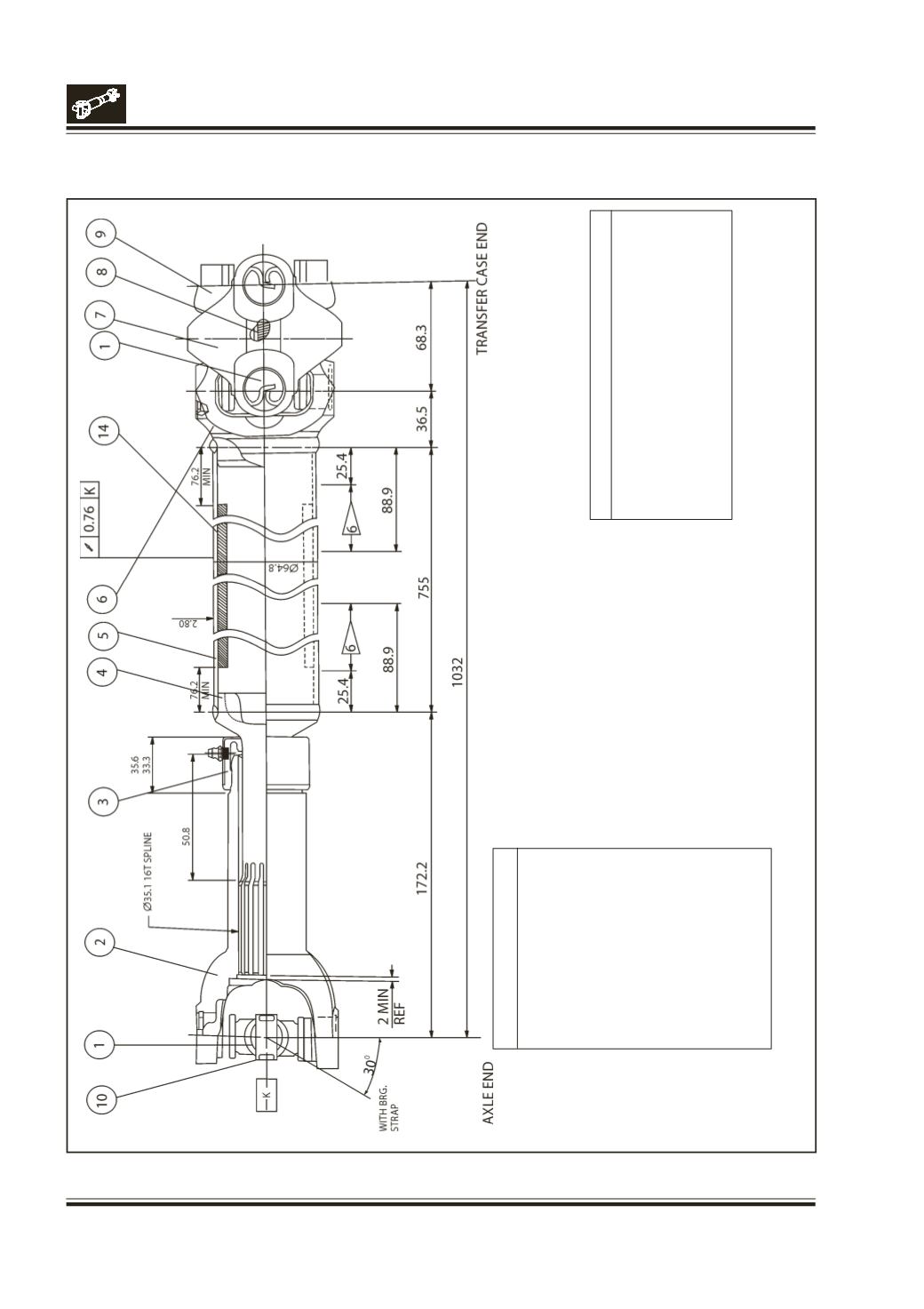

Fig. 2 : 4x4 Rear propeller shaft

CONSTRUCTION

ITEM DISCRIPTION

1

UNIVERSAL JOINT

2

SLIP YOKE ASSY.

3

DUST CAP ASSY.

4

TUBE SHAFT

5

TUBE

6

D.C TUBE YOKE

7

CENTRE YOKE

8

SPRING

9

BEARING STRAP

10 SCREWS

12 BOLTS

13 LOCK WASHER

14 DEADNER

SPECIFICATION

1 Overall Length

1071 mm

2 Closed Length

1032 mm

3 Tube shaft Length 755 mm

4 Max. Swing Dia.

100 mm
