ENGINE
42

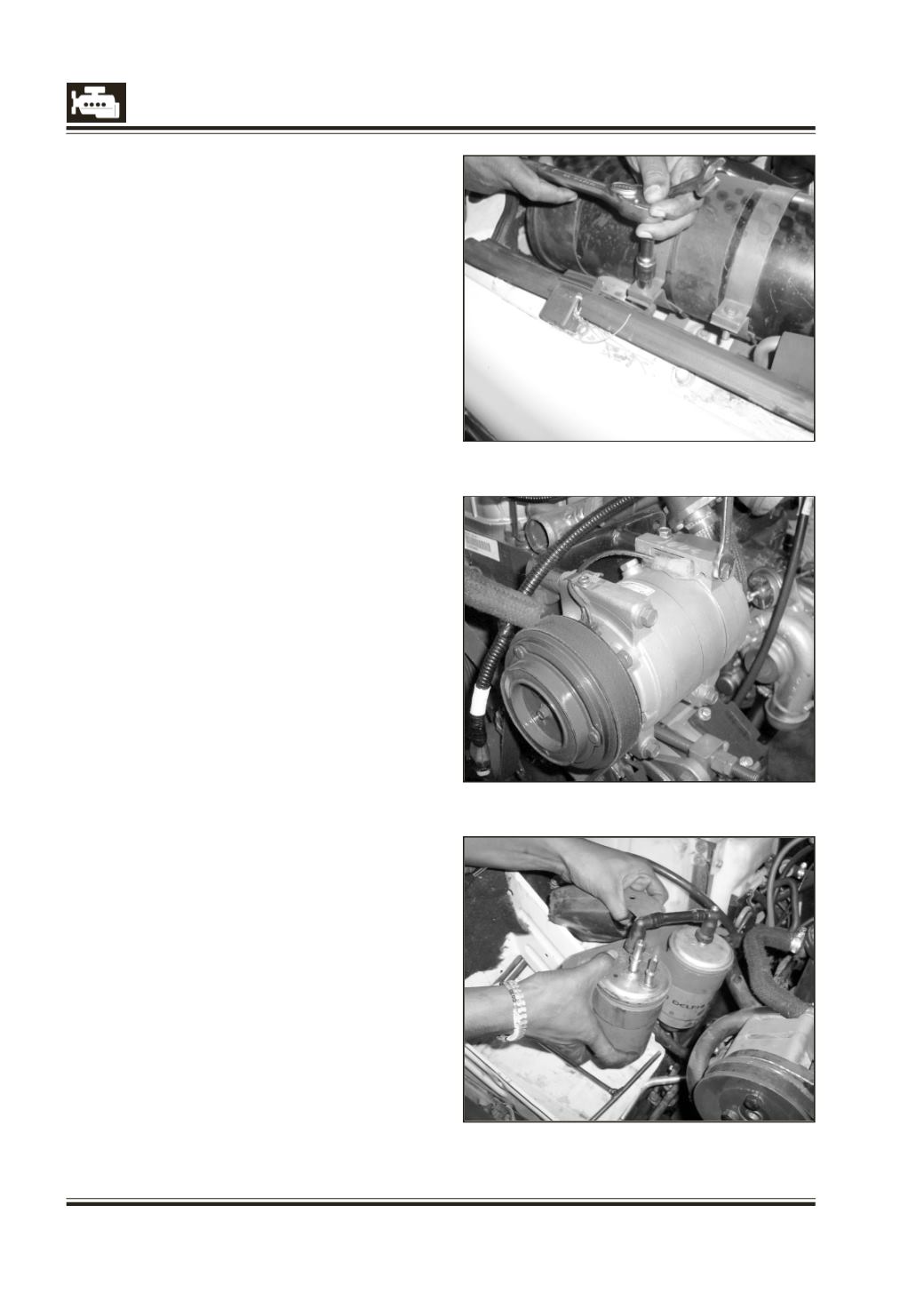

Fig. 7
Fig. 8
Fig. 9
14. Remove the following sub-assemblies:
l
Air filter (fig. 7)
l
Intercooler
l
Drive belt for A/C compressor
l
A/C compressor (fig. 8)
l
Fuel filter and Sedimenter (fig. 9)
l
In new layout the Sedimenter is located at
the rear near to fuel tank.
