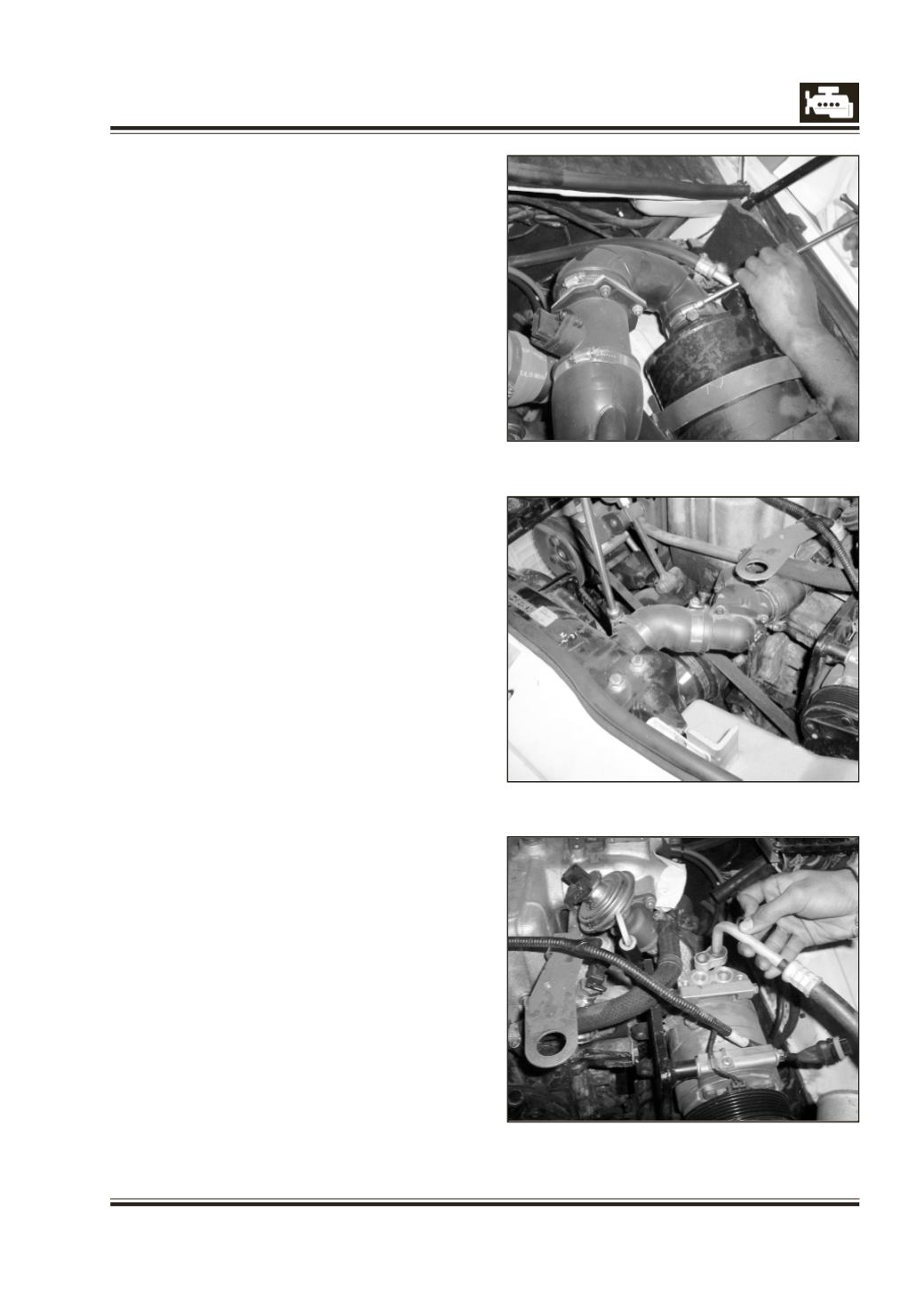

Fig. 4
Fig. 5
Fig. 6
8. Disconnect Pipelines From:
l
Air filter to Turbocharger (fig. 4)
l
Turbocharger to Intercooler
l
Intercooler to Intake manifold
l
Exhaust pipe from Exhaust system
9. Remove
radiator
and
cooling
system
connections.
l
Remove thermostat housing & Auxiliary tank
connection. (fig. 5)
10. Fuel inlet connection to Sedimenter
l
Fuel Filter to HP Pump
11. EGR connecting vacuum pipes
l
Vacuum pump to brake booster
12. Power steering pump connections
13. Extract AC refrigerant (Ref. AC section) and
remove the AC pipe lines and heater pipes (Fig.
6)
l
Cover the pipe lines openings with suitable
caps.
