ENGINE2.2LDICOR

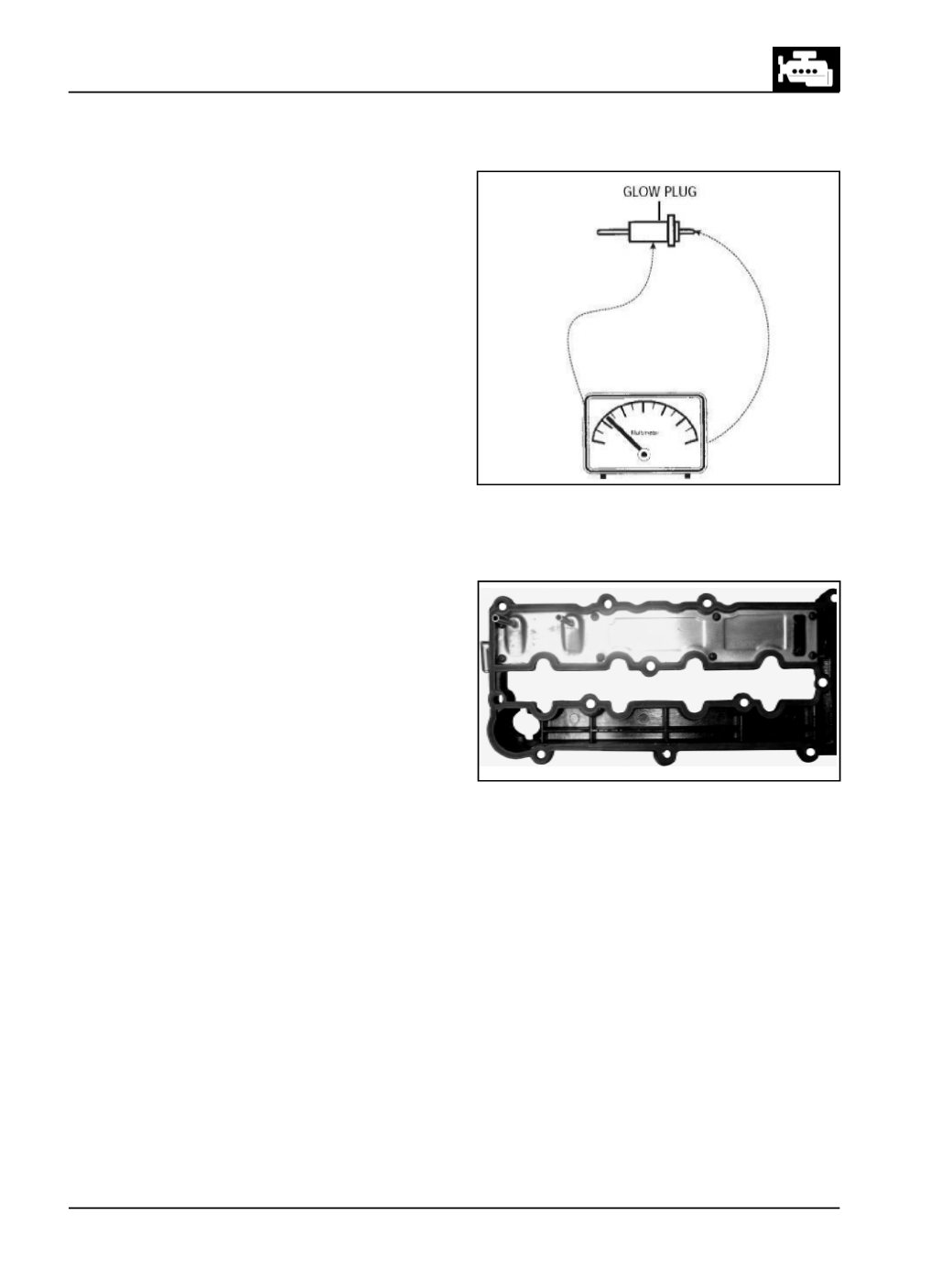

Check glow plugs for short circuits and/or for burning.
Replace them if necessary. (Fig.68)
GlowPlugs
Fig.68
Cylinder HeadCover
l Remove the baffle plate in the cylinder head cover
by removing the screws.
l Check the baffle plate gasket if it is torn/damage,
replace if necessary otherwise it might result in
high engine oil consumption. (Fig.69)
Fig.69
Assemblyof Cylinder Head
l Install ValveGuides andOil Seals
l Install valves (Inlet & Exhaust) in their respective
positions.
l Install spring seats, valve springs and valve
retainers.
l Fit valve spring compressor on cylinder head.
l Using valve spring compressor, compress the valve
springs and install valve lock halves.
l Assemble the glow plugs.
