11. REMOVAL/INSTALLATION OF WINDOW
WINDING REGULATOR
(Fig. 14, 15 & 16)
REMOVAL
l
Remove the inner trim
l
Pull out required portion of plastic membrane.
l
Remove the window glass
l
Removemounting screws/nuts of windowwinding
regulator i.e. 2 hex fl. nuts from top mounting for
front door (1 nut for rear door), 2 hex. fl. screws
from bottom mounting and 3 hex. fl. nuts from
motor mounting.
l
Remove the window winding regulator carefully.
INSTALLATION
l
Locate window regulator in the door in proper
position.
l
Fit and tighten the window regulator mounting
screws and nuts i.e. 2 hex. fl. nuts (M6) and
washers (A6.4) on the top mounting for front door
(1 nut and washer for rear door), 2 hex. fl. screws
(M6x12) for the bottom mounting and 3 hex fl.
nuts (M6) for motor mounting.
l
Fit the window glass. Ensure correct position of
the glass. If not loosen the top mounting nuts
and bottom mounting screws of regulator and
adjust regulator for proper position of the glass.
l
Tighten the regulator mounting nuts/screws.
l
Fix the plastic membrane
l
Fit the inner trim.

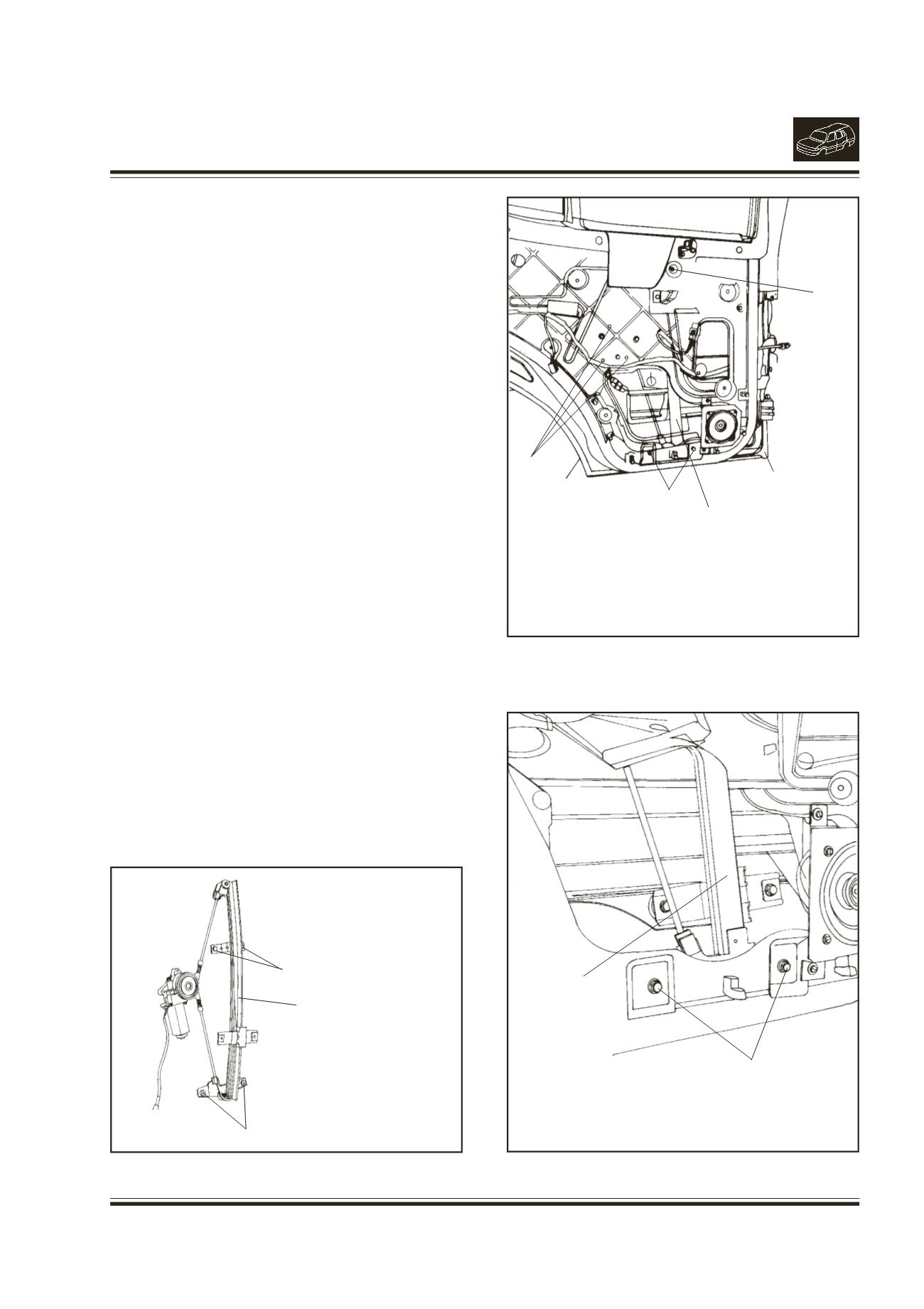

Fig. 14.
