ABS
30
ANTI-LOCK BRAKES
Fig. 28
Fig. 26

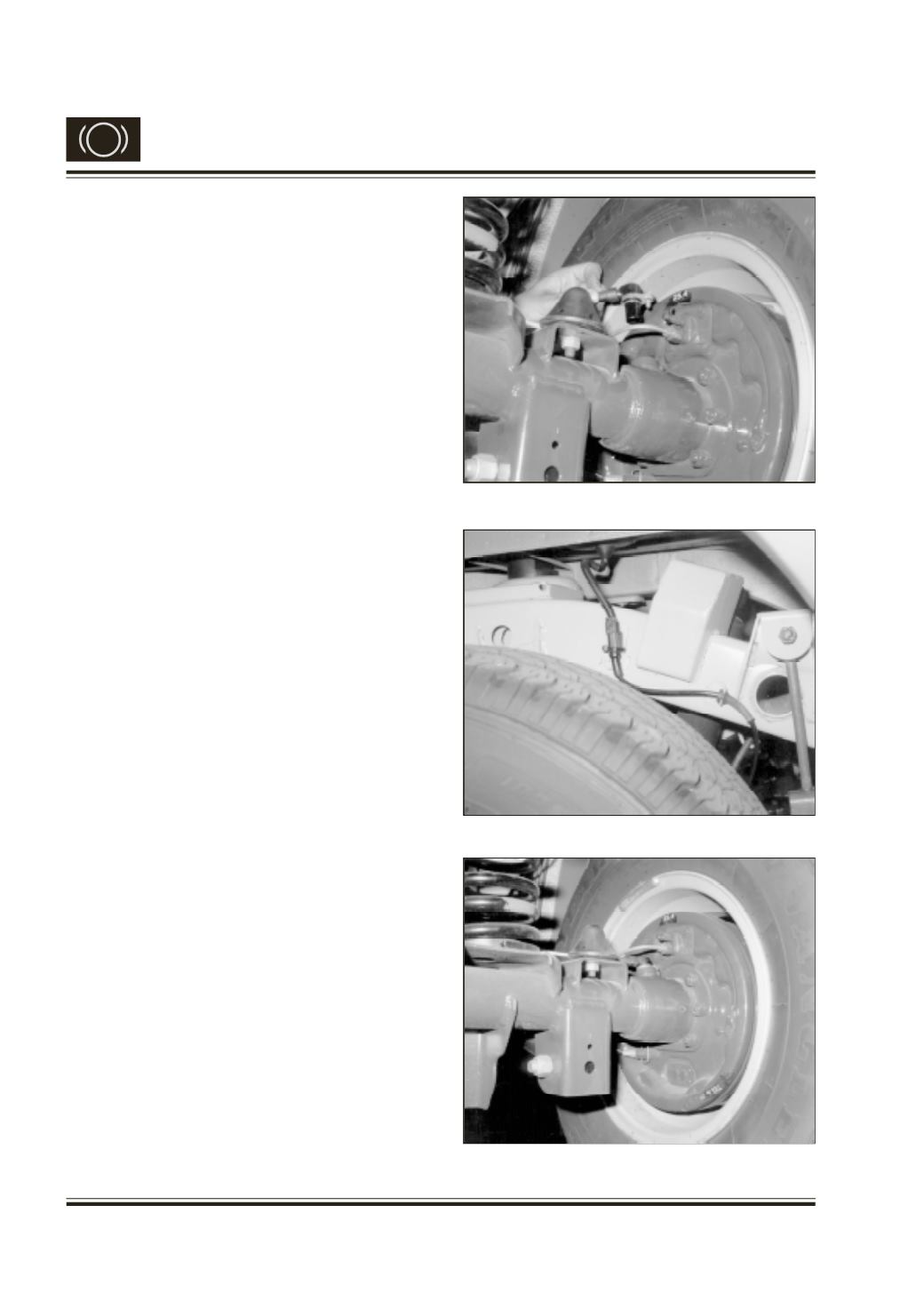

Installation of Rear wheel speed sensor
1.
Clean speed sensor and it’s mounting surface.
2.
Mount the sensor onto the rear axle tube and
tighten the bolt to the specified torque.
(Fig. 28)
3.
Anchor the sensor cable on to the chassis long
member.
4.
Install the wiring harness connector with wheel
speed sensor cable. Ensure for 'O' ring on
sensor.
5.
Make sure that the sensor cable connector is
fully seated and locked into vehicle wiring
harness connector.
6.
Road test vehicle to ensure proper operation
of the basic and ABS brake system.
Fig. 27
