SAFARI

ABS

ANTI-LOCK BRAKES

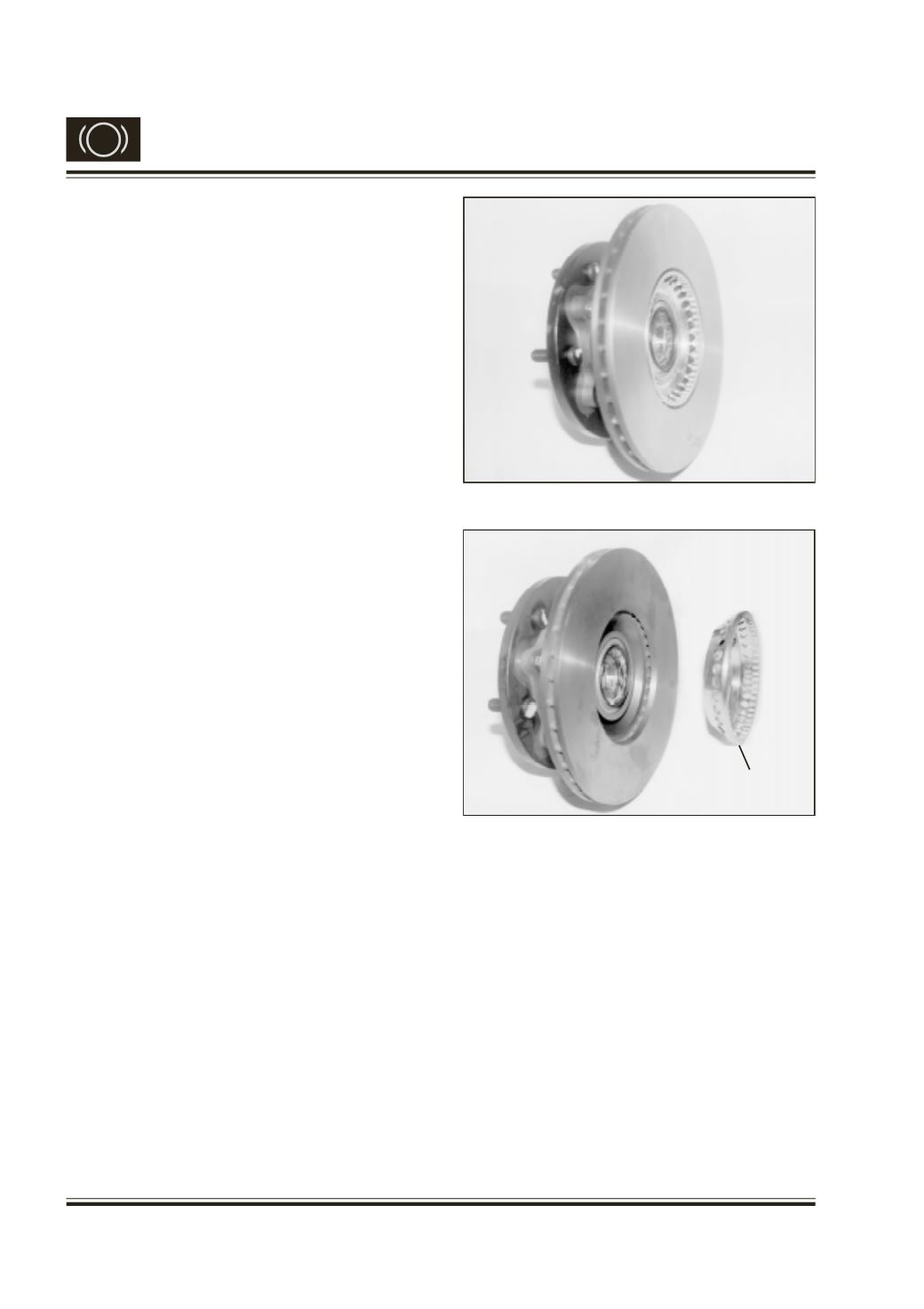

Fig. 23 ABS Front Hub

Fig. 24 ABS Toner Ring Front Hub

REMOVAL / INSTALLATION OF TONER RING

FRONT HUB

FRONT HUB ASSEMBLYWITH ABSTONER RING

In addition to the regular axles ABS toner ring is

fitted on the wheel hub. While the hub seal is fitted

on the inner dia, the toner ring is pressed to the

outer dia of the hub and Adapter sensor (bushing)

is fitted on the Knuckle assy. respectively.

Removal of the ABS Toner ring from the wheel

hub - (Wheel hub removal from vehicle)

Remove the five bolts and lock washers that secure

the hub and the rotor (brake disc).

Holding the rotor (brake disc), press the hub out

with the help of a dolly or seal installer. Once the

hub moves down, the toner ring comes out of the

hub, becomes free and remains on the rotor (brake

disc), which can be removed by hand.

Assembly of the ABS Toner ring on the wheel

hub -

The toner ring is press fit on the hub outer pressed

from the rotor end (brake disc end) and occupies

the cavity on the rotor (brake disc). The toner ring

fitment is the last operation after pressing the hub

seal at the rotor (brake disc) end. It will require a

force of 3200 kgs minimum to seat the toner ring

fully inside the cavity.

Toner Ring
