SAFARI

REAR AXLE

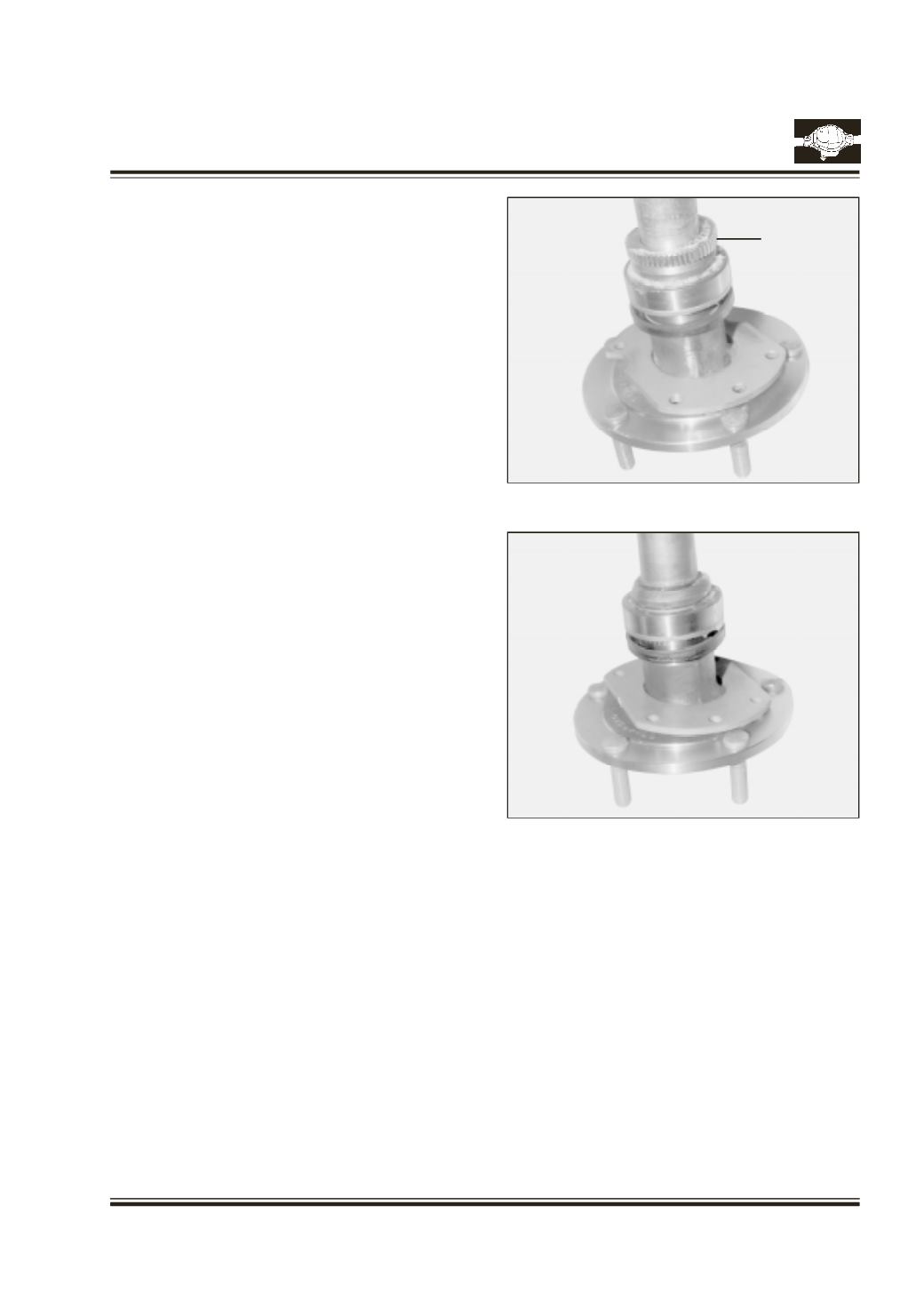

ABS Axle Shaft with Toner Ring

Regular Axle Shaft

REMOVAL & INSTALLATION OF TONER

FOR REAR AXLE

MODEL 44 ANTI LOCK BRAKING SYSTEM

In addition to the regular axles ABS toner ring is

fitted on the axle shaft next to the retainer ring and

Adapter sensor (bushing) is fitted on the tube assy.

respectively.

Removal of the ABS Toner ring from the axle shaft

–

Note :

Care should be taken while breaking the

retainer ring that the chisel should not hit or damage

the toner ring.

The toner ring is to be removed along with the axle

shaft bearing from the axle shaft with the help of

axle shaft bearing-puller after drilling a hole and

breaking of the retainer ring.

Assembly of the ABS Toner ring on the axle shaft

–

The toner ring is press fit on the axle shaft. The

toner ring is pressed after pressing of the retainer

ring on the shaft. While pressing the ring inspection

should be done for any damage to the teeth’s of the

toner ring. It would require a force of 3200 kgs

minimum to seat the toner ring against the retainer

ring.

ABS Toner

Ring
