SAFARI

REAR AXLE

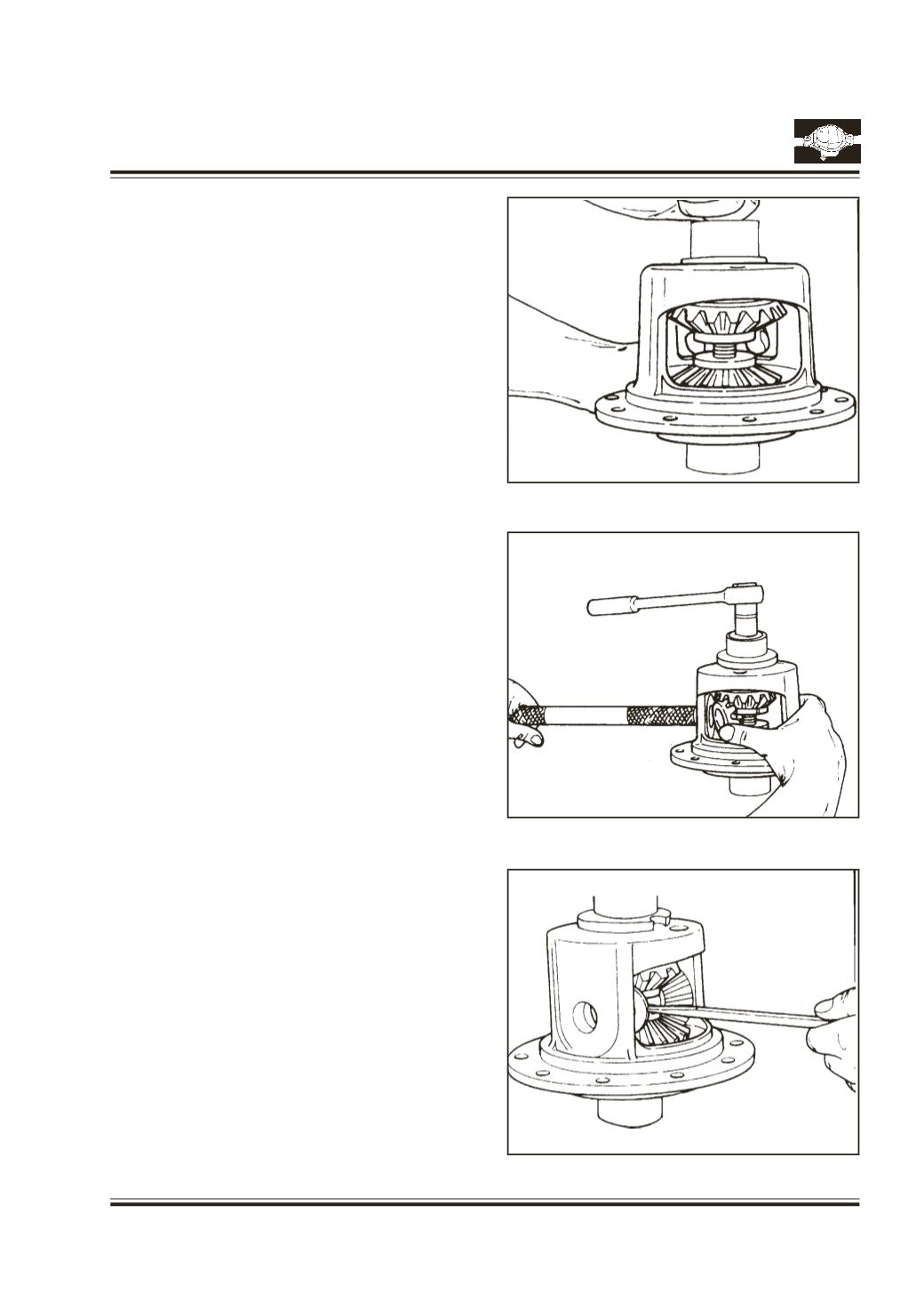

Fig. 53

Fig. 54

Fig. 55

Hold the clutch pack in position and insert the threaded

adapter of Track lock tool into top side gear.

Insert forcing screw of Track lock tool and tighten to

hold both clutch packs in position.

Fig. 53

Install case into the axle shaft by aligning the splines

of the side gear with those of the shafts.

Loosen forcing screw slightly and assemble both

pinion mate gears.

Fig. 54

Hold gears in position by hand and insert turning

bar into case.

Pull on bar to rotate case allowing gears to turn.

Note:

Ensure that the holes of the pinion mate gears

are in alignment with holes of the case.

Prelubricate spherical washers. Tighten screw of

Track lock tool to collapse the Belleville’ plates, as-

semble spherical washers into case.

Fig. 55

Caution:

Ensure the holes of the washers and gears

are lined up exactly with those of the case.
