SAFARI

REAR AXLE

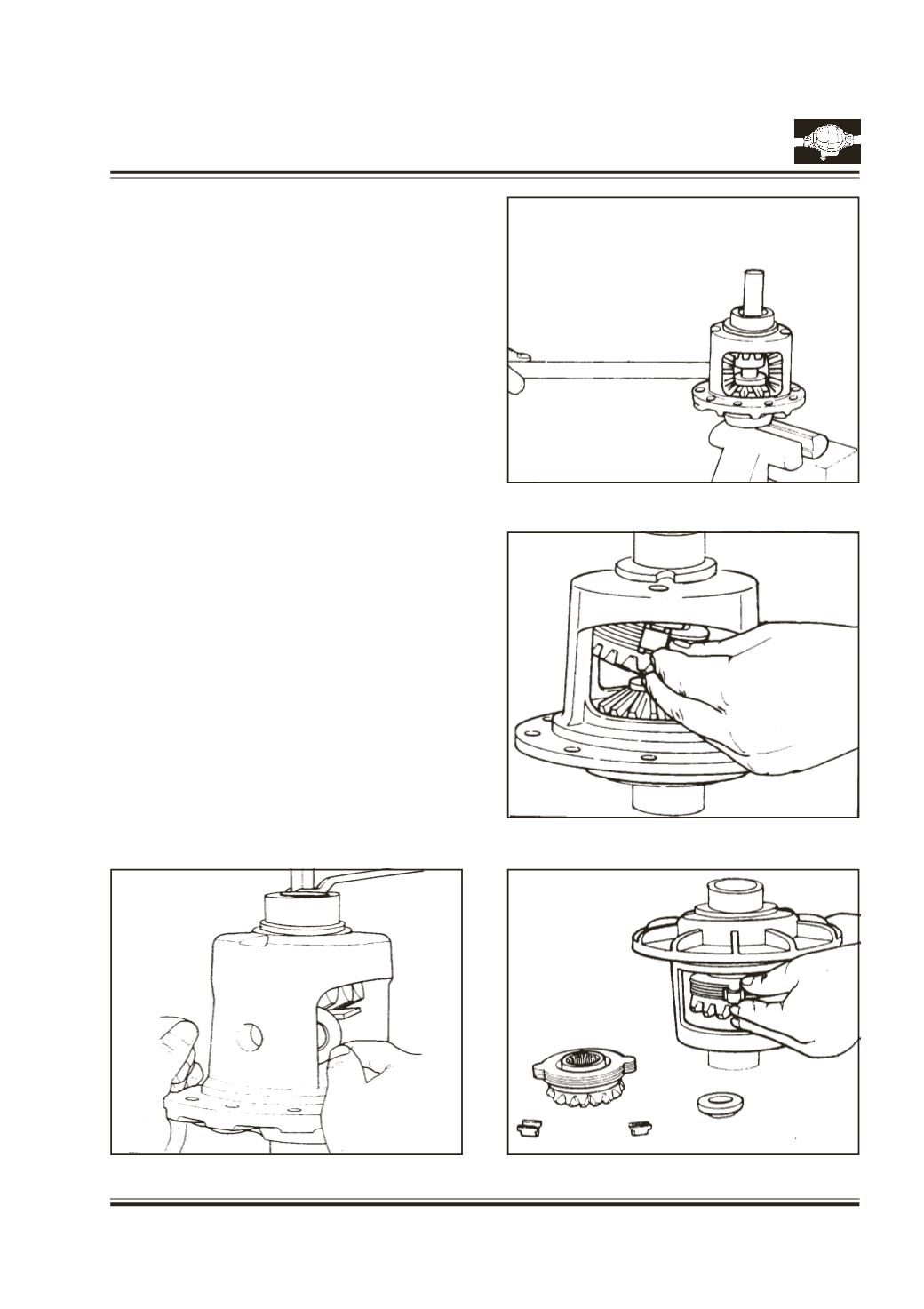

Torque driving bar of track lock tool to collapse the

Belleville plates.

Remove both pinion mate spherical washer.

Use a shim stock of 0.76 mm thickness or an

equivalent tool to push out the spherical washers.

Fig. 22

Relieve the tension of the Belleville plates by

loosening the driving bar.

Suitably rotate the pinion mate gears and take them

out.

Fig. 23

Hold top clutch pack with one hand remove special

tools.

Remove top side gear and clutch pack.

Fig. 24

Note:

Keep the pack of plates and discs intact in

exactly the same position.

Remove the case from the axle shaft. Turn case

with the ring gear side up and Remove step plate,

side gear and clutch pack.

Fig. 25

Remove the retainer clip and allow separation of

the plates and discs.

Fig. 22

Fig. 25

Fig. 24

Fig. 23
