SAFARI

FRONT AXLE - 4

7. The clip doesn't need to be removed for normal

servicing. However, if damaged, remove it using

thumbnail force only to avoid stretching or distorting

it. Donot remove thebrakeband for normal servicing.

8. Remove the large snap ring from the outer clutch

housing.

9. Remove the steel inner cage (21) by pressing it over

the tang of the outer cage (20) (in the window). Lift

the inner cage straight out don't tilt it.

10. Remove the plastic outer cage by prying one lug out

of the large groove in the outer clutch housing. Hold

the lug and go on to the next one. It is easiest to start

with the lugs opposite the one that fits into the win

dow of the steel inner cage.

11. Invert the entire hub and slide the cam & follower

assembly out of the outer clutch housing.

4.2 Inspection

Examine the protective end cap (2) for cracks, O - ring (3)

Brake band (24) for damage or distortion.

Also, inspect the teeth on the cam follower, clutch gear

and outer clutch housing for wear or damage.

Not all components are replaceable separately.

Refer Page No. 52 for list of serviceable parts.

2 3

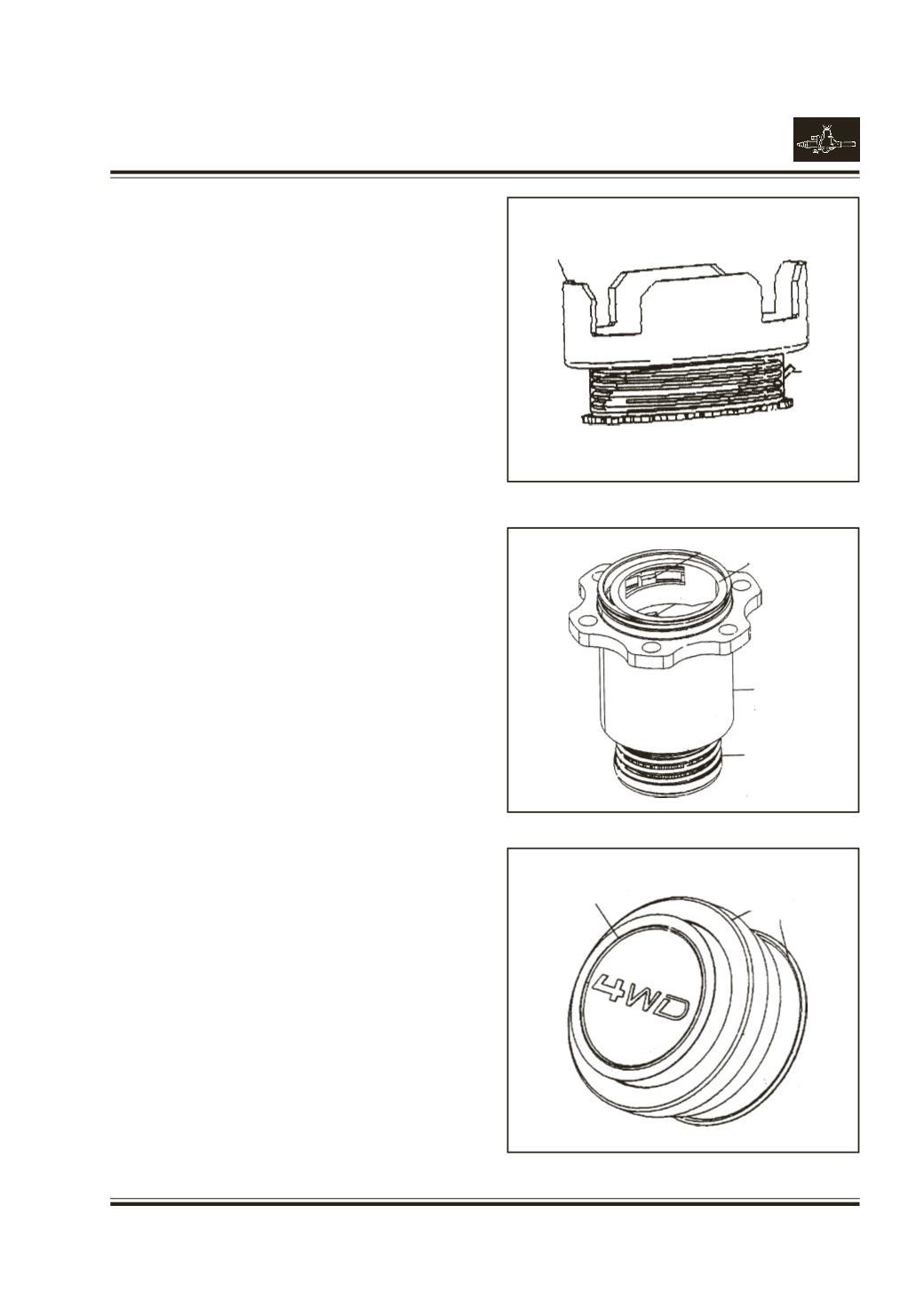

Fig. 7

Fig. 8

Fig. 9
