9

FRONT AXLE - 4

X

2

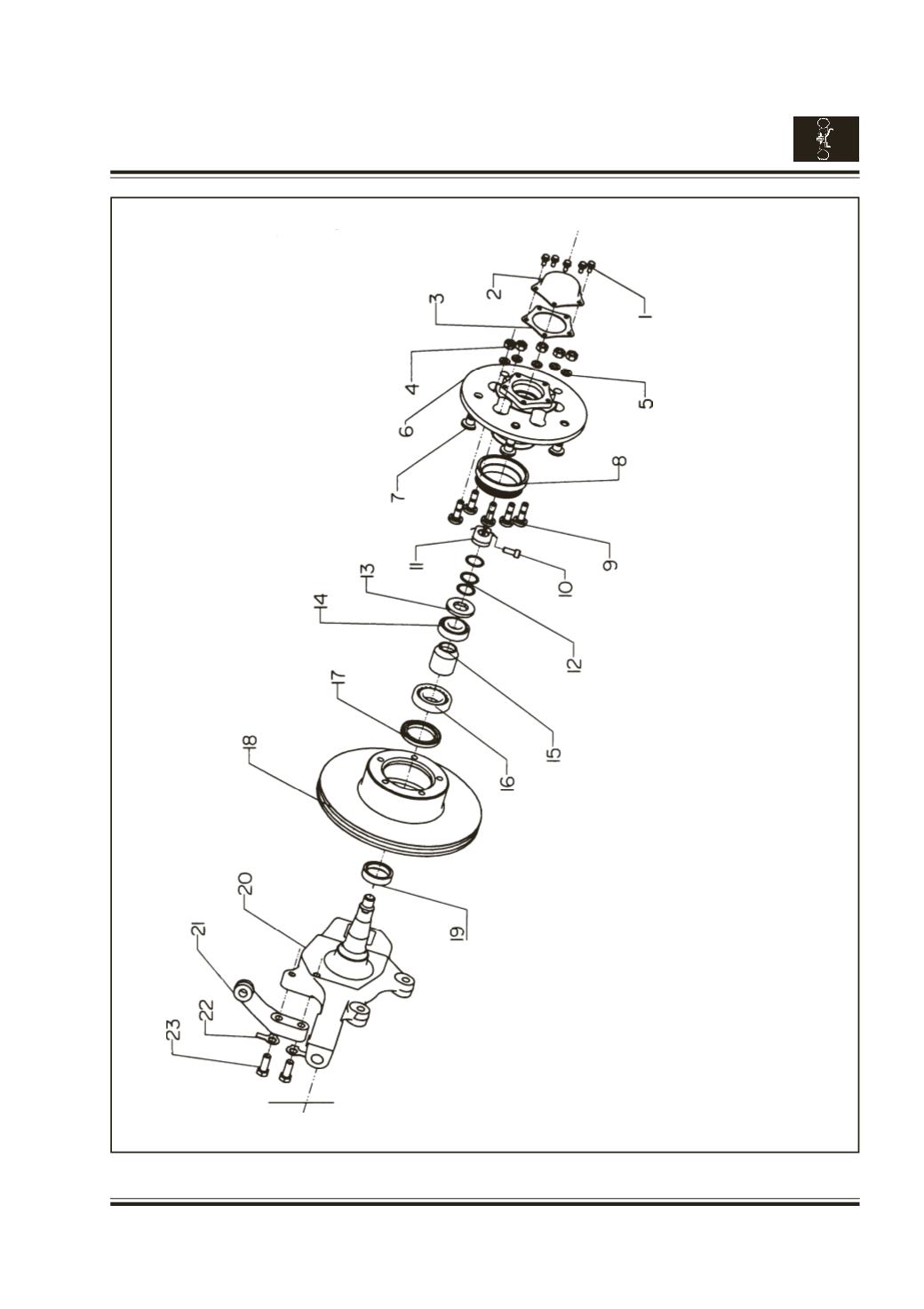

Fig. 1

1 Hex. fl. screw m6x12

2 Hub Cover

3 Gasket

4 Hex. nut

5 Spring washer

6 Hub Front (ABS)

7 Wheel mounting bolt

8 Toner ring (F/wheel) ABS

9 Bolt (Brake Disc)

10 Cap screw M8x20

11 Split nut

12 Shim

13 Thrust washer

14 Taper roller bearing (Outer)

15 Spacer tube

16 Taper roller bearing (inner)

17 Oil Seal

18 Brake disc ventilated 4x2

19 Seal race

20 Stub axle

21 Tie Rod arm

22 Tab washer

23 Bolt (steering arm mounting)

Front Axle (4x2)(Tata Motors) Exploded View
