BODY

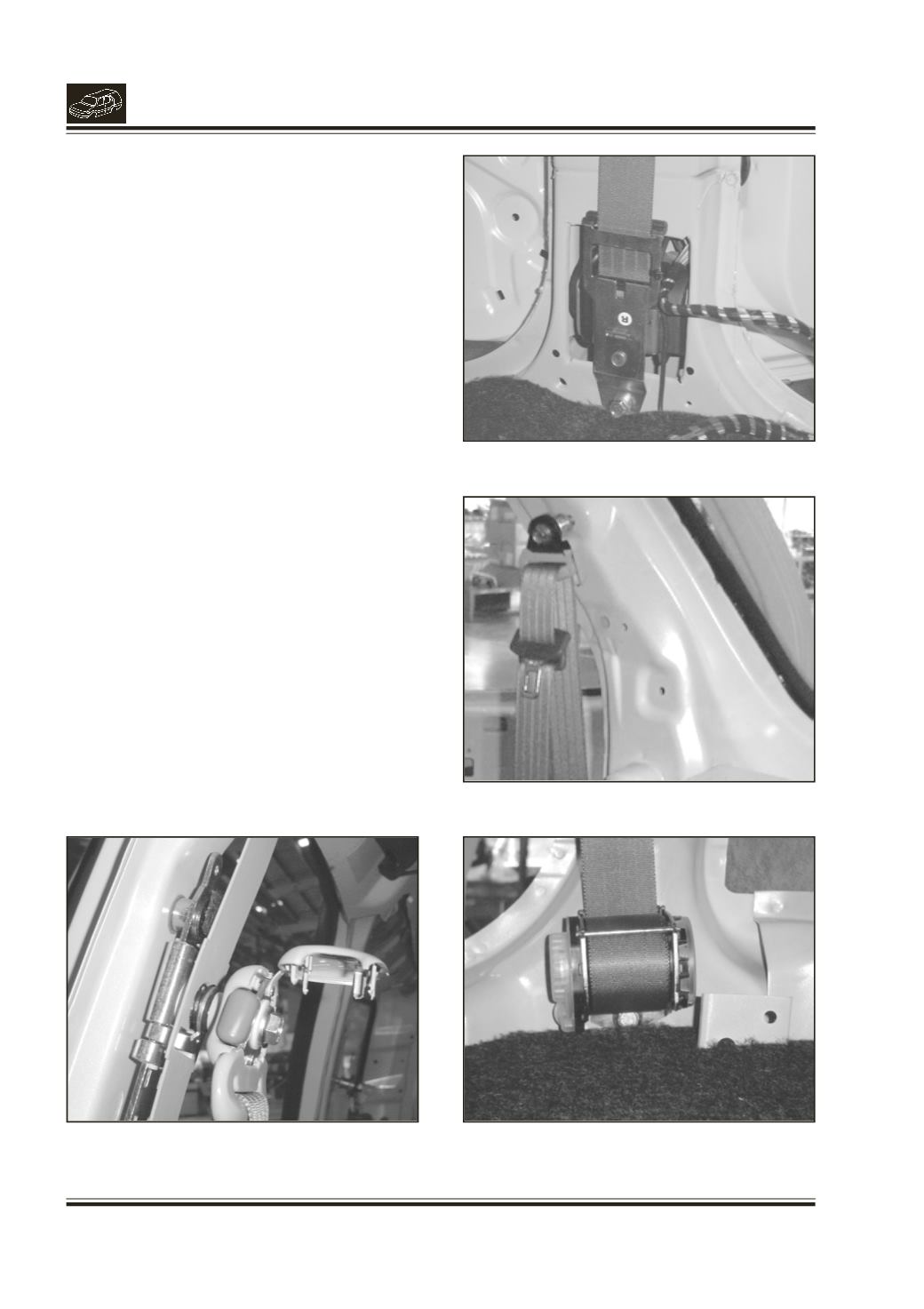

Fig. 25b Front Seat Belt Lower Anchor Bolt
Fig. 25c Rear Seat Belt Upper Anchor Bolt
Fig. 25d Rear Seat Belt Lower Anchor Bolt
Fig. 25a Front Seat Belt Upper Anchor Bolt
19. PROCEDURE FOR REMOVAL / ASSEMBLY OF
SEAT BELT
REMOVAL
1.
Remove screw caps at roof AC (if fitted) cover
trims; remove all 10 screws of cover trim. (5
screws for each cover trim). Remove LH & RH cover
trims.
2.
Remove front & rear door primary rubber moulds.
3.
Unscrew upper and lower anchor bolt of seat belt.
Fig. 25a, 25b, 25c & 25d
4.
Remove 'B' pillar upper and lower trims.
5.
Remove ELR assembly if required.
ASSEMBLY
1.
Insert the wiring harness connectors in 'B' pillar
properly.
2.
Clamp ELR assy. in body in the 'B' pillar lower side
opening.
3.
Take belt through the lower 'B' pillar slit' fit upper
& lower 'B' pillars trim together on the 'B' pilar.
4.
Clamp upper lower anchor bolts.
5.
Fit the cover trims with 5 screws LH & RH each.
6.
Fit primary rubber moulds.
