1.

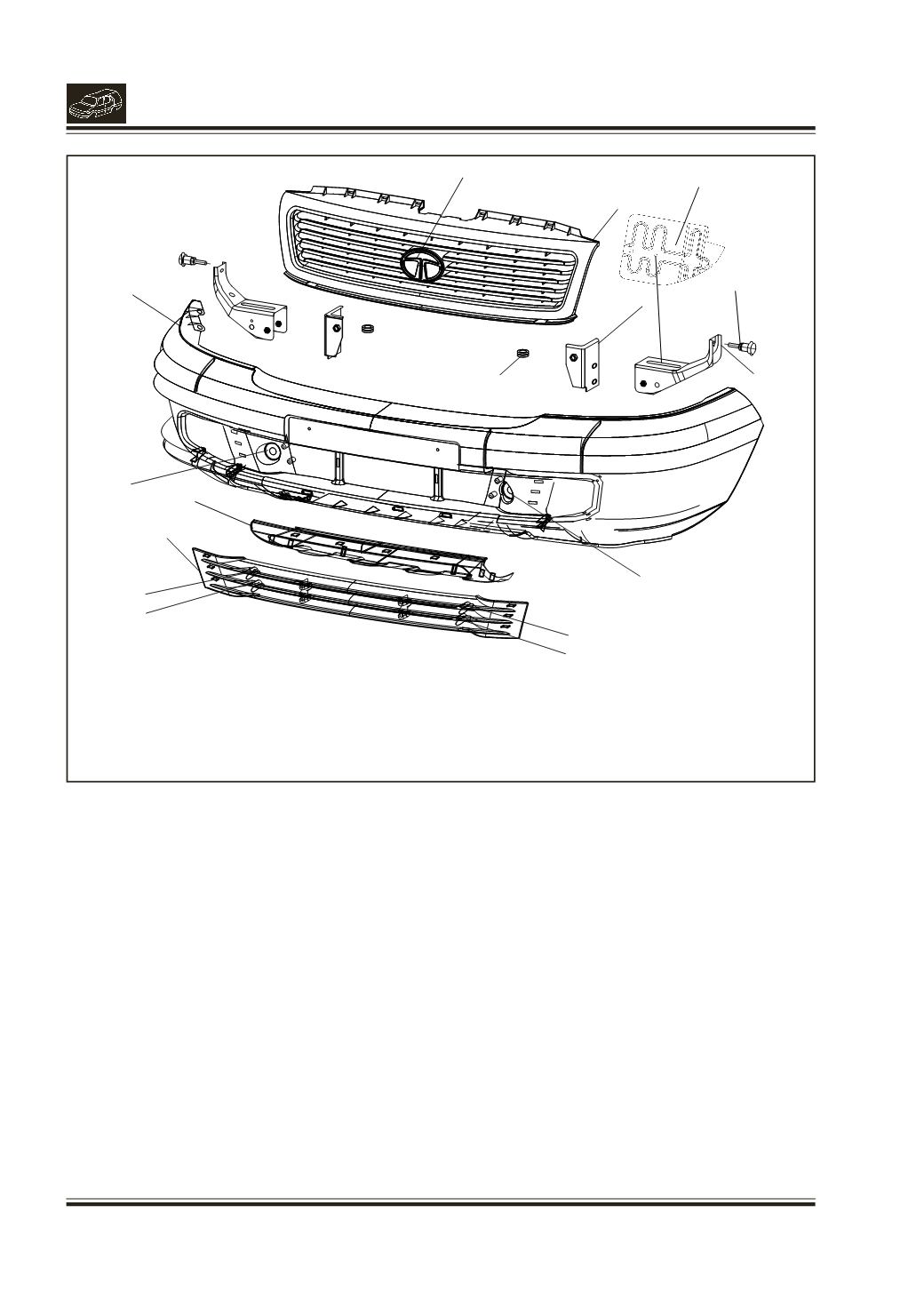

Front Bumper
2.
Sump Guard
3.
Front Bumper Grill
4.
Assy. Bkt. side for bumper mtg LH/RH
5.
Assy. Bkt. for bumper mtg LH/RH
1
8
9
7
10
6
5
4
3
2
e
f
a
b
6.
Adjusting screws
7.
Front Grill
8.
Bush Grill mtg.
9.
T Emblem
10.
Mud Cover
c
d
15. REMOVAL / INSTALLATION OF FRONT BUMPER
(Fig. 21)
REMOVAL
l
Remove the mud cover over side bracket.
l
Remove the electrical connections for fog lamps.
l
Remove the bumper grill by unscrewing screws
No. (a) to (d) Then unscrew the to bumper
mounting bolts (e) & (f ) after properlly supporting
the bumper and then remove the crash guard.
l
Pull out the bumper.
INSTALLATION
l
Support the bumper and connect the electric
connections for fog lamps.
l
Align both ends of front bumper with two welded
pins on either side at fender and top flange
(middle portion in to the slot of front grill).
l
Loosely mount the front bumper on side mounting
screws. Fix 2 hex. fl bolts (M10x25) and washer
(A10.5) at the both sides of front number plate (at
location e, f ).
l
Adjust side gap by tightening/loosening the
adjusting screws.
l
Adjust the vertical gap by moving the bumper
manually.
l
Tighten all fasteners once the bumper gap is set
and close the covers at front side.
Assemble the bumper grill on the bumper by four
screws No. (a), (b), (c) & (d).
l
Fit the mud cover over the side bracket with the
help of a hex. fl. bolt (M8x20) and a button.
