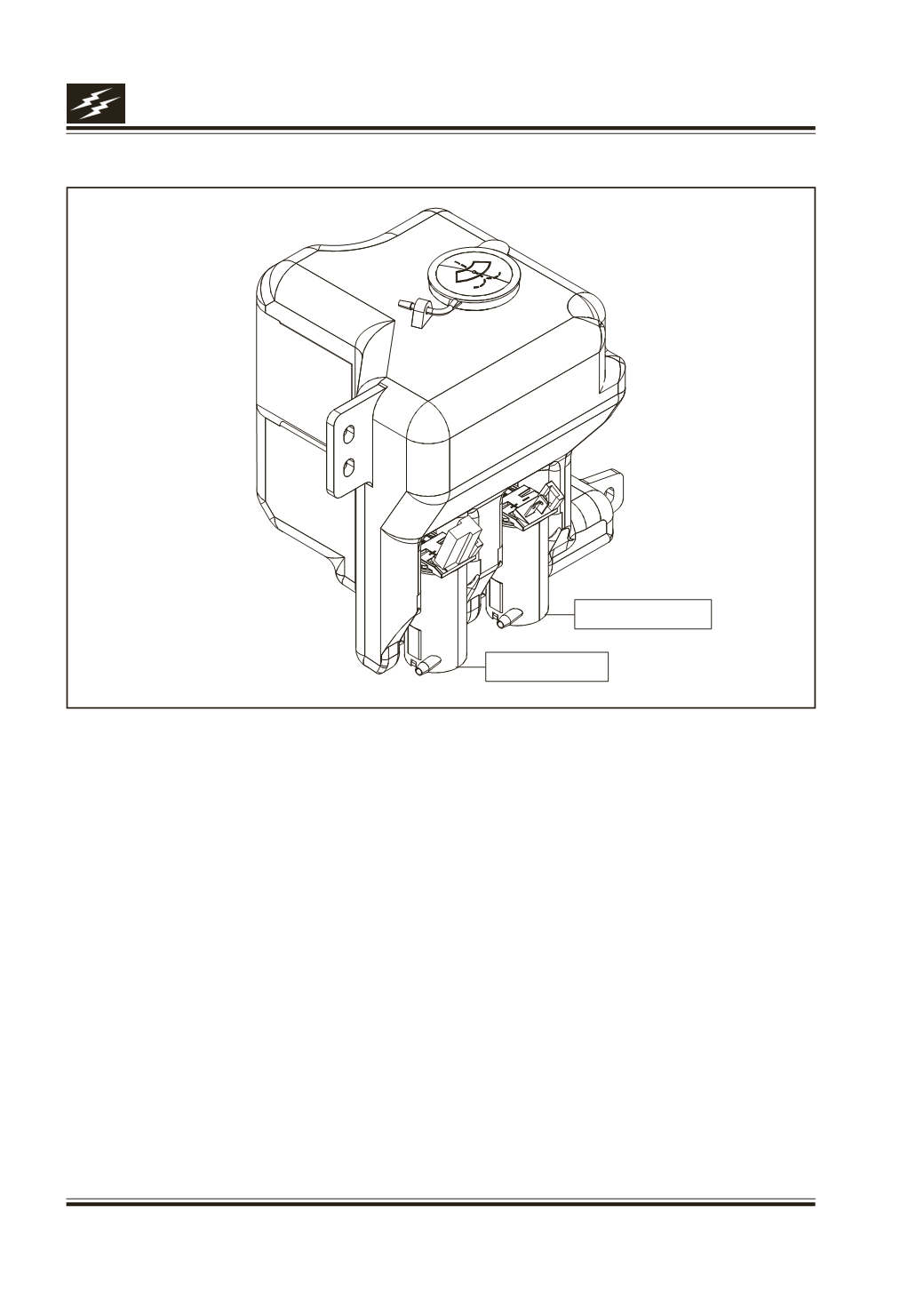

Windscreen Wash Bottle Fig. 60
Removal
1. Disconnect the battery negative cable
2. Disconnect the windscreen washer tube from the
bottle.
Disconnect the connectors from windscreen washer
pumps and takeout the front & rearwashpumps fromthe
wash bottle.
4. Unscrewthebolts holding thewasher bottleand take
out the bottle. Fig. 60
Installation
Follow the above steps in the reverse sequence.
Inspection
Connect the battery positive and negative terminals to
washermotor positive andnegative terminals and check
if it is working properly.
Check the bottle for cracks and leakages if any.
Refer circuit diagram section for Windscreen washer.
